COXREELS

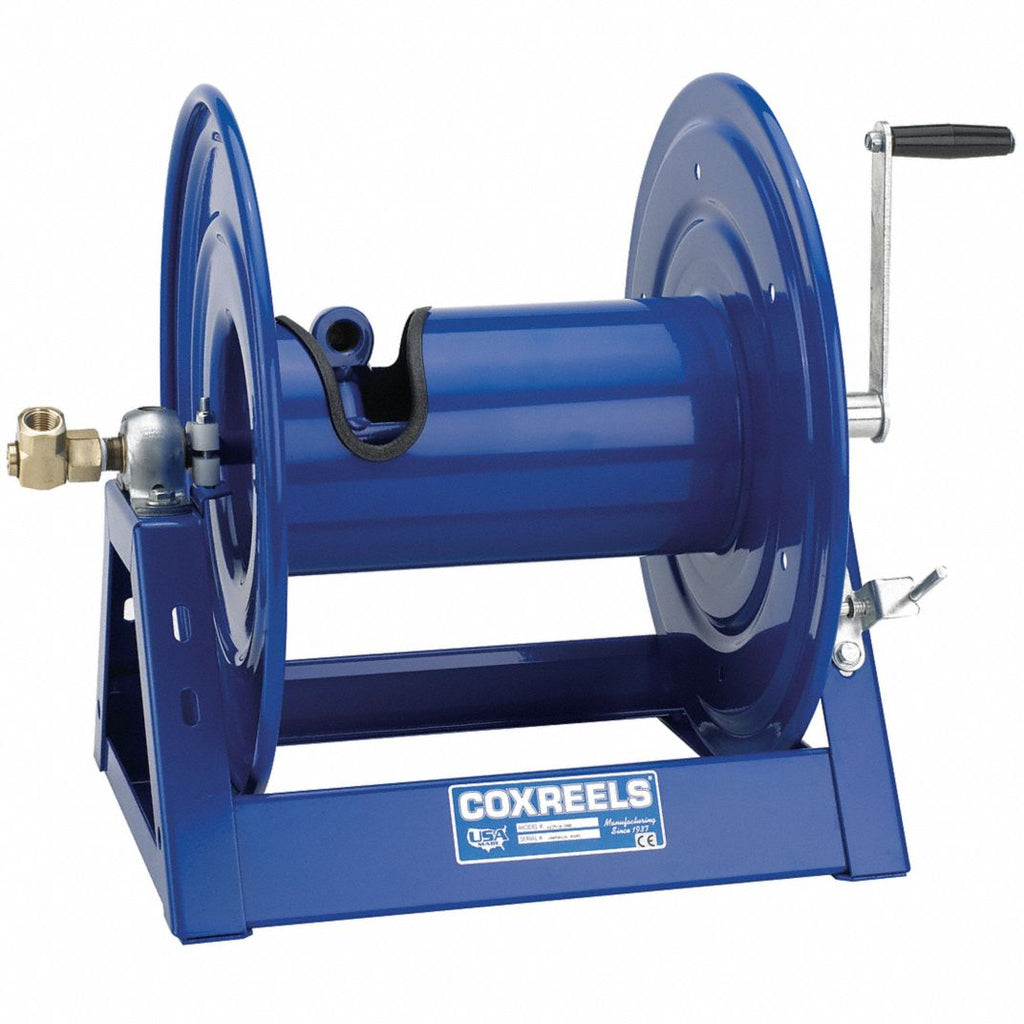

Hose Reel, Hand Crank, 3/4" IDx100 ft

Hose Reel, Hand Crank, 3/4" IDx100 ft

$503.09
$503.09 $503.09
Sale Sold out
Shipping calculated at checkout.

Hand Crank Hose Reel, Drive Type Hand, Overall Height 18 3/4 in, Overall Length 17 5/8 in, Overall Width 26 3/4 in


Specifications

  • Mfr #: 1125-5-100
  • Hose Included: No
  • Hose Length: 100 ft
  • Hose Inside Dia.: 3/4 in
  • Reel Inlet: 3/4 in (F)NPT
  • Hose Outlet: 3/4 in (M)NPT
  • Finish: Powder Coated
  • Duty Rating: Heavy Duty
  • Drive Type: Hand
  • Item: Hand Crank Hose Reel
  • Housing Material: Steel
  • Bearings: Permanently Lubricated
  • HP: None
  • Swivel Material: Brass
  • Hose Ends: 3/4 in (M)NPT
  • Max. Temp. Rating: 275 Degrees F
  • Application: For Lawn Care, Pest Control, Grounds Maintenance, Pressure Washing, Steam Cleaning, Spraying operations, washdown, fire protection, water discharge, can be mounted on stationary and mobile units.
  • Mounting: Bench, Floor, Truck, Wall
  • Max. Pressure Rating: 3000 psi
  • Seal Type: Nitrile
  • Color: Blue
  • Overall Length: 17 5/8 in
  • Hose Outside Dia.: 1 1/4 in
  • Overall Width: 26 3/4 in
  • Overall Height: 18 3/4 in
  • Includes: Locking Pin
  • Swivel Outlet Gender: Female
  • Swivel Outlet Type: NPT
  • Swivel Outlet Size: 3/4 in
  • Handle Length: 3 1/2 in
  • Reel Color: Blue
  • Hose Reel Primary Application: Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
  • Reel Diameter: 6 1/4 in
  • For Dual Hose: No
  • Enclosed: No
  • Hose Capacity: 100 ft (3/4 in I.D.)
  • Maximum Operating Pressure: 3,000 psi
  • Mounting Hole Center to Center Width: 15 3/8 in
  • Swivel Outlet Thread Size: 3/4 in
  • Swivel Inlet Thread Size: 3/4 in
  • Includes Hose: No
  • Weight: 42 lb
  • Mounting Hole Center to Center Height: 10 in
  • Bearing Construction: Permanently Lubricated
  • Seal Material: Nitrile
  • Mount Base Width: 17 3/8 in
  • Features: "A" Frame, CNC Spun Disc, Heavy Duty Steel Construction, Outlet Riser
  • Reel Material: Steel
  • Base Motion Type: Stationary
  • Hose Reel Type: Wall Mount Hose Reel
  • Swivel Inlet Size: 3/4 in
  • Number of Mount Holes: 6
  • Swivel Inlet Type: NPT
  • Minimum Operating Temperature: -40 Degrees F
  • Fasteners Included: No
  • Includes Gooseneck: Yes
  • Overall Dimensions: 17 5/8 in L x 17 3/8 in W x 18 3/4 in H
  • Reel Finish: Powder Coated
  • Mount Base Height: 15 3/8 in
  • Reel Width: 12 in
  • Mount Hole Diameter: 1/2 in
  • Standards: CE
  • Includes Leader Hose: No
  • Maximum Operating Temperature: 250 Degrees F
  • Swivel Inlet Gender: Female
