DAYTON

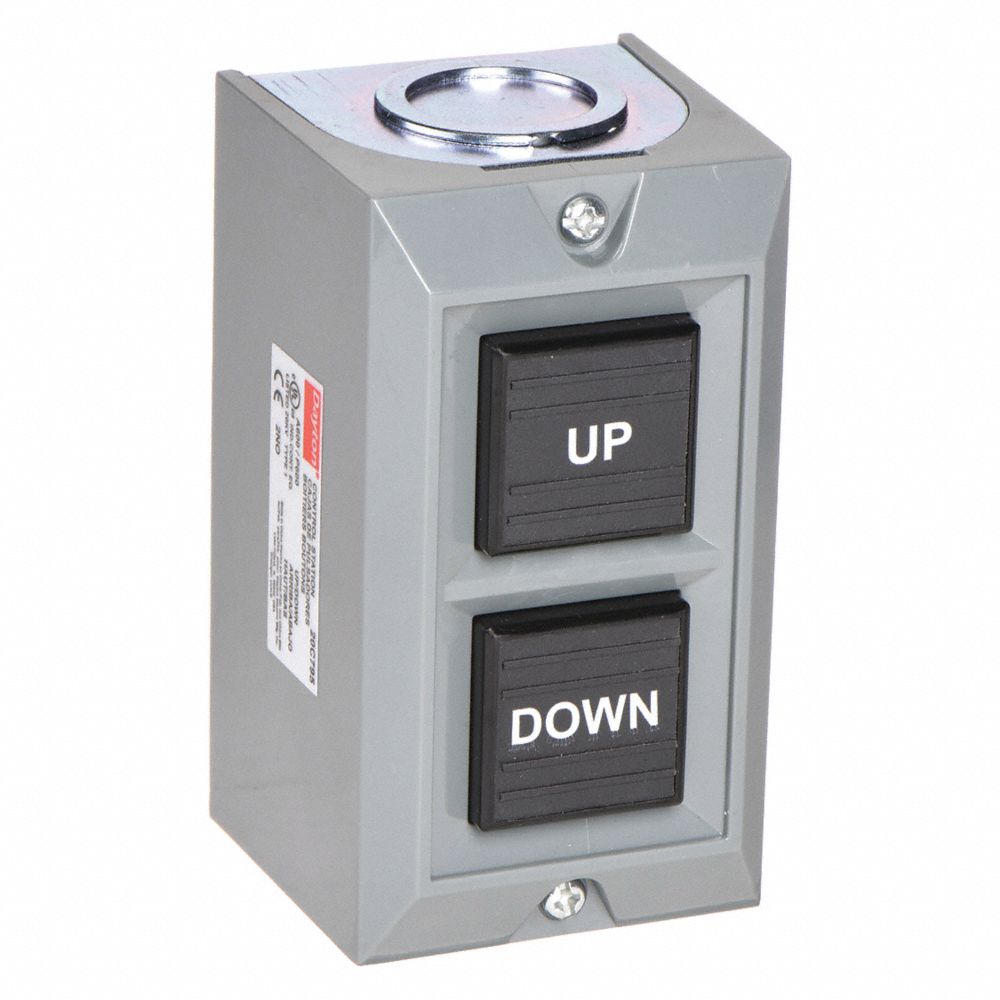

Push Button Control Station, Up/Down, 25mm
Push Button Control Station, Up/Down, 25mm
Couldn't load pickup availability
Push Button Control Station, Number of Operators 2, Size 25 mm, Legend Up/Down, Type of Operator Push Button/Push Button, Action Momentary / Momentary, Operator Color Black/Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 1, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600/P600, IP Rating 40, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 3.69 in, Depth 2.06 in, Head Material Plastic, Enclosure Material Glass Filled Polyester
Specifications
- Mfr #: 20C795
- Item: Push Button Control Station
- Contact Form: 2NO
- Legend: Up/Down
- Type of Operator: Push Button/Push Button
- Number of Operators: 2
- NEMA Rating: 1
- Size: 25 mm
- Standards: CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1,EN/IEC 60947-5-4, NEMA 50, UL508
- Contact Rating: 10A @ 600V AC, 5A @ 24V DC
- Action: Momentary / Momentary
- Head Material: Plastic
- Hub: 1/2 in to 3/4 in NPT
- Mechanical Interlock: No
- Enclosure Color: Gray
- Width: 3.69 in
- Height: 2.19 in
- Depth: 2.06 in
- NEMA Contact Rating Designation: A600/P600
- IP Rating: 40
- Operator Color: Black/Black
- Mounting: Wall
- Enclosure Material: Glass Filled Polyester
