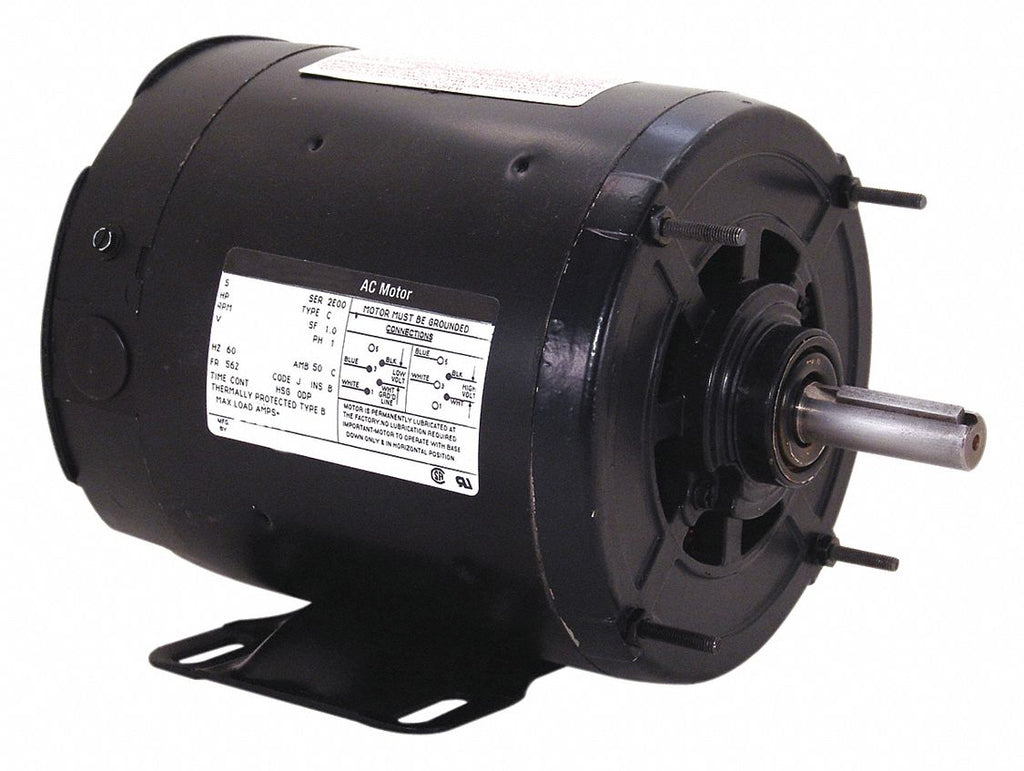

Split-Phase Belt Drive Motor, 3/4 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM


Price:
Sale price$211.89

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 9.6 Full Load Amps, 56Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Shaft Dia. 5/8 in

Specifications

  • Mfr #: OS2074
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 56Z
  • Motor Mounting Type: Rigid Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Duty: Continuous
  • Motor Shaft Rotation: CW/CCW
  • Nominal Efficiency: 67 %
  • Motor Mounting Position: All Angle
  • Ins. Class: B
  • Length Less Shaft: 8 3/4 in
  • Frame Material: Rolled steel
  • Shaft Length: 2 3/8 in
  • Body Dia.: 5 5/8 in
  • Standards: CSA
  • Max. Ambient Temp.: 40 Degrees C
  • Overall Length: 11 1/8 in
  • Footnotes: 26, 342
  • Motor Bearings: Ball
  • Motor Frame Material: Steel
  • Includes: 5/8 in Shaft Adapter/Key
  • Full Load Amps: 9.6
  • Hz: 60
  • Mounting Stud Pattern: 3 5/8 in x 3 5/8 in
  • Duty Cycle: Continuous
  • Usable @ 200V: No
  • Weight: 20 lb
  • Usable @ 208V: No
