Description

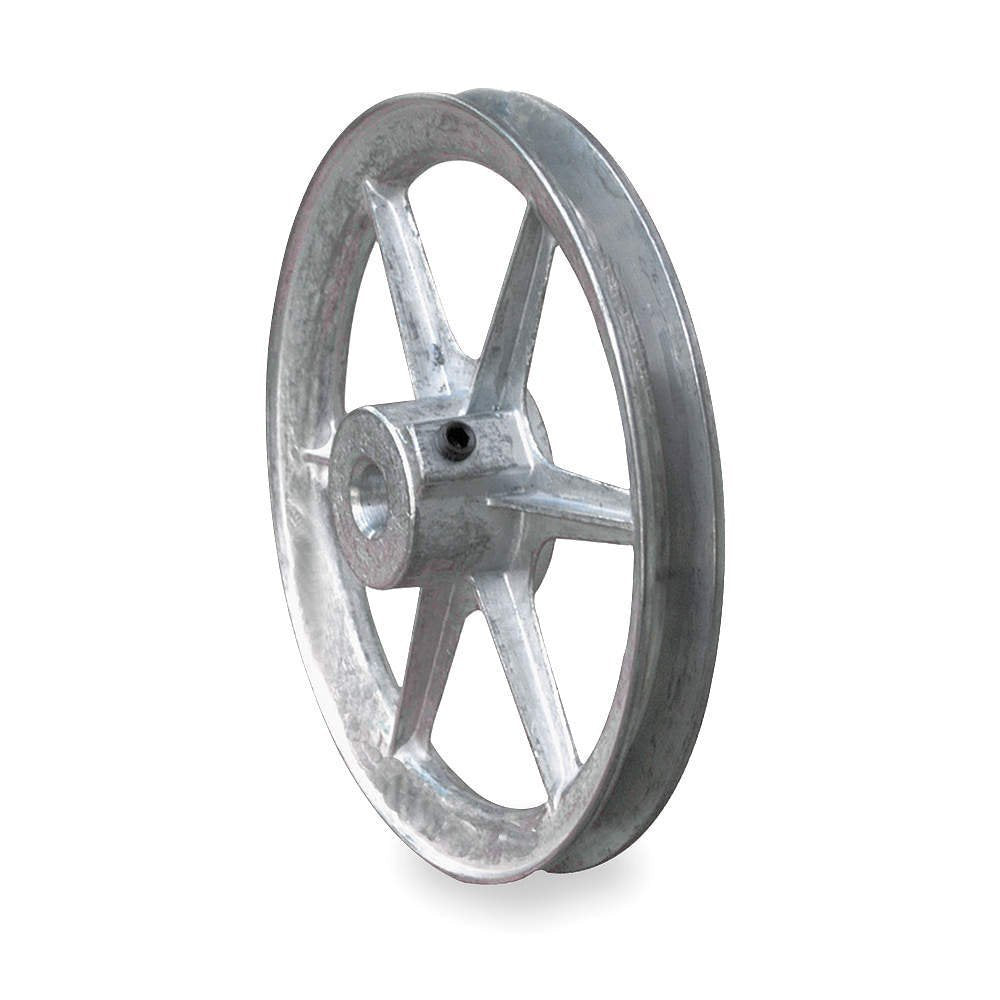

Standard V-Belt Pulley, For V-Belt Section 3L, 4L, A, Number of Grooves 1, Pulley Outside Dia. 12.0 in, Pulley Bore Type Fixed Bore, Pulley Bore Dia. 1/2 in, Pulley Material Die Cast Zamak 3, None Bushing Required, Fits Shaft Dia. 1/2 in, 3L Belt Pitch Dia. 11.55 in, 4L or A Belt Pitch Dia. 11.85 in, Construction Spoked, Industry Number CA1200X050, Keyway Size Type No Keyway, Set Screw Included Yes
Specifications
- Mfr #: CA1200X050
- Pulley Outside Dia.: 12.0 in
- Fits Shaft Dia.: 1/2 in
- Number of Grooves: 1
- For V-Belt Section: 3L, 4L, A
- Pulley Material: Die Cast Zamak 3
- Bushing Required: None
- Pulley Bore Type: Fixed Bore
- Construction: Spoked
- Pulley Bore Dia.: 1/2 in
- Industry Number: CA1200X050
- Keyway Size: No Keyway
- Keyway Size Type: No Keyway
- Item: Standard V-Belt Pulley
- 4L or A Belt Pitch Dia.: 11.85 in
- Set Screw Included: Yes
- 3L Belt Pitch Dia.: 11.55 in
