HUBBELL WIRING DEVICE-KELLEMS

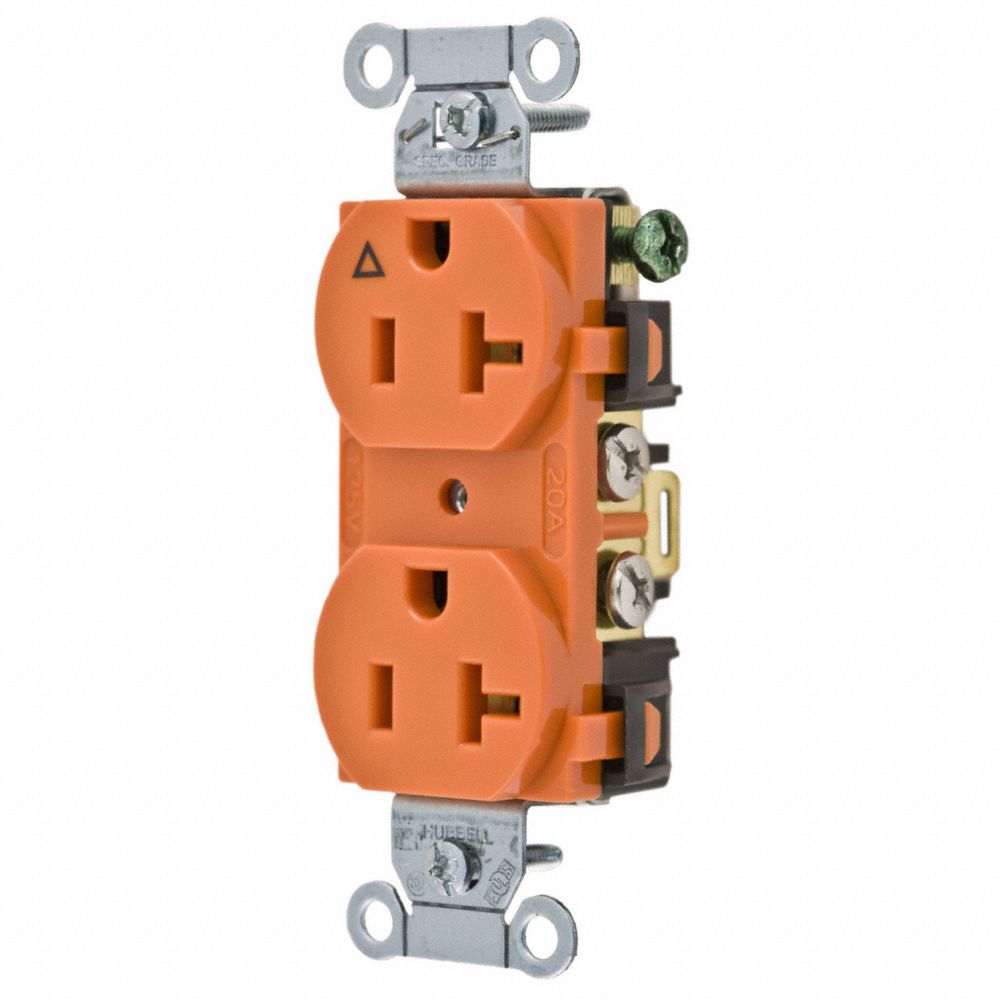

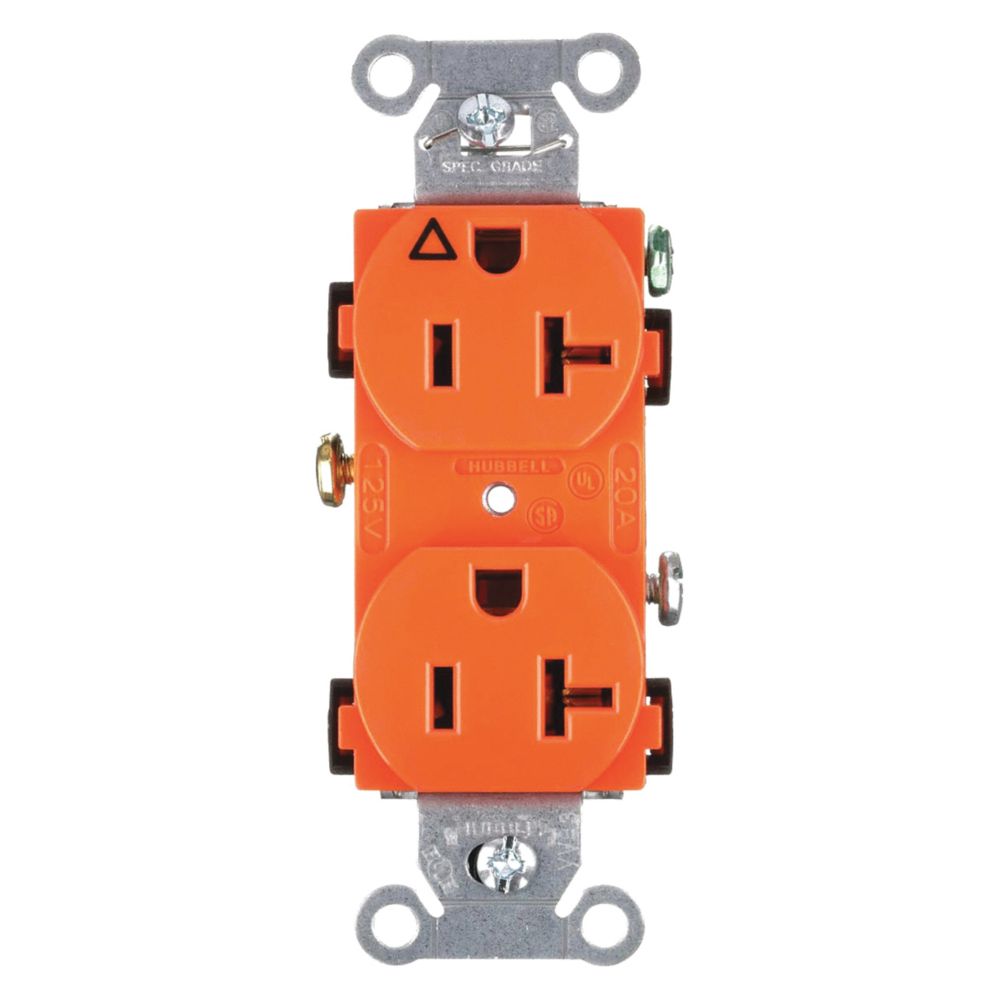

20A Duplex Receptacle 125VAC 5-20R OR

20A Duplex Receptacle 125VAC 5-20R OR

Regular price $17.38
Regular price $17.38 Sale price $17.38
Sale Sold out
Shipping calculated at checkout.

Receptacle, Straight Blade, Commercial Application Environment, Amps - Plugs and Receptacles 20 A, 5-20R, 125V AC, Number of Poles 2, Number of Wires 3, Tamper Resistant No, Weather Resistant - Plugs and Receptacles No, Outlet Type - Plugs and Receptacles Standard Duplex, Mounting Type - Plugs and Receptacles Flush, Orange, Wiring Method - Plugs and Receptacles Side, Surge Suppression No, Material Nylon, Phase 1, HP 1 hp, Corrosion Resistant No, Power Indicator No

Specifications

  • Mfr #: IG20CR
  • Item - Plugs and Receptacles: Isolated Ground Receptacle
  • Outlet Type - Plugs and Receptacles: Standard Duplex
  • Application Environment: Commercial
  • Mounting Type - Plugs and Receptacles: Flush
  • Amps - Plugs and Receptacles: 20 A
  • Voltage - Plugs and Receptacles: 125V AC
  • NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
  • Surge Suppression: No
  • Tamper Resistant: No
  • Number of Wires: 3
  • Weather Resistant: No
  • Wiring Method: Side
  • Phase: Single Phase
  • Amps - Plugs and Receptacles: 20
  • Amps: 20
  • Color: Orange
  • Corrosion Resistant: No
  • Voltage: 125VAC
  • Number of Poles: 2
  • Power Indicator: No
  • Item: Traditional Duplex
  • NEMA Configuration: 5-20R
  • Accessory Group: -
  • Description: Smooth
  • Material: Nylon
  • Color - Plugs and Receptacles: Orange
  • Outlet Type: Duplex
  • HP: 1 hp
  • Special Features: Isolated Ground
  • Sub-Category: Duplex Receptacles
  • Wiring Method - Plugs and Receptacles: Side
  • Weather Resistant - Plugs and Receptacles: No
  • Boot Code: -
  • Mounting Type: Flush
  • Number of Gangs: 1
  • Standards: CSA Certified, UL Listed
  • Number Of Poles: 2-Pole
  • Connectivity: Side Wired
  • Voltage Rating: 125 V
  • Maximum Horsepower: 1
  • Style: Smooth Face
  • Brand: Hubbell Wiring Device-Kellems
  • Type: Standard Duplex
  • Wire Size: #12 AWG to #10 AWG
  • Number Of Wires: 3-Wire
  • Dimensions: 1.32 in x 1.06 in x 3.28 in
  • Display Size: Standard Sized Product
  • Series: Commercial Specification Grade
  • Nema Rating: 5-20R
  • Amperage: 20 A
  • Carton Quantity: 10
  • Dielectric Strength: Withstands 2,000V minimum
  • Current Rating: 20 A
