Dayton

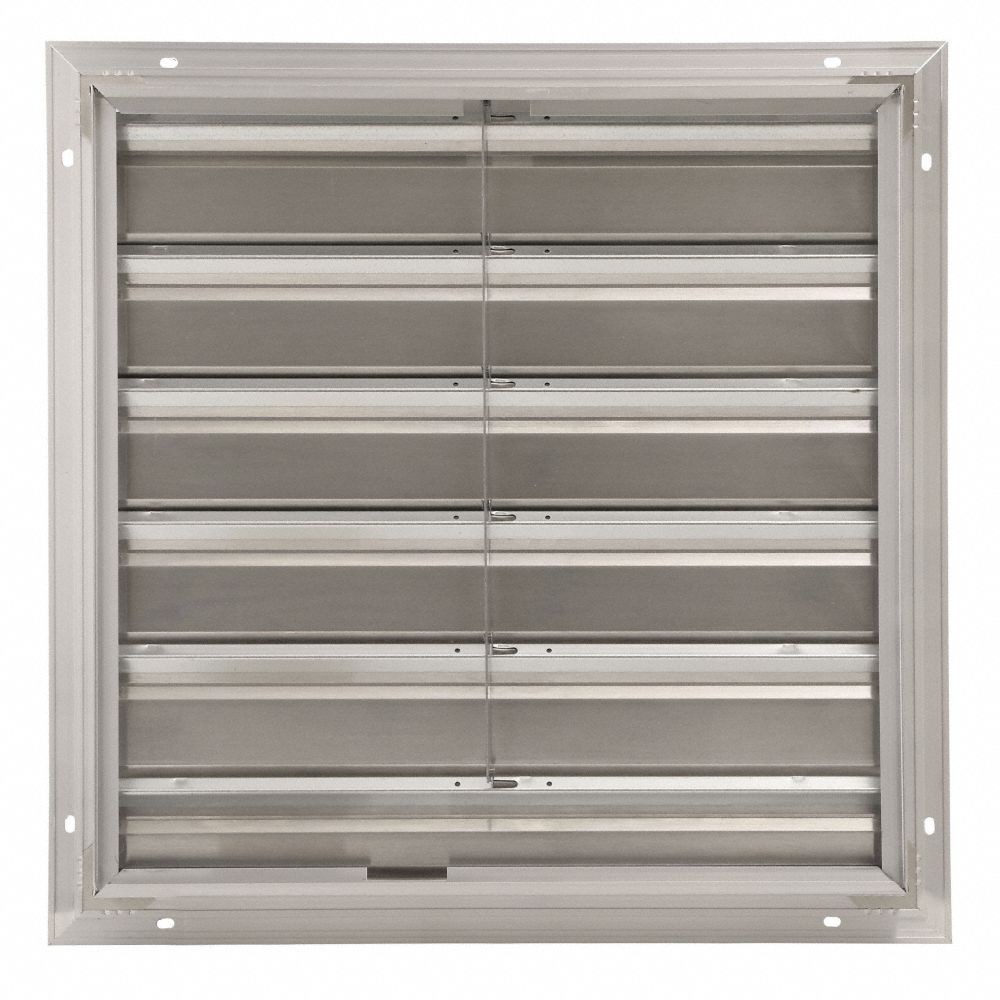

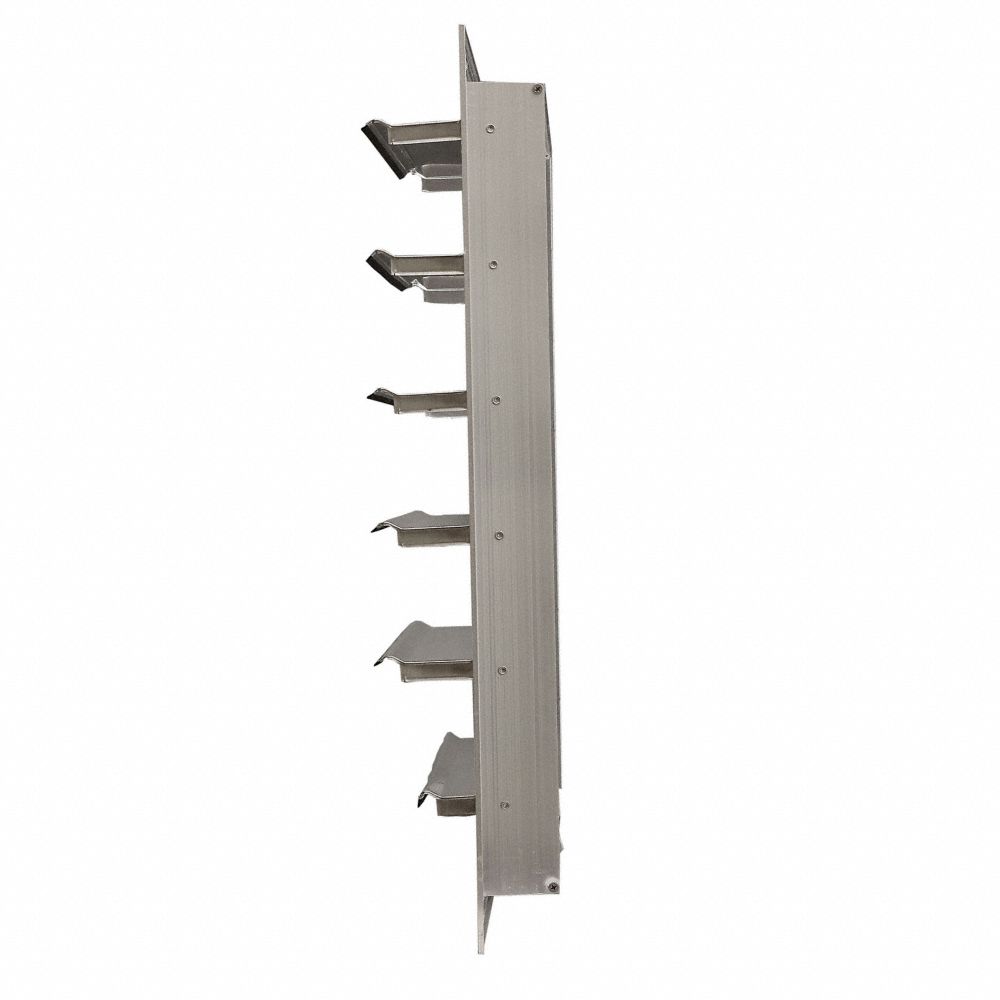

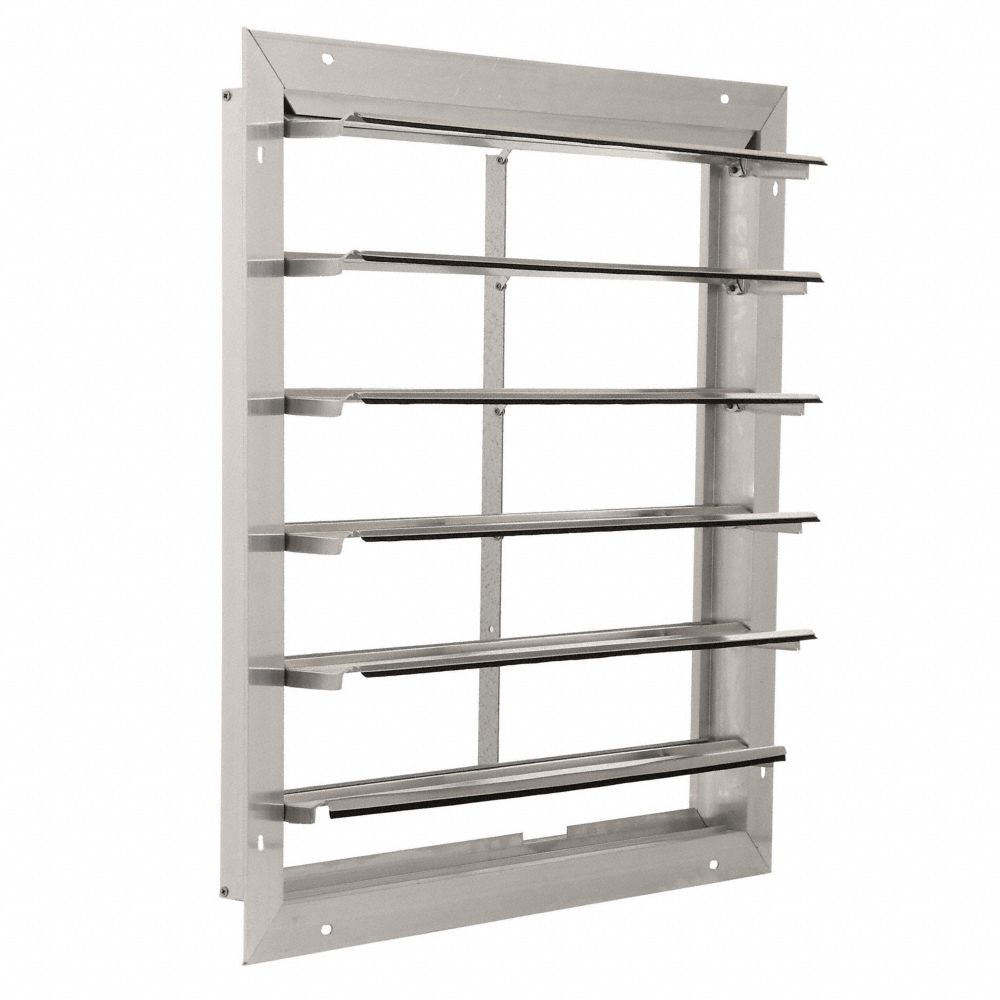

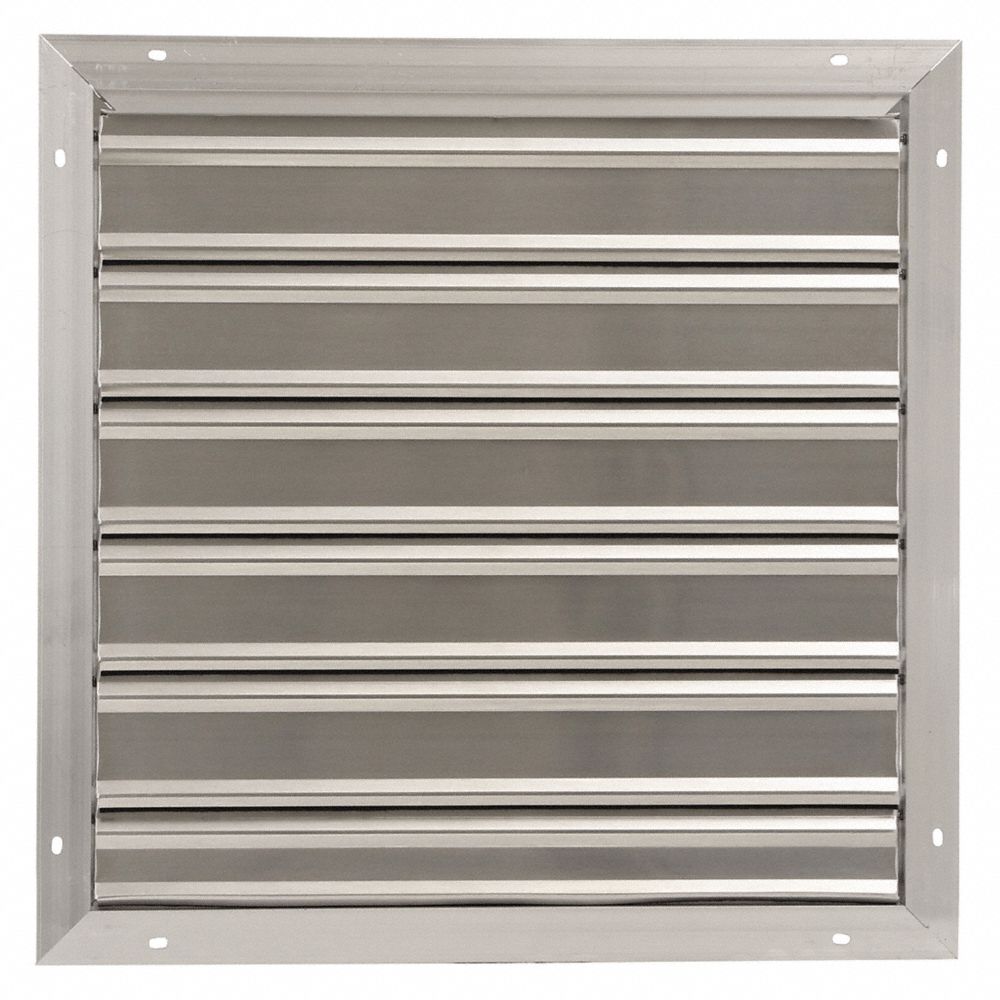

24 in Backdraft Damper / Wall Shutter, Front Flange

24 in Backdraft Damper / Wall Shutter, Front Flange

$140.39
$140.39 $140.39
Sale Sold out
Shipping calculated at checkout.
Backdraft Damper / Wall Shutter, Front Flange, Fits Fan Dia. 24 in, Shutter Overall Size 27 in x 27 in, Shutter Construction Material Extruded Aluminum Frame and Galvanized Tie Rods, Shutter Opening Required 24-1/2 in x 24-1/2 in, Shutter Free Area 3.32 sq ft, Vertical Shutter Mounting Position, Shutter Mounting Location Wall, Frame Depth 2 1/2 in, Open Depth 5 3/4 in, Flange Width 1 1/2 in, Mounting Hole Size Prepunched, Max. Velocity 2500 FPM, Blade Material Mill Finish Aluminum

Specifications

  • Mfr #: 2FTW6
  • Item: Backdraft Damper / Wall Shutter, Front Flange
  • Shutter Mounting Position: Vertical
  • Shutter Mounting Location: Wall
  • Shutter Construction Material: Extruded Aluminum Frame and Galvanized Tie Rods
  • Shutter Free Area: 3.32 sq ft
  • Shutter Opening Required: 24-1/2 in x 24-1/2 in
  • Shutter Overall Size: 27 in x 27 in
  • Fits Fan Dia.: 24 in
  • Blade Material: Mill Finish Aluminum
  • Max. Velocity: 2500 FPM
  • Shutter Overall Square: 27" x 27"
  • Shutter Item: Backdraft Damper / Wall Shutter, Front Flange
  • Frame Opening B: 24 in
  • Frame Opening A: 24 in
  • Number of Panels: 1
  • For Use With: Vertical Mounted Exhaust Fans
  • Mounting Hole Size: Prepunched
  • Open Depth: 5 3/4 in
  • Frame Depth: 2 1/2 in
  • Flange Width: 1 1/2 in
