BESSEY

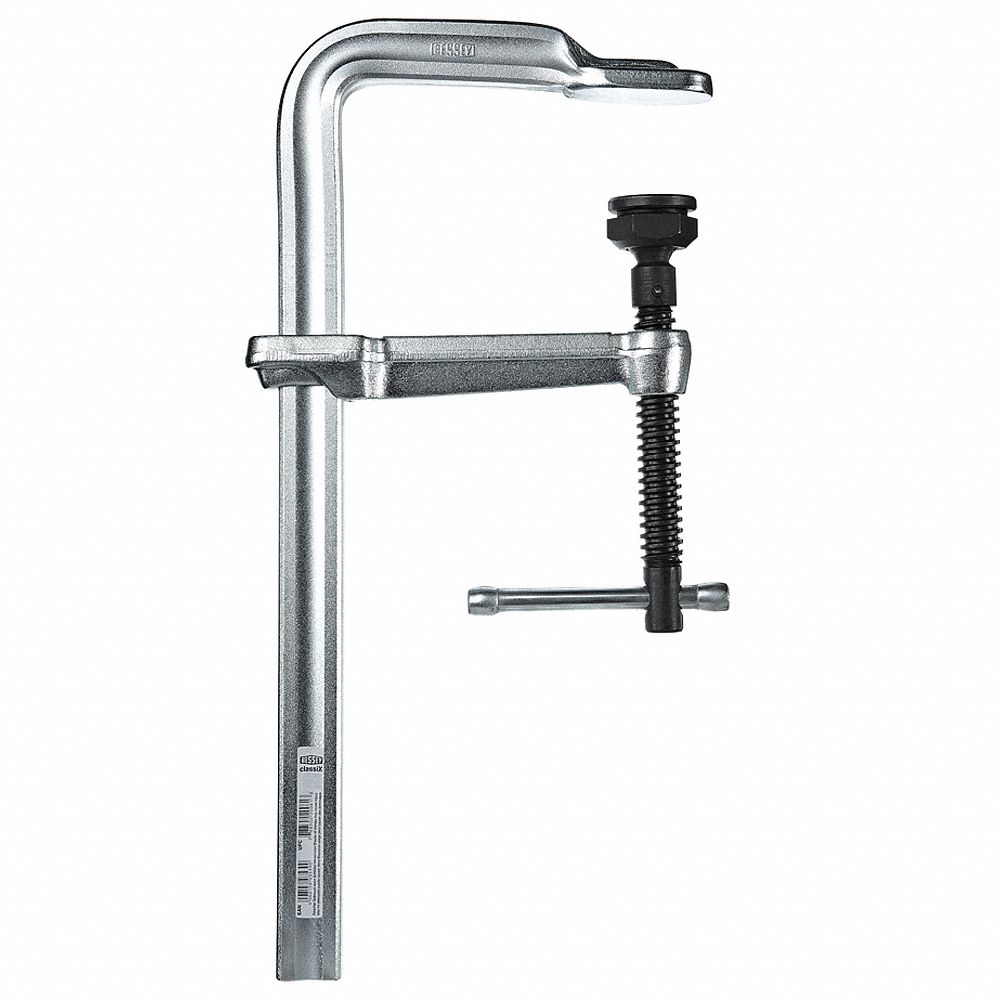

24 in Bar Clamp Steel Handle and 5 1/2 in Throat Depth

24 in Bar Clamp Steel Handle and 5 1/2 in Throat Depth

$157.29
$157.29 $157.29
Sale Sold out
Shipping calculated at checkout.
This Bessey GSM60 24 in. ClassiX Heavy Duty Bar Clamp is the ideal tool for your next project. It will provide you with superior clamping power to help you complete the job on time and without any hassles. The heavy duty bar clamp comes with a swivel pad, which allows you to position it exactly where needed. The tempered cold drawn forged steel bar offers greater durability and strength, making this bar clamp perfect for heavy duty applications. The maximum jaw opening of 24 in makes this an excellent choice for welding, assembly and general purpose clamping. Its steel handle gives you a sturdy grip when applying pressure during use, while its 1 5/16 x 2 5/8" face provides ample space for holding onto objects tightly. When it comes to working with fasteners, the BESSEY GSM60 24 in Bar Clamp is the tool to have on hand.

Specifications

  • Mfr #: GSM60
  • Handle Material: Steel
  • Throat Depth (In.): 5 1/2 in
  • Application: Heavy Maintenance, Welding, Assembly And General Purpose Clamping
  • Clamp Face (In.): 1-5/16 x 2-5/8
  • Pad Type: Heavy Duty, Swivel
  • Swivel Pad (In.): 1-1/2
  • Opening (In.): 24 in
  • Nominal Rail Size (In.): 1-3/16 x 19/32
  • Max. Jaw Opening (In.): 24 in
  • Clamping Surface W (In.): 2 5/8 in
  • Nominal Clamping Pressure: 2,660
  • Item: Bar Clamp
  • Bar Width (In.): 19/32 in
  • Handle Length (In.): 4 11/16 in
  • Spindle Dia. (In.): 0.775
  • Screw Size (In.): 0.775
  • Type: ClassiX(R) - Heavy Duty Pad
  • Clamping Surface D (In.): 1 5/16 in
  • Swivel Type: Replaceable
  • Bar Thickness (In.): 1 3/16 in
  • Bar Material: Tempered Cold Drawn Forged Steel
  • Bar Size (In.): 7/16 in
  • Load Capacity (Lb.): 2,660
