Description

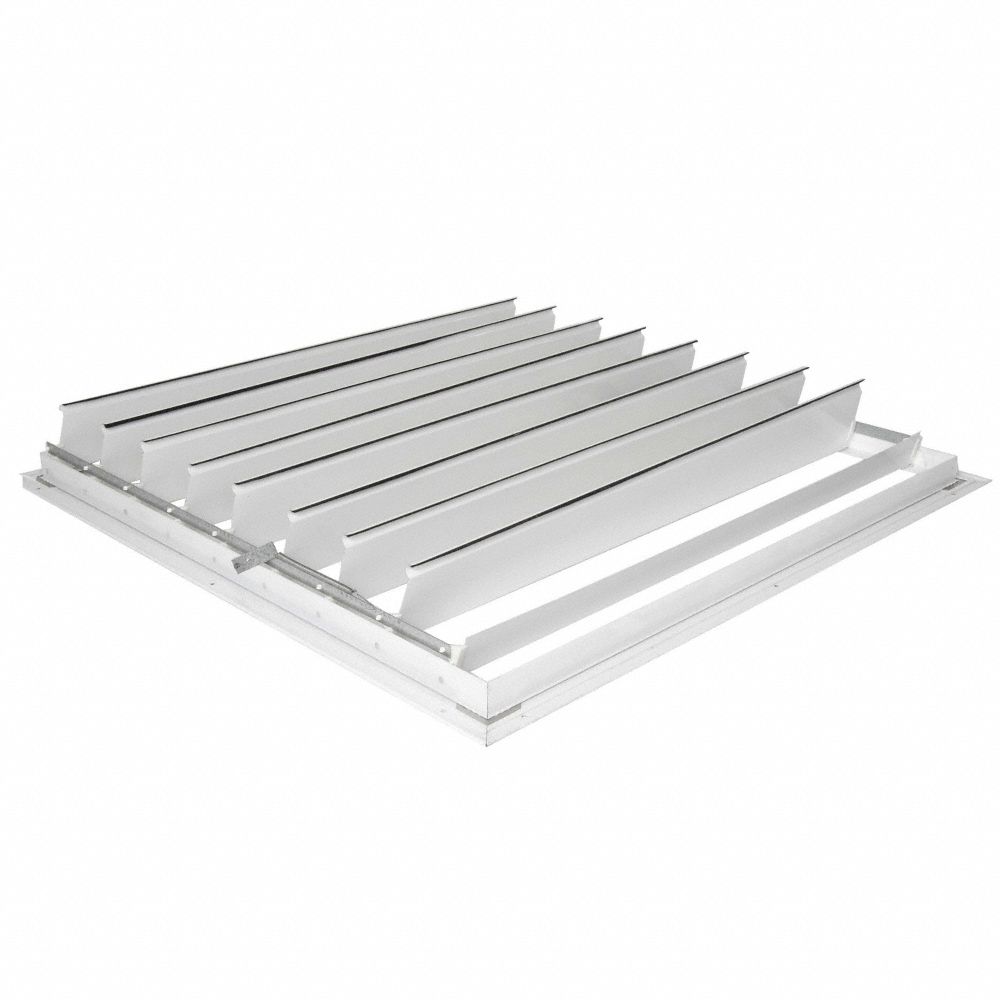

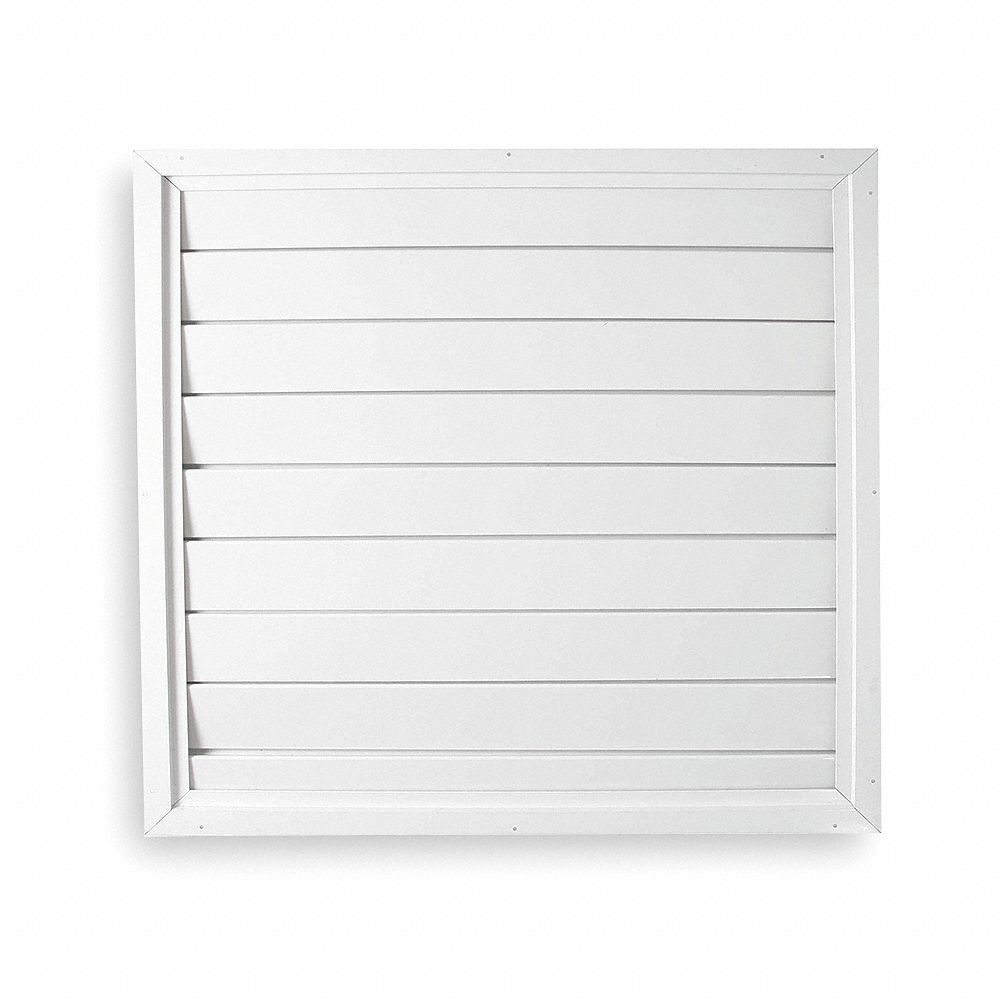

Whole House Fan Economy Ceiling Shutter / Ceiling Shutter, Fits Fan Dia. 24 in, Shutter Overall Size 26 in x 26 in, Shutter Construction Material Extruded Aluminum Frame and G-90 Galvanized Tie Rods, Shutter Opening Required 24 in x 24 in, Shutter Free Area 3.631 sq ft, Horizontal Shutter Mounting Position, Shutter Mounting Location Ceiling, Length 26 in, Width 26 in, Frame Depth 1 3/8 in, Open Depth 5 in, Flange Width 1 1/2 in, Mounting Hole Size Prepunched, Max. Velocity 1500 FPM
Specifications
- Mfr #: 3HHR2
- Item: Whole House Fan Economy Ceiling Shutter / Ceiling Shutter
- Shutter Mounting Position: Horizontal
- Shutter Mounting Location: Ceiling
- Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
- Shutter Free Area: 3.631 sq ft
- Shutter Opening Required: 24 in x 24 in
- Shutter Overall Size: 26 in x 26 in
- Fits Fan Dia.: 24 in
- Blade Material: White Painted Aluminum
- Max. Velocity: 1500 FPM
- Width: 26 in
- Shutter Overall Square: 26" x 26"
- Length: 26 in
- Flange Width: 1 1/2 in
- Number of Panels: 1
- Frame Opening B: -
- Frame Depth: 1 3/8 in
- Open Depth: 5 in
- Shutter Item: Whole House Fan Economy Ceiling Shutter
- Mounting Hole Size: Prepunched
- Frame Opening A: -
- For Use With: 24 in Whole House Fans
- Length (Straight Wireway): 26 in
