DAYTON

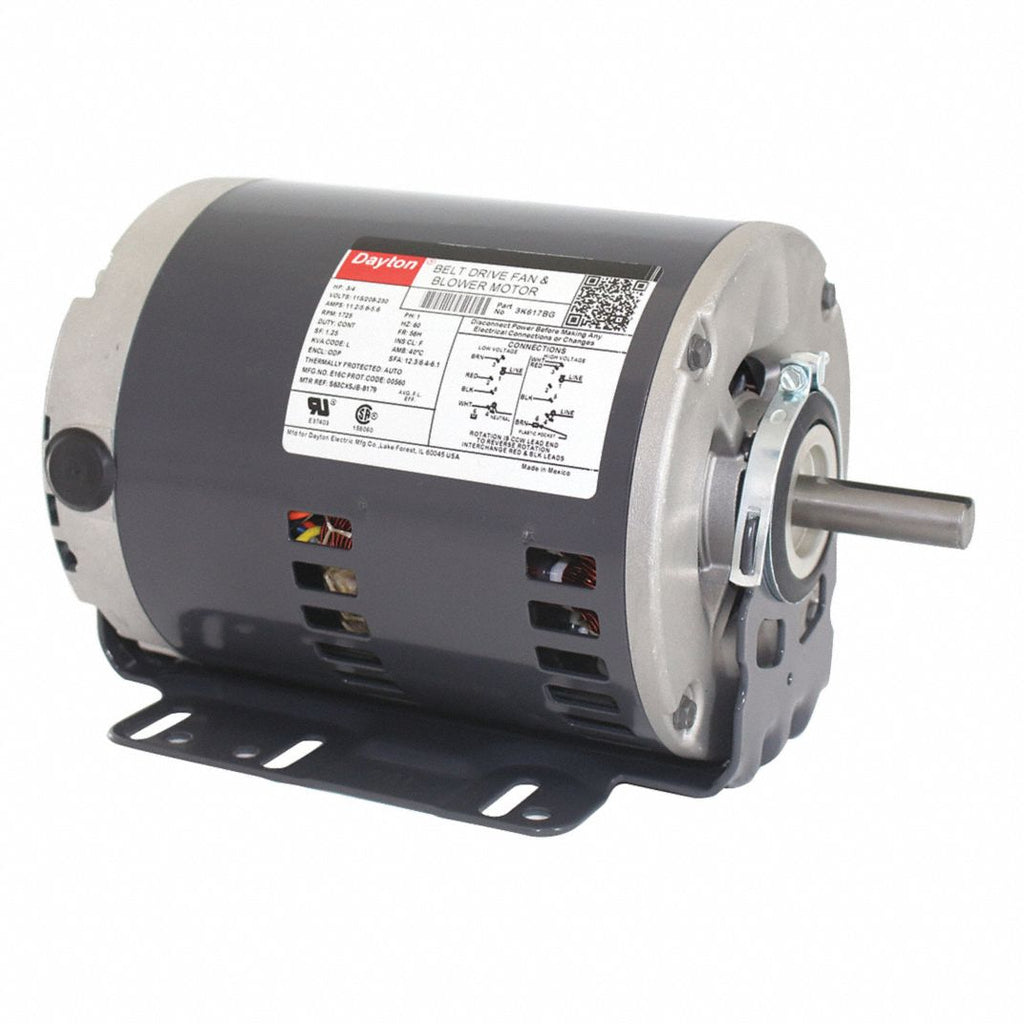

3/4 HP Motor, 1725 RPM, 115/208-230V

3/4 HP Motor, 1725 RPM, 115/208-230V

Regular price $399.09
Regular price $399.09 Sale price $399.09
Sale Sold out
Shipping calculated at checkout.

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 11.2/5.6-5.6 Full Load Amps, 56H Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in


Specifications

  • Mfr #: 3K617BG
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 56H
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.25
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Shaft Design: Keyed
  • Duty: Continuous
  • Motor Bearings: Ball
  • Max. Ambient Temp.: 40 Degrees C
  • Hz: 60
  • Motor Mounting Position: All Angle
  • Resilient Ring Dia.: 2 1/4 in
  • Motor Shaft Rotation: CW/CCW
  • Nominal Efficiency: 65.9 %
  • Ins. Class: F
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Overall Length: 11 1/4 in
  • Length Less Shaft: 9 3/8 in
  • Frame Material: Steel
  • Motor Frame Material: Rolled Steel
  • Body Dia.: 6 1/2 in
  • Shaft Length: 1 7/8 in
  • Full Load Amps: 11.2/5.6-5.6
  • Ring to Ring Center: 8 15/16 in
  • Includes: Shaft Key
  • Duty Cycle: Continuous
