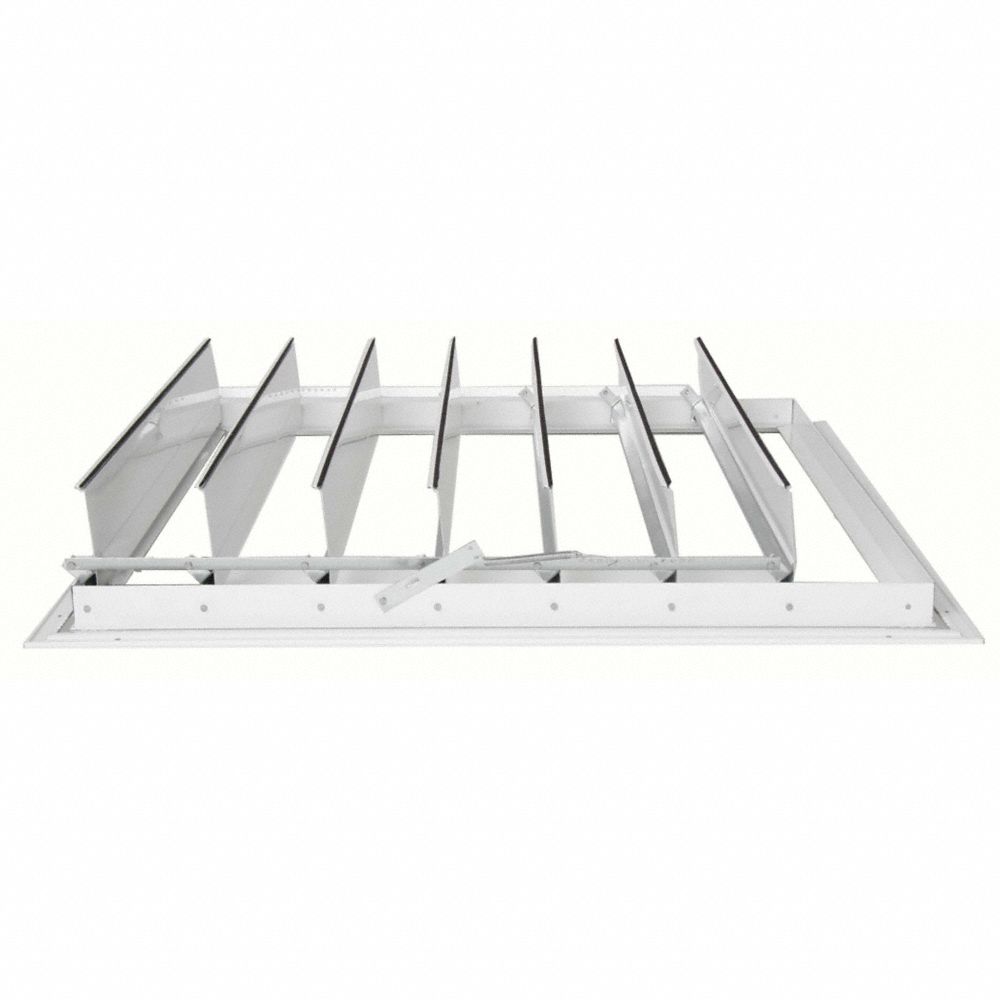

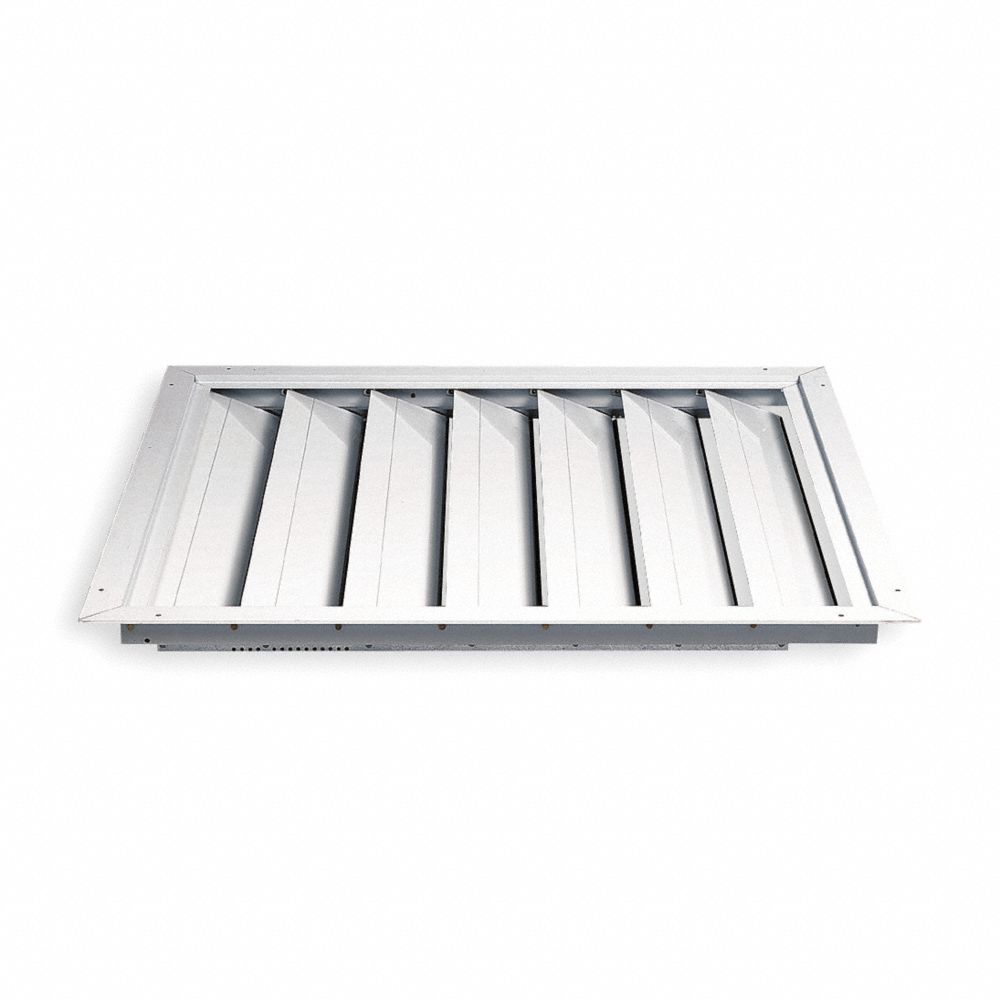

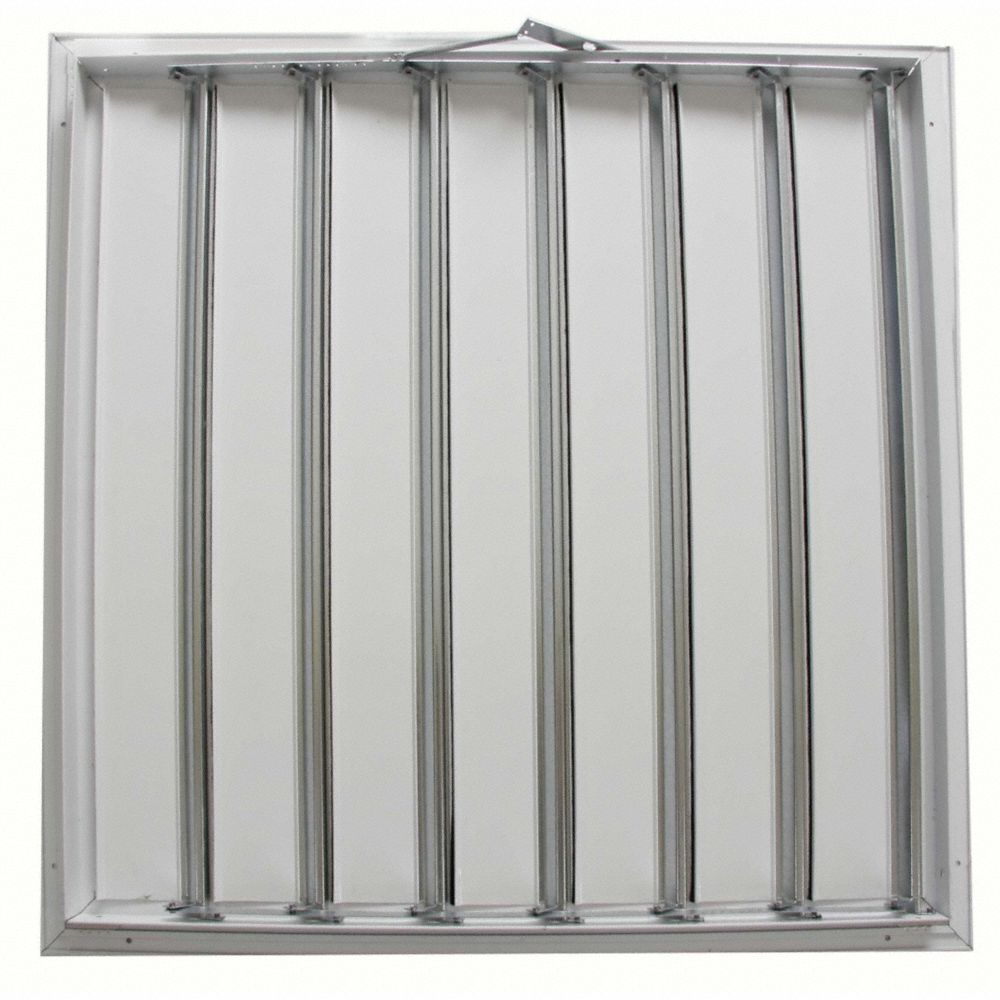

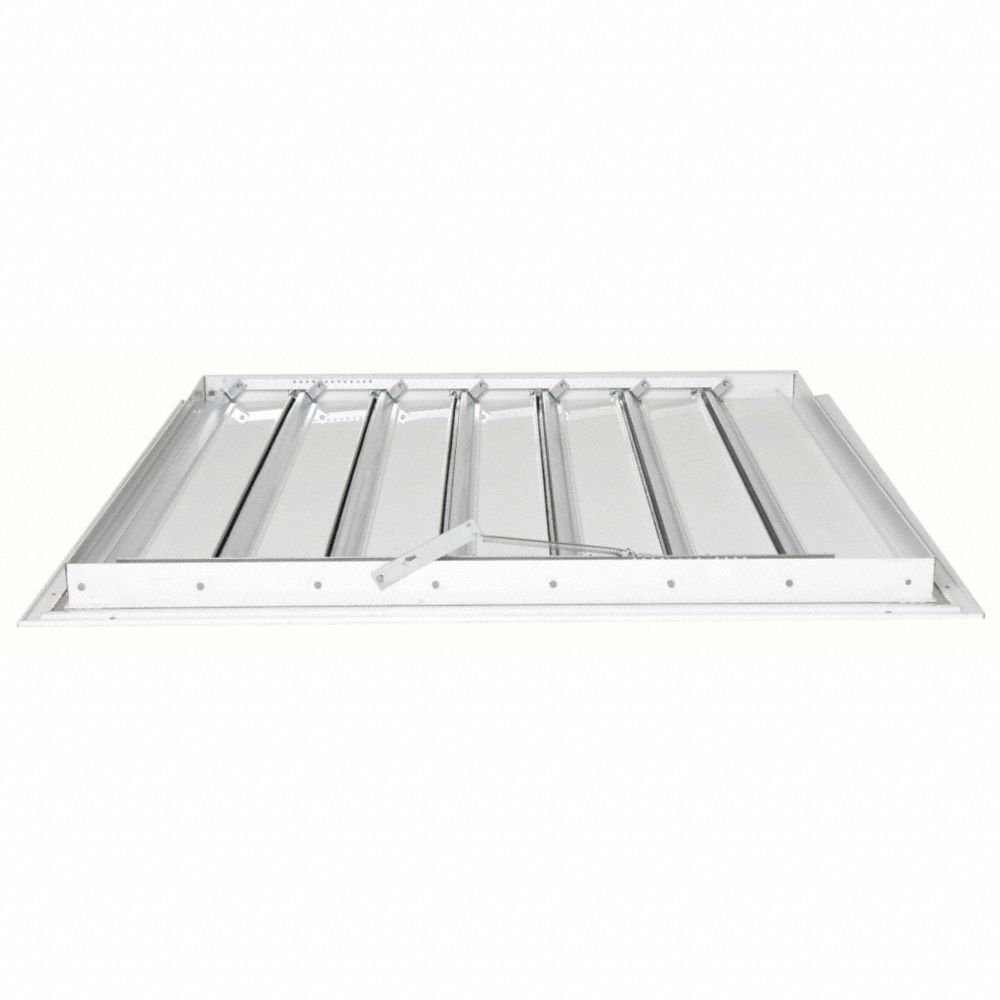

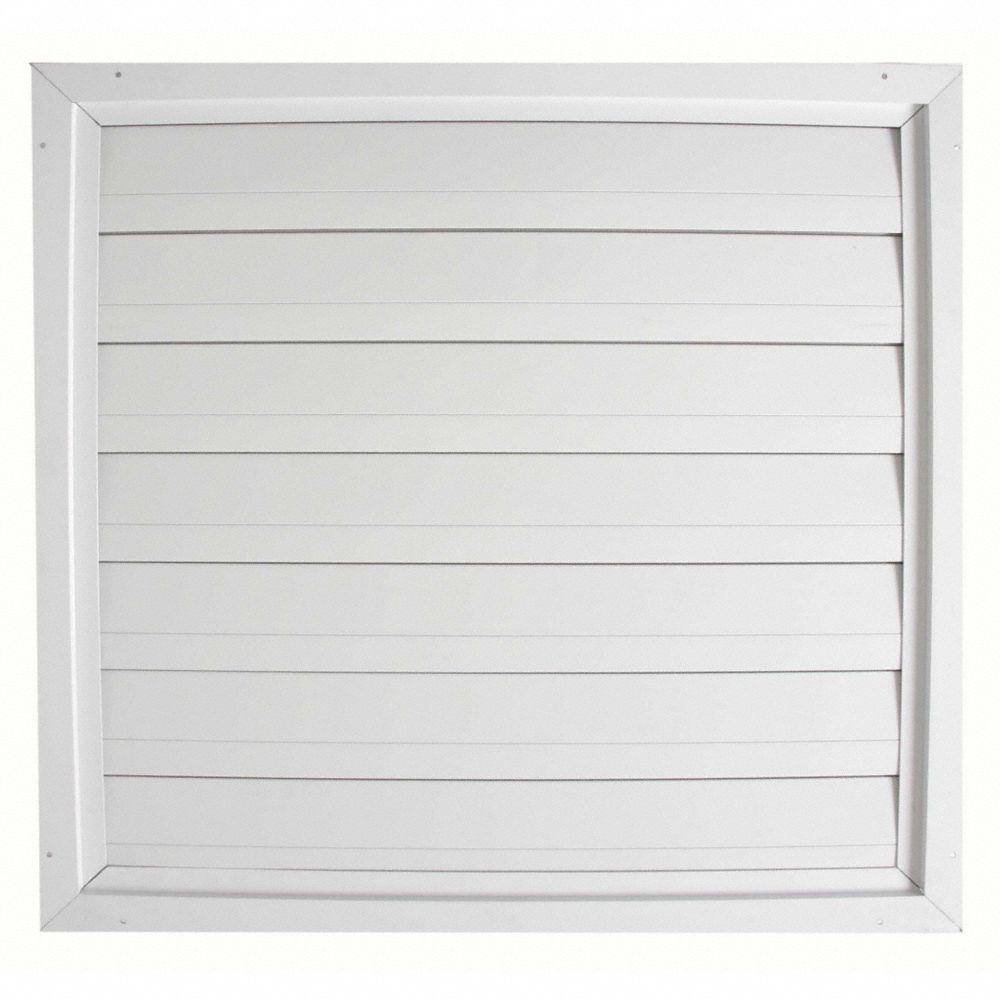

The Dayton 30-Inch Whole House Fan Premium Ceiling Shutter is made from extruded aluminium frame and galvanized tie rods. It is perfect for mounting in a house or building to help you create a comfortable environment. The shutter comes with a white painted aluminium blade and a shutter panel for air circulation and ventilation. This shutter has a 5-inch open depth and fits a fan of diameter 30 inches. It can be installed in a horizontal position.
Specifications
Mfr #:4C225
Item: Whole House Fan Premium Ceiling Shutter / Ceiling Shutter
Shutter Mounting Position: Horizontal
Shutter Mounting Location: Ceiling
Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area: 4.652 sq ft
Shutter Opening Required: 30 in x 30 in
Shutter Overall Size: 32 in x 32 in
Fits Fan Dia.: 30 in
Blade Material: White Painted Aluminum
Max. Velocity: 2250 FPM
Width: 32 in
For Use With: 30 in Whole House Fans
Number of Panels: 1
Shutter Overall Square: 23"
Frame Depth: 1 3/8 in
Frame Opening A: -
Open Depth: 5 in
Mounting Hole Size: Prepunched
Shutter Item: Whole House Fan Premium Ceiling Shutter
