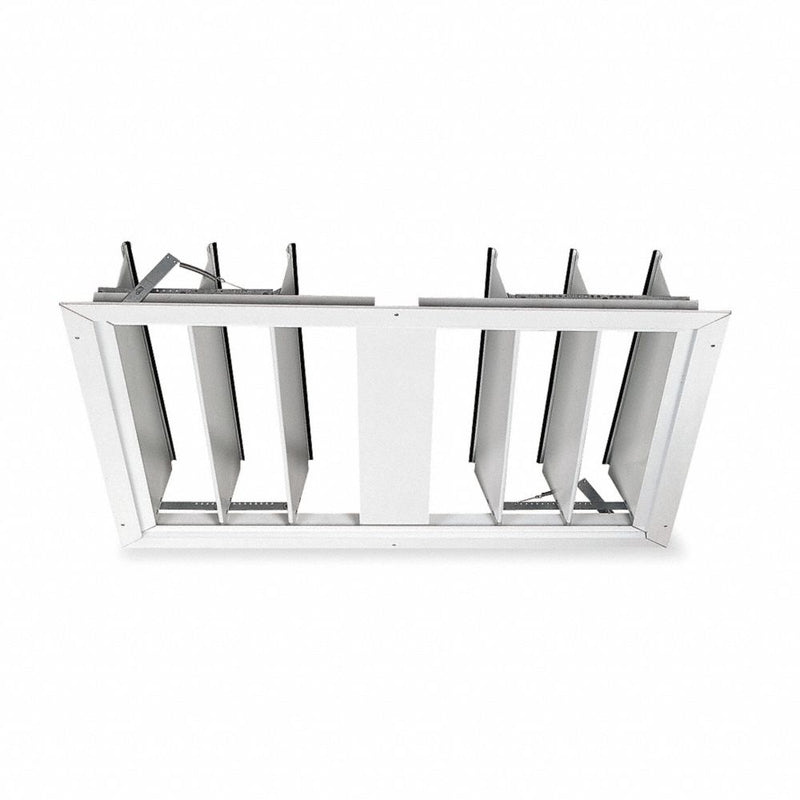

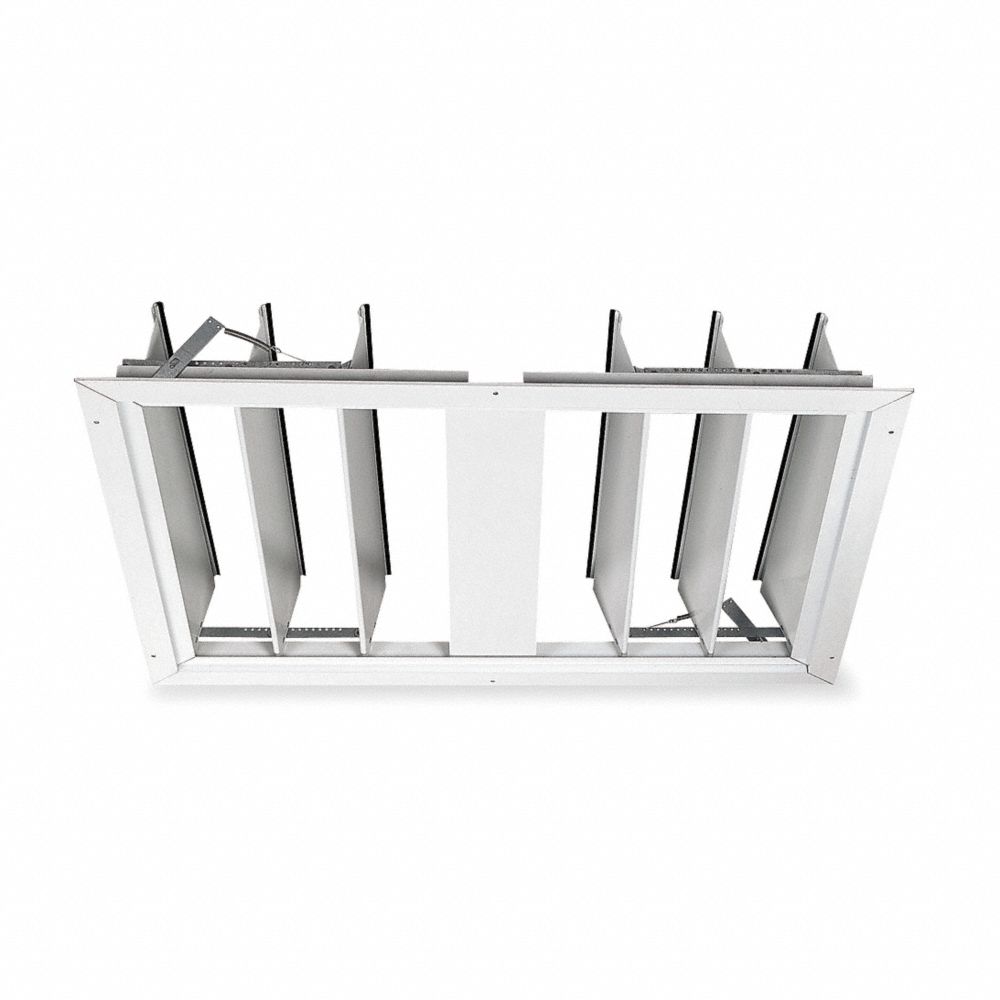

Whole House Fan Premium Ceiling Truss Shutter / Ceiling Shutter, Fits Fan Dia. 42 in, Shutter Overall Size 43 in L x 32 in W, Shutter Construction Material Extruded Aluminum Frame and G-90 Galvanized Tie Rods, Shutter Opening Required 41 in x 30 in, Shutter Free Area 6.523 sq ft, Horizontal Shutter Mounting Position, Shutter Mounting Location Ceiling, Length 43 in, Width 32 in, Frame Depth 1 3/8 in, Open Depth 5 in, Flange Width 1 1/2 in, Mounting Hole Size Prepunched, Max. Velocity 1500 FPM
Specifications
Mfr #:3HHR9
Item: Whole House Fan Premium Ceiling Truss Shutter / Ceiling Shutter
Shutter Mounting Position: Horizontal
Shutter Mounting Location: Ceiling
Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area: 6.523 sq ft
Shutter Opening Required: 41 in x 30 in
Shutter Overall Size: 43 in L x 32 in W
Fits Fan Dia.: 42 in
Blade Material: White Painted Aluminum
Max. Velocity: 1500 FPM
Width: 32 in
Shutter Overall Square: 23"
Length: 43 in
Open Depth: 5 in
Mounting Hole Size: Prepunched
Frame Opening B: -
For Use With: 42 in Whole House Fans
Frame Opening A: -
Flange Width: 1 1/2 in
Shutter Item: Whole House Fan Premium Ceiling Truss Shutter
