DAYTON

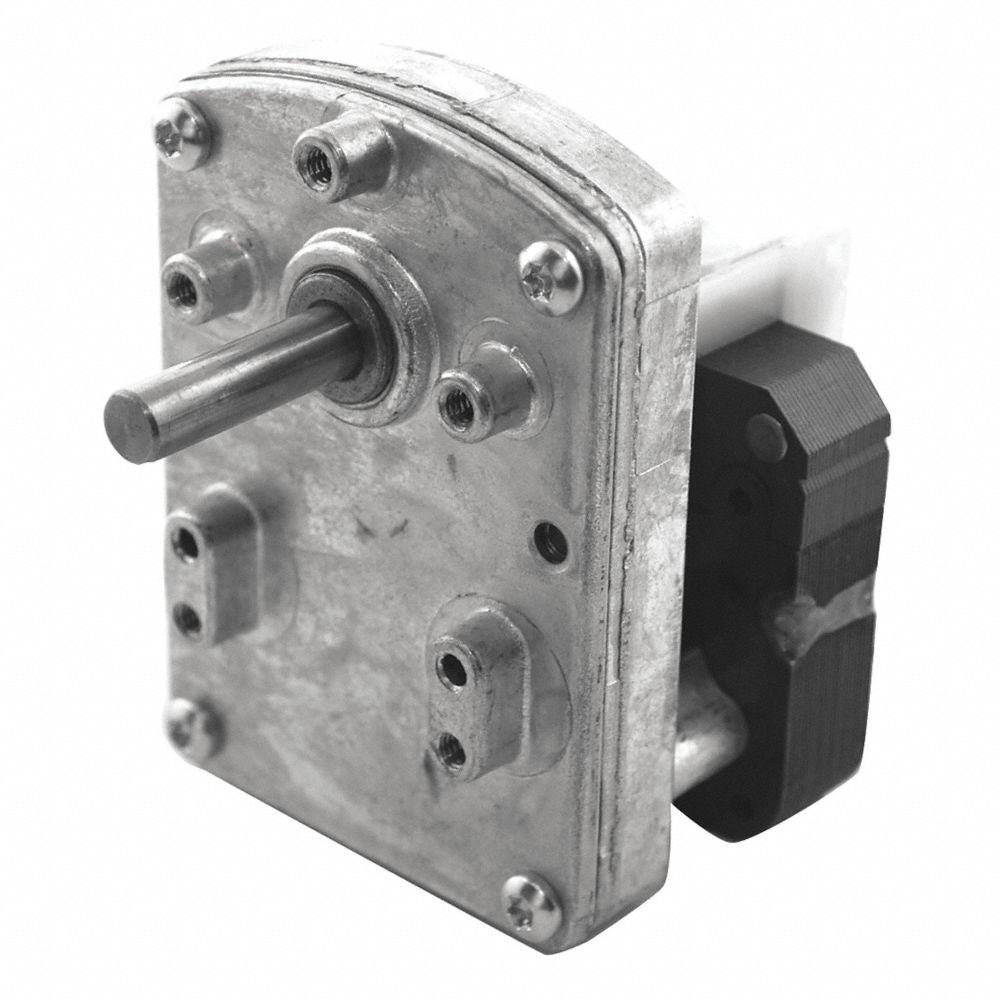

AC Gearmotor, Nameplate RPM 4, 0.32A, 115V

AC Gearmotor, Nameplate RPM 4, 0.32A, 115V

Regular price $68.18
Regular price $68.18 Sale price $68.18
Sale Sold out
Shipping calculated at checkout.

AC Gearmotor, Gearmotor Voltage 115V AC, 1 Gearmotor Phase, Max. Torque 18 in-lb, Single Gearmotor Shaft Type, Gearmotor Shaft Orientation Parallel, Gearmotor Rotation CW, Nameplate RPM 4.6 RPM, Open Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60 Hz Hz, Motor Shaft Design Round, Overhung Load 30 lb, Input HP 1/250 hp, Gear Ratio 709.17:1, Full Load Amps 0.32, Insulation Class B, Impedance Thermal Protection, Motor Type Shaded Pole, Unpainted Finish, Die Cast Zinc Housing

Specifications

  • Mfr #: 52JE17
  • Item: AC Gearmotor
  • Gearmotor Voltage: 115V AC
  • Gearmotor Phase: 1
  • Gearmotor Type: AC Gearmotor
  • Max. Torque: 18 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 4.6 RPM
  • Gearmotor Enclosure: Open
  • Gearmotor Rotation: CW
  • Gearmotor Brake Type: None
  • Length Less Shaft: 2 7/8 in
  • Gearmotor Mounting Position: All Angle
  • Full Load Amps: 0.32
  • Standards: UL Recognized/CSA
  • Input HP: 1/250 hp
  • RPM Range: 0 to 15
  • Hz: 60 Hz
  • Shaft Orientation: Parallel
  • Application: Ice Dispensing, Mail Sorting, Ticket Dispensing, DVD Kiosks, Conveyors, Agriculture, Industrial Machinery, Printing Press, Power Transmission, Packaging, Controls, X-Ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Devices, Valve Actuators, Security Systems
  • Gear Material: Sintered Steel
  • Overall Length: 3.75 in
  • Shaft Length (Dimension V): 1 in
  • Motor Type: Shaded pole
  • Phase: 1
  • Enclosure: Open
  • No Load RPM: 4.6 RPM
  • Reversible Shaft Output: No
  • Lubrication: Grease filled
  • Gear Ratio: 709.17:1
  • Starting Torque: 40.0 in-lb
  • Mounting: All Position
  • Gear Case Material: Die Cast Zinc
  • Capacitor Required: No
  • Motor Shaft Design: Round
  • Insulation Class: b
  • Number of Brake Discs Required: 0
  • Rotation: CW
  • Brake: None
  • Overhung Load: 30 lb
  • Service Factor: 1.0
  • Shaft: Single Output
  • Gears: Spur
  • Thermal Protection: Impedance
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Dia. (Dimension U): 5/16 in
  • Voltage: 115
  • Finish: Unpainted
  • Gear Type: Spur
  • Housing: Die Cast Zinc
  • Bearings: Sintered Bronze Sleeve
