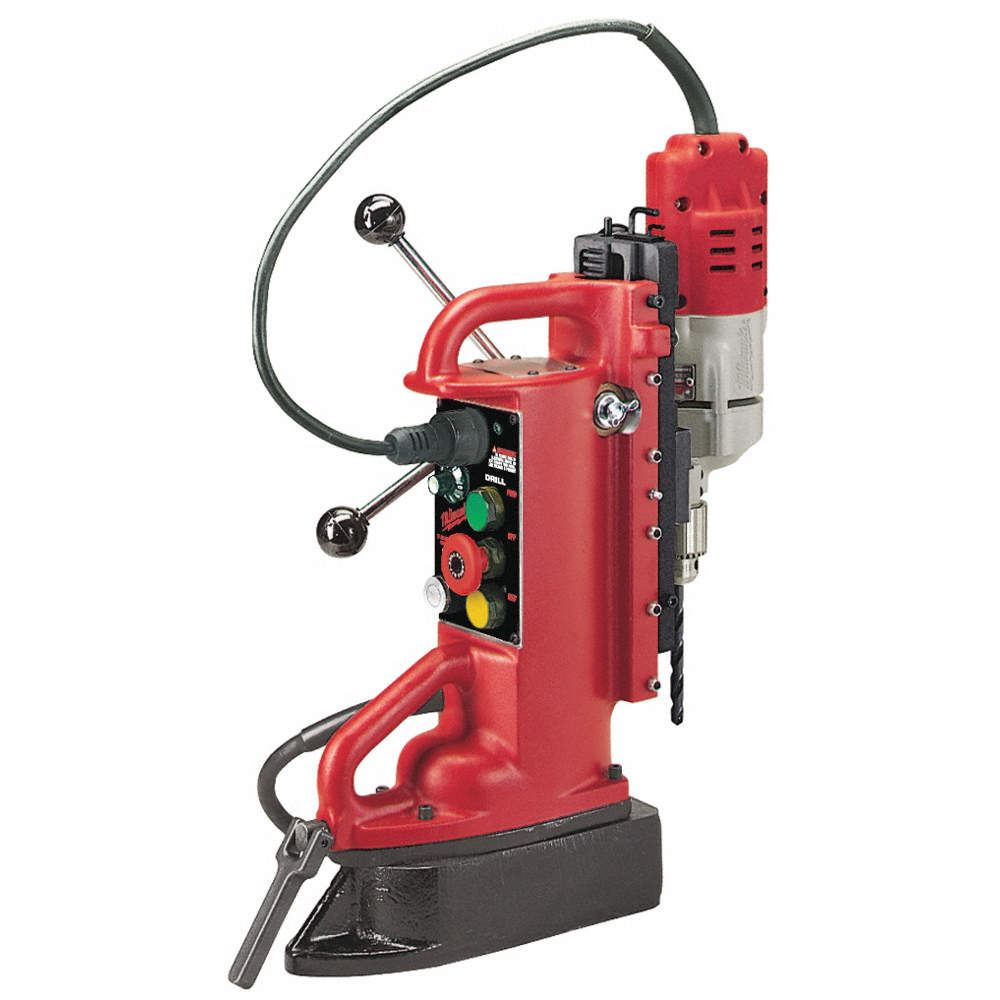

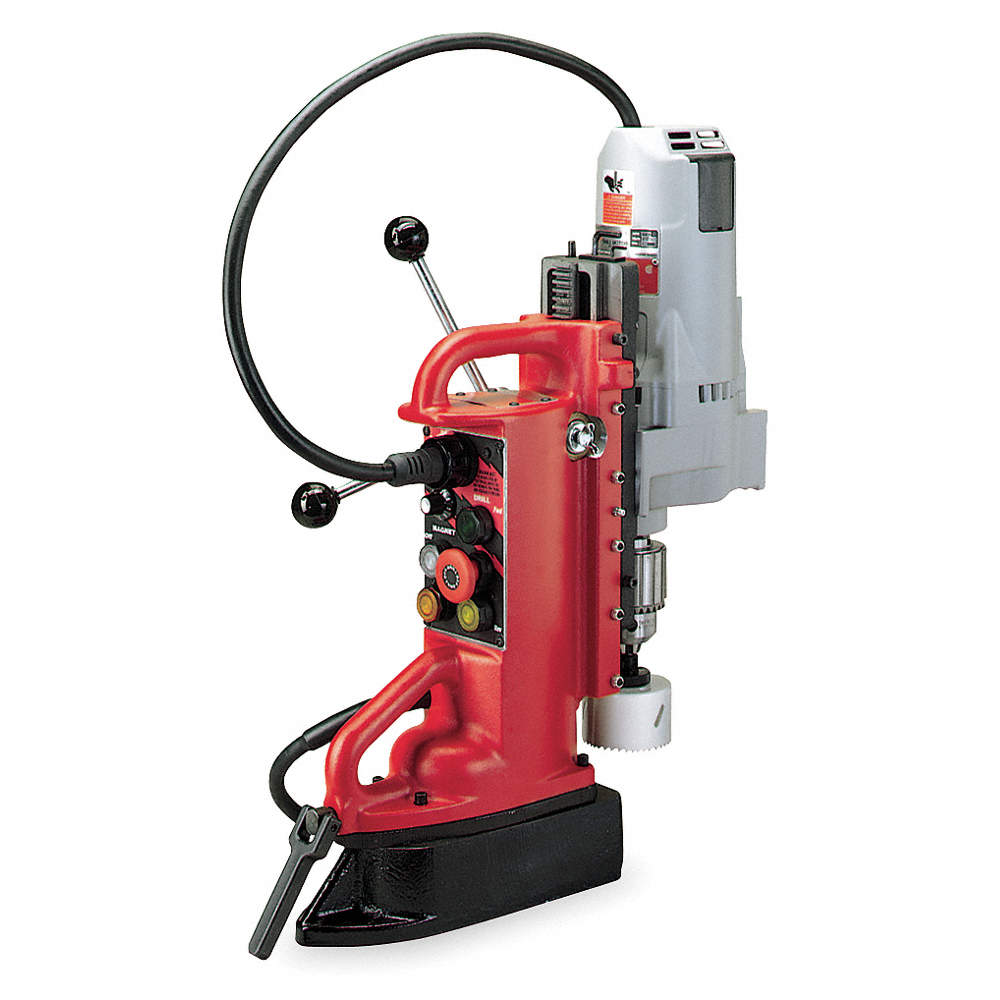

Adjustable Position Electromagnetic Drill Press w/1/2" Motor


Price:
Sale price$1,949.99

Description

This combination unit features the 4203 adjustable position, variable speed base and the 4253-1 1/2 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.

Specifications

  • Mfr #: 4204-1
  • Promotion Restriction: Not eligible for promotion
  • Item: Magnetic Drill Press
  • Voltage: 120V AC
  • Drill Travel: 9 in
  • Capacity Steel: 1/2 in
  • No Load RPM: 600
  • Amps: 7.2 A
  • Drill Point Pressure: 1,650 lb
  • Magnet Type: Electro
  • Overall Height: 25 1/4 in
  • Corded/Cordless: Corded
  • Corded/Banded: Corded
  • Features: Forward/Reverse Electronic Feedback Speed Control, Line Lock Out, Soft Start
  • Tool Length: 17 1/4 in
  • Chuck Size: 1/2 in
  • Motor Base No. Included: 6Z362
  • Motor Stock No. Included: 6Z293
  • Includes: 6-ft Safety Chain, Mfr. No. 48-66-1360 Chuck and Mfr. No. 48-66-3280 Key
  • Drill to Center From Base: 1 1/4 in
  • Reversible: Yes
  • Tool Weight: 57.0 lb
  • Motor HP: 1 1/4 hp
  • Tap Size Capacity: 5/8 in
  • Application: Drilling
  • Overall Length: 17 1/4 in
  • Maximum Core Bit Compatibility: 1/2 in
  • Tapping Capacity in Masonry: 5/8"-18
  • Spindle Travel: 9 in
  • Tapping Compatible: Yes
  • Drill Base Model Included: 4203
  • Drilling Capacity in Aluminum: 1/2 in
  • Variable Speed: No
  • Phase: Single-Phase
  • Drilling Capacity in Masonry: 1/2 in
  • Drilling Capacity in Steel: 1/2 in
  • Drilling Capacity in Cast Iron: 1/2 in
  • Var. Speed: Single Speed
  • Spindle Speed: 600 RPM
  • Tapping Capacity in Aluminum: 5/8"-18
  • Maximum Working Speed: 600 RPM
  • Base Type: Adjustable
  • Drilling Capacity in Wood: 1/2 in
  • Power Source: Corded
  • Drill Motor Model Included: 4253-1
  • Tapping Capacity in Wood: 5/8"-18
  • Tool Style: Large
  • Number of Spindle Speeds: 1
  • Number of Pieces: 2
  • Cord Length: 9 ft
  • Maximum Spindle Speed: 600 RPM
  • Tapping Capacity in Cast Iron: 5/8"-18
  • Power Down Feed Included: Yes
  • Coolant System: No
  • Chuck Style: Keyed
  • Current: 7.2 A
  • Tapping Capacity in Steel: 5/8"-18
