Description

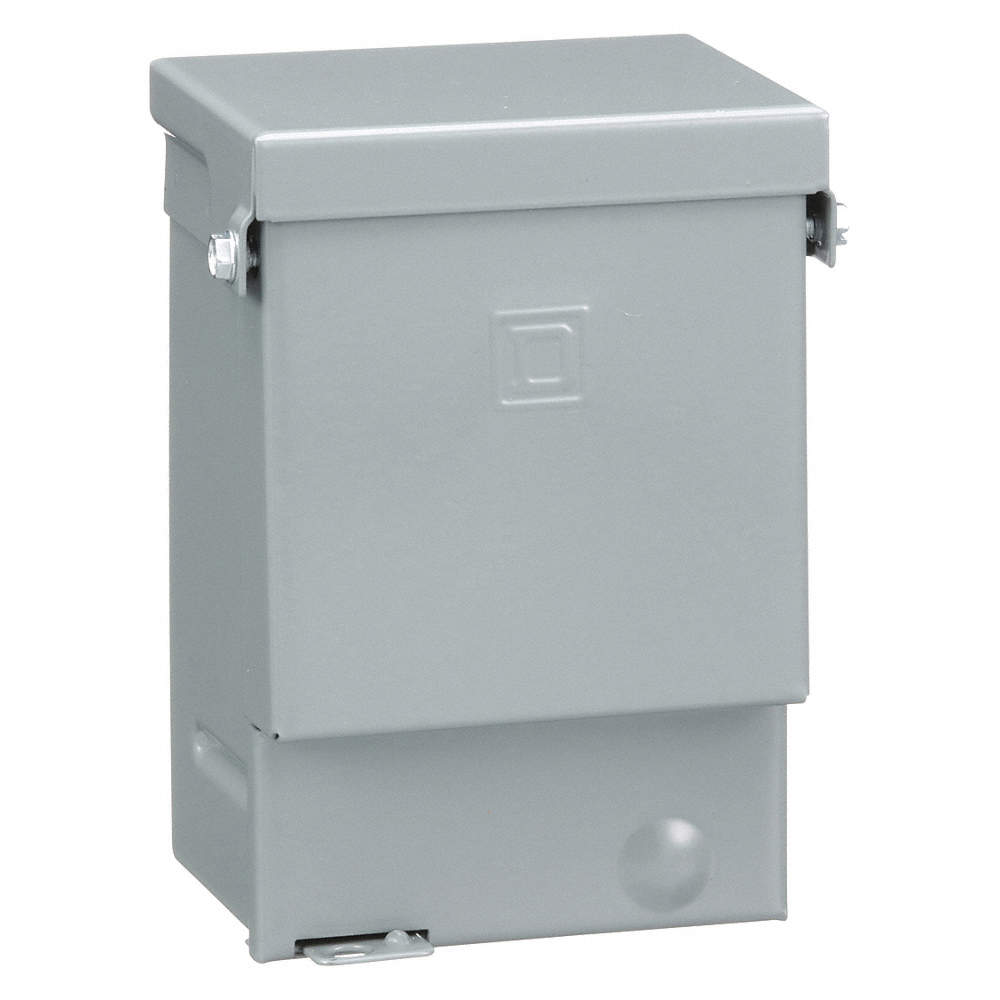

Air Conditioning Disconnect Switch, Metallic, Material of Construction Galvanized Steel, General Duty, 60 A Amps AC, Voltage 240V AC, 1 Phase, 10 hp Max. HP @ 240V, 3R NEMA Enclosure Type, 14 IP Rating, Short Circuit Protection None, Number of Wires 2, Number of Poles 2, Contact Form 2PST, Height 6 1/2 in, Width 4 39/64 in, Depth 3 29/32 in, Receptacle Type No Receptacle Included, Standards UL Listed
Specifications
- Mfr #: QO200TR
- Item: Air Conditioning Single Throw Disconnect Switch
- Duty: General
- Amps: 60 A
- Voltage: 240V AC
- Phase: 1
- NEMA Enclosure Type: 3R
- IP Rating: 14
- Number of Wires: 2
- Number of Poles: 2

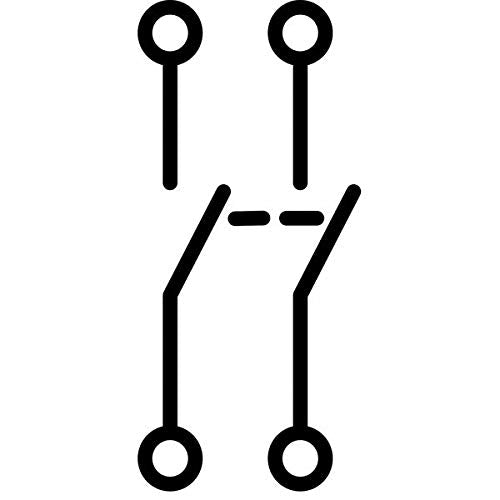

- Contact Form: 2PST
- Amps AC: 60 A
- Metallic / Non-Metallic: Metallic
- Material of Construction: Galvanized Steel
- Short Circuit Protection: None
- Height: 6 1/2 in
- Receptacle Type: No Receptacle Included
- Width: 4 39/64 in
- Standards: UL Listed
- Depth: 3 29/32 in
- Max. HP @ 240V: 10 hp
