CENTURY

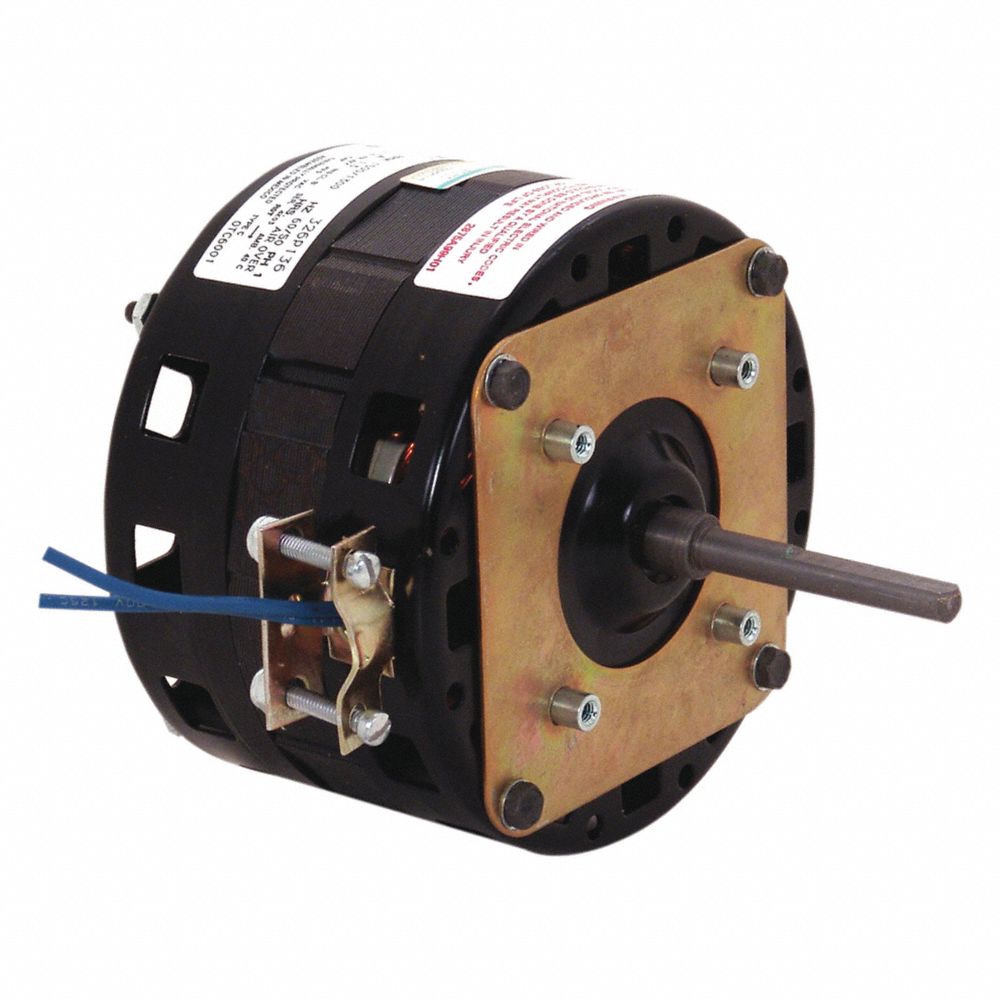

Condenser Fan Motor, 1/15 HP, 1500 rpm

Condenser Fan Motor, 1/15 HP, 1500 rpm

$181.99
$181.99 $181.99
Sale Sold out
Shipping calculated at checkout.

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500/1,300, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.30, 42Y Frame, OEM Replacement Brand Tecumseh, Replacement For 326P136, Usable @ 208V No, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Mounting Position Horizontal

Specifications

  • Mfr #: OTC6001
  • Hz: 60/50
  • Ins. Class: B
  • Nameplate RPM: 1,500
  • Item: Condenser Fan Motor
  • Motor Design: Shaded Pole
  • Motor Sub Application: Condenser Fan
  • Phase: Single
  • No. of Speeds: 1
  • OEM Replacement Brand: Tecumseh
  • Motor Thermal Protection: Auto
  • Capacitor Required: No
  • Motor Application: OEM Replacement
  • Voltage Compatibility: 115/230V AC, 120/240V AC, 230V AC, 240V AC
  • Duty: Continuous
  • Motor Shaft Rotation: CCWLE
  • Body Dia.: 5 in
  • Motor Shaft Design: Flat
  • Mounting Stud Pattern: 3 5/8 in x 3 5/8 in
  • Length Less Shaft: 4 in
  • Standards: CSA, UL Recognized
  • Replacement For: 326P136
  • Frame: 42Y
  • Overall Length: 6 1/8 in
  • Motor Bearings: Sleeve
  • Shaft Dia.: 1/2 in
  • Voltage: 230V AC
  • Motor Service Factor: 1
  • Motor Mounting Type: Face
  • Full Load Amps: 1.30
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Enclosure Design: Open Air-Over
  • HP: 1/15
  • Number of Shafts: 1
  • Shaft Length: 2 13/16 in
  • Application: Tecumseh
  • RPM Range: 1,401-1,500
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Motor Mounting Position: Horizontal
  • Stud Size: #8-32
  • Weight: 8 lb
  • Rotation: CCWLE
