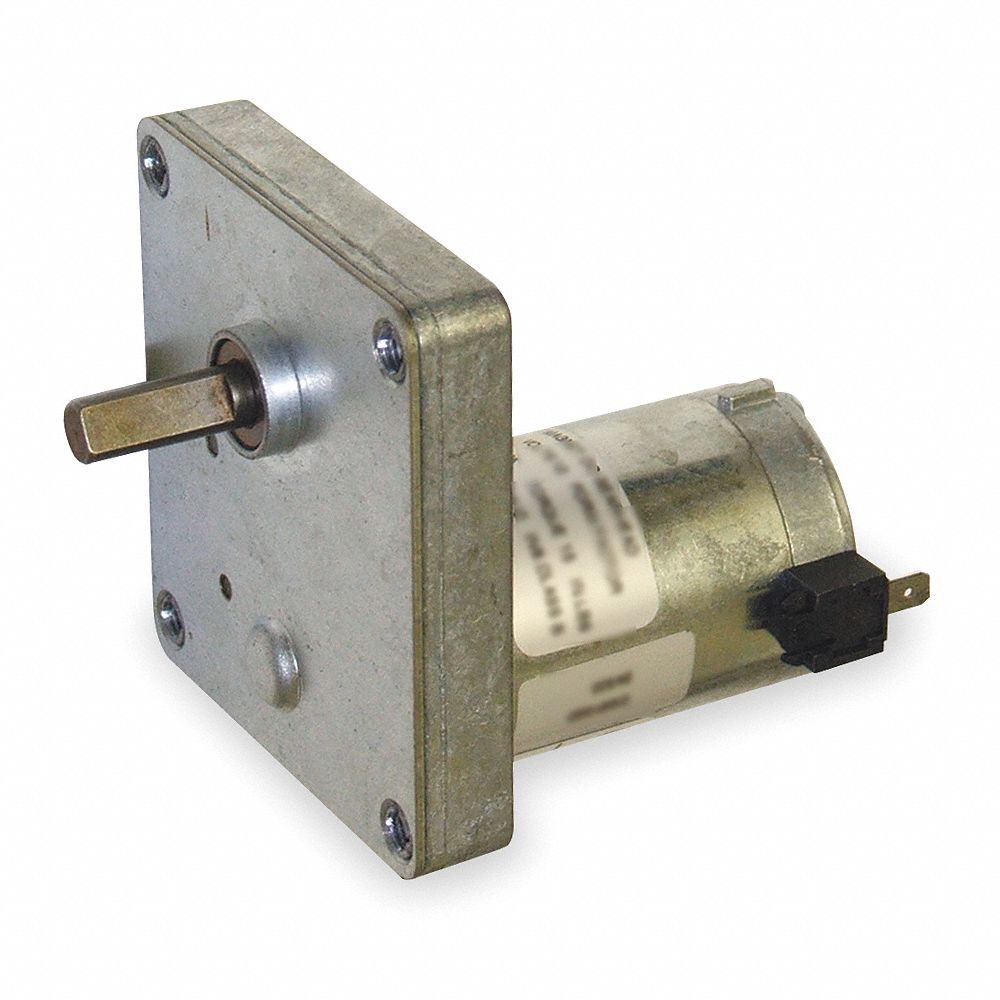

Dc Gearmotor, 10.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 12V DC Voltage


Price:
Sale price$106.55

Description

The DAYTON DC Gearmotor, 50 rpm, 12V, is the ideal choice for use in a wide variety of industrial and commercial applications. This motor features a reversible shaft, allowing it to be used in both forward and reverse directions. Gearmotors can be easily mounted to a variety of applications using the included mounting hardware. They are typically mounted using the included mounting brackets, but they can also be mounted using a variety of other mounting methods. They are typically mounted with the DC gearmotor shaft parallel to the mounting surface.

Specifications

  • Mfr #: 1LNH2
  • Item: Dc Gearmotor
  • Gearmotor Voltage: 12V DC
  • Gearmotor Type: DC Gearmotor
  • Max. Torque: 10.0 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 50 RPM
  • Gearmotor Enclosure: Totally Enclosed Nonventilated
  • Gearmotor Rotation: CW/CCW
  • Length Less Shaft: 3 1/4 in
  • Gearmotor Mounting Position: All Angle
  • Full Load Amps: 1.1 A
  • Input HP: 1/90
  • Application: Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending
  • Enclosure: TENV
  • Lubrication: Grease filled
  • Motor Type: Permanent Magnet DC
  • Gear Type: Spur
  • Max. Ambient Temp.: 40 Degrees C
  • Housing Material: Die Cast Zinc
  • Overall Length: 4 1/16 in
  • Insulation Class: b
  • Dimension B: 0.72 in
  • Gear Case: Die Cast Zinc
  • Bearings: Porous Bronze on Gear Case and Motor
  • Thermal Protection: None
  • Reversible Shaft Output: No
  • Rotation: Reversible
  • Gear Ratio: 74:1
  • RPM Range: 31 to 50
  • Shaft Orientation: Parallel
  • Dimension A: 3.22 in
  • Overhung Load: 13 lb
  • Mounting: All Position
  • Voltage: 12VDC
  • Shaft Length (Dimension V): 13/16"
  • Shaft Dia. (Dimension U): 5/16"
  • Rear Shaft Encoder/Pulse Generator Mounting: No
