DAYTON

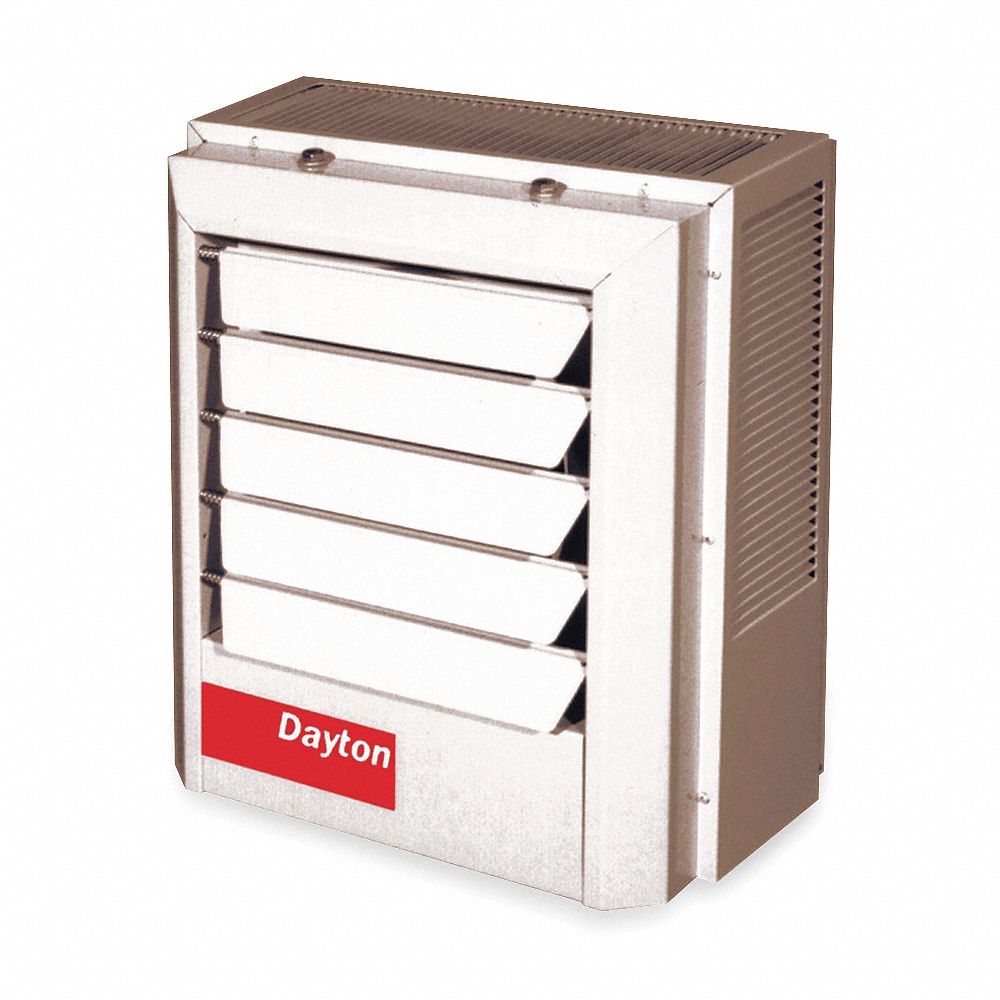

Electric Wall & Ceiling Unit Heater, 208V AC, 1/3 Phase, 10.0 kW
Electric Wall & Ceiling Unit Heater, 208V AC, 1/3 Phase, 10.0 kW
Regular price
$1,166.09
Regular price
$1,166.09
Sale price
$1,166.09
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Electric Wall & Ceiling Unit Heater, Overall Height 21 3/4 in, Overall Width 19 in, Overall Depth 8 1/2 in, Air Flow 650 cfm, Air Temp. Rise 49 Degrees F, Voltage 208V AC, 1 or 3 Phase, Wattage Output 10kW, Heating Method Fan Forced, Heating Capacity 34,100 BtuH, Mounting Location Ceiling, Wall, Horizontal Air Throw 18 ft, Frequency 60 Hz, Amperage 24A/48A, Control Type Mechanical Selector Dial, Contactor Coil Voltage 24V AC, Housing Color Beige, Housing Finish Powder Coated
Specifications
- Mfr #: 2YU71
- Promotion Restriction: Not eligible for promotion
- Depth: 8-1/2"
- Height: 21-3/4"
- Housing Material: Steel
- Includes: Adjustable Air Outlet Louvers
- Width: 19"
- Mounting Type: Ceiling
- Phase: 1 or 3
- BtuH: 34,100
- Horizontal Air Throw: 18 ft
- Heater Mounting Type: Vertical or Horizontal
- kW: 10.0
- Air Flow: 650 cfm
- Heater Voltage: 208VAC
- Electric Heater Item: Electric Unit Heater
- Standards: UL Listed, CUL
- Manufacturers Warranty Length: 1 yr Parts, 5 yr Elements
- Electric Heater Phase: 1/3
- Temp. Rise: 49 Degrees F
- Features: Totally Enclosed Fan Motor, 4 Top and 4 Back Threaded Reinforced Holes for Field Mounting with 5/16" Threaded Rod ( Not Included), Automatic Reset Linear Thermal Protector
- Hz: 60
- Vertical Mounting H: 14 ft
- Contactor Coil Voltage: 24V AC
- Housing Finish: Powder Coated
- Item: Electric Wall & Ceiling Unit Heater
- Amps AC: 48/24
- Requires: 2YU95, 5/16"-18 Threaded Rod for Ceiling Installation
- Vertical Floor Coverage: 26 ft
- Voltage: 208V AC
- Overall Height: 21 3/4 in
- Overall Width: 19 in
- Overall Depth: 8 1/2 in
- Control Type: Mechanical Selector Dial
- Amperage: 24A/48A
- Wattage Output: 10kW
- Frequency: 60 Hz
- Voltage, Phase: 208V AC, 1 or 3-phase
- Heating Capacity: 34,100 BtuH
- Air Temp. Rise: 49 Degrees F
- Overall Dimensions - H x W x D: 21-3/4 in x 19 in x 8-1/2 in
- Housing Color: Beige
- Heating Method: Fan Forced
