INTERMATIC

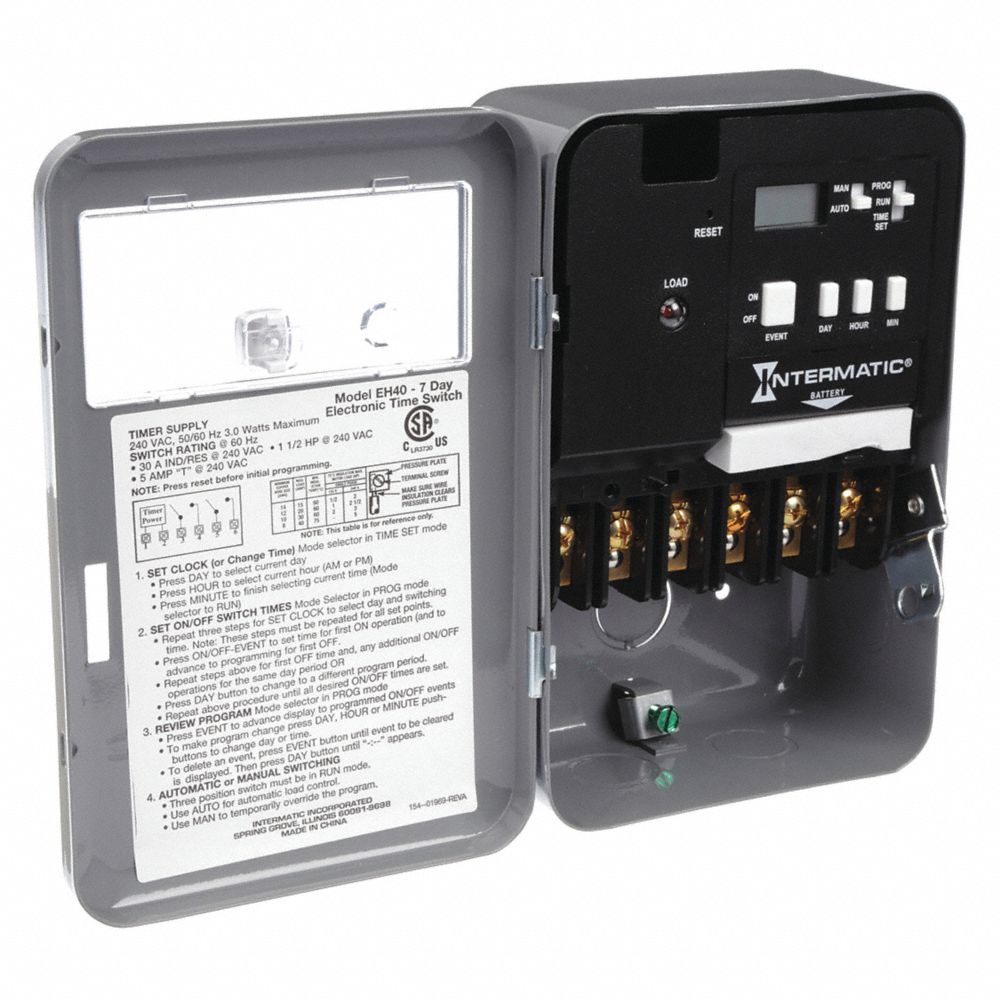

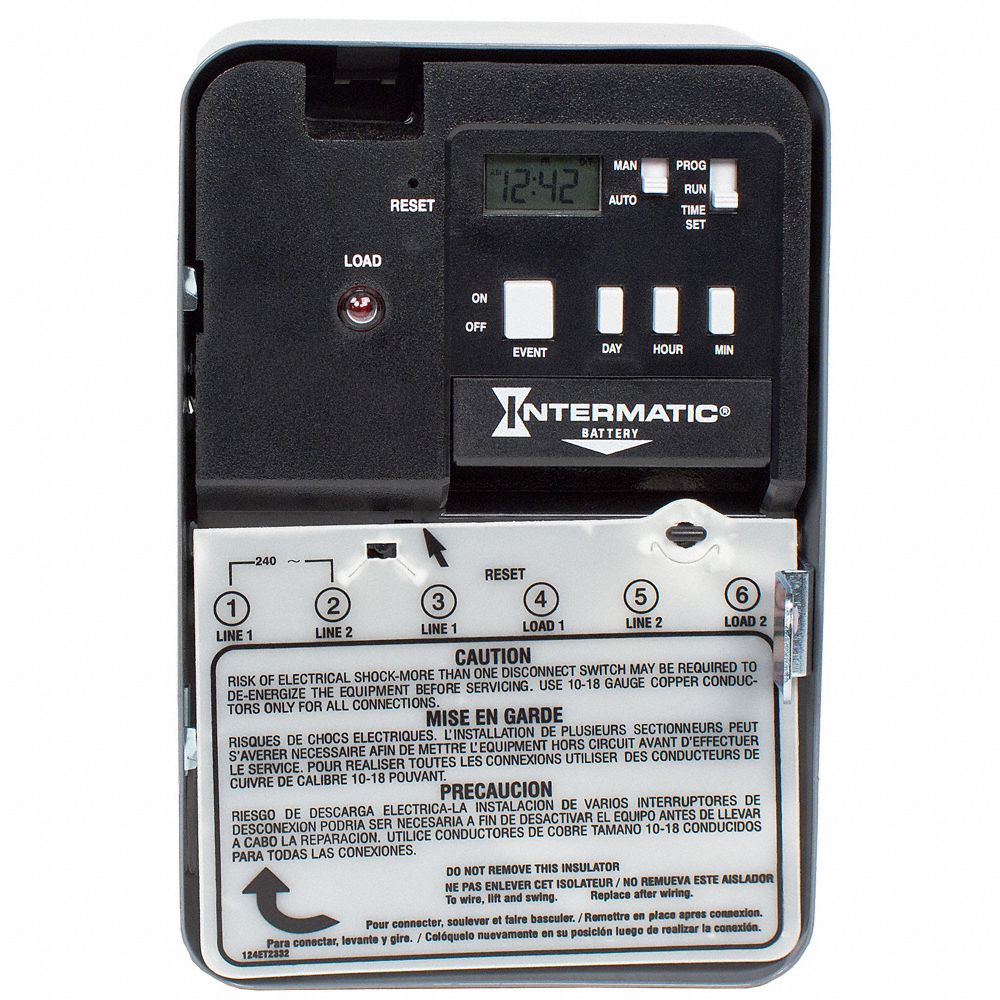

Electronic & Mech Water Heater Timer, DPST

Electronic & Mech Water Heater Timer, DPST

$135.19
$135.19 $135.19
Sale Sold out
Shipping calculated at checkout.
Electronic Water Heater Timer, Number of Channels 1, Contact Form DPST, Voltage 240V AC, Amps 30 A, HP @ 240V 1-1/2, Events Available - Electronic Timer 42, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Snap-In, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 1, Backup Device AA Alkaline Battery, Backup Time 3 yr, Operating Temp. -40 Degrees to 104 Degrees F, Height 7 3/4 in

Specifications

  • Mfr #: EH40
  • Item: Electronic Water Heater Timer
  • Voltage: 240V AC
  • Number of Channels: 1
  • Amps: 30 A
  • Min. Time Setting: 1 min
  • Max. Time Setting: 7 day
  • Contact Form: DPST
  • HP @ 240V: 1-1/2
  • Max. On/Off Cycles: 42
  • Events Available - Electronic Timer: 42
  • Available Actions - Electronic Timer: On/Off
  • Height: 7 3/4 in
  • Width: 5 in
  • NEMA Rating: 1
  • Depth: 3 in
  • Number of Poles: 2
  • Standards: cCSAus Listed
  • Mounting: Snap-In
  • Operating Temp.: -40 Degrees to 104 Degrees F
  • Backup Device: AA Alkaline Battery
  • Enclosure: Metal
  • Description/Special Features: For Water Heaters, LED Load Indicator, With External Switch
  • Event Allocation - Electronic Timer: 1 On/Off Action = 2 Events
  • Backup Time: 3 yr
