Description

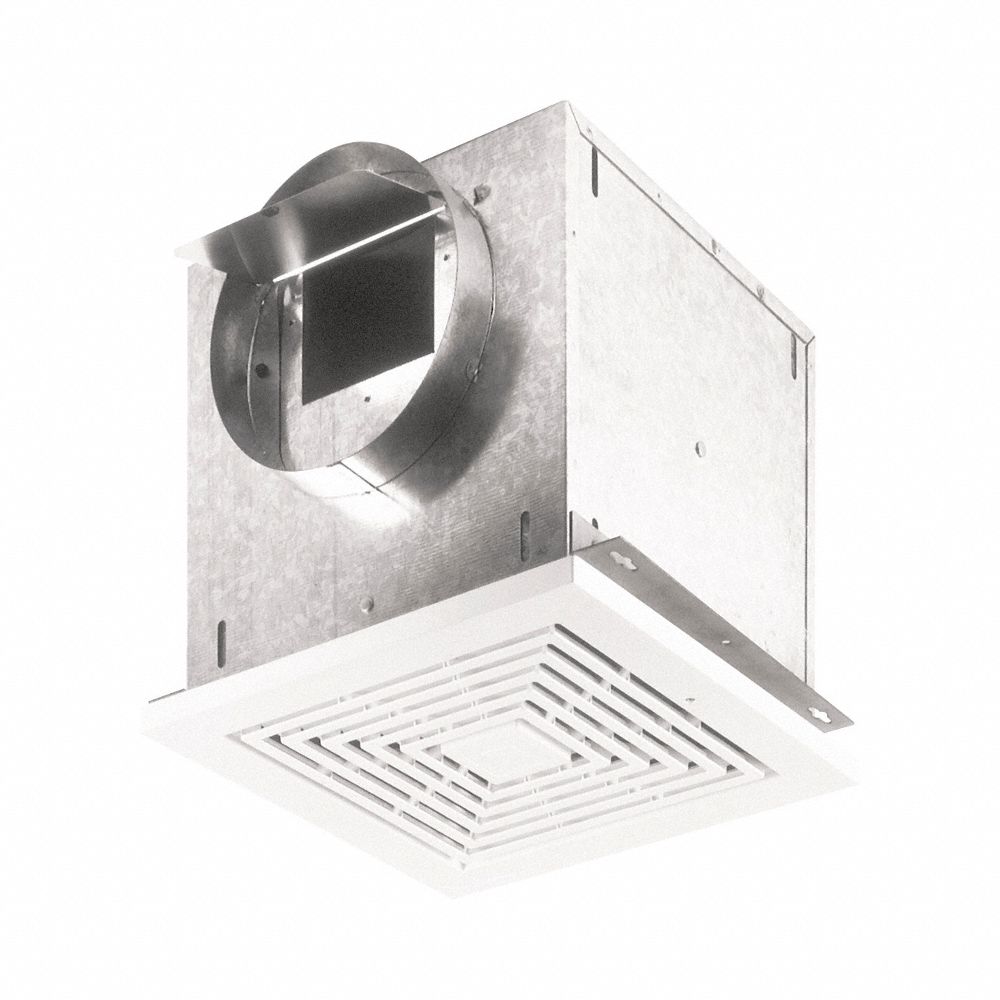

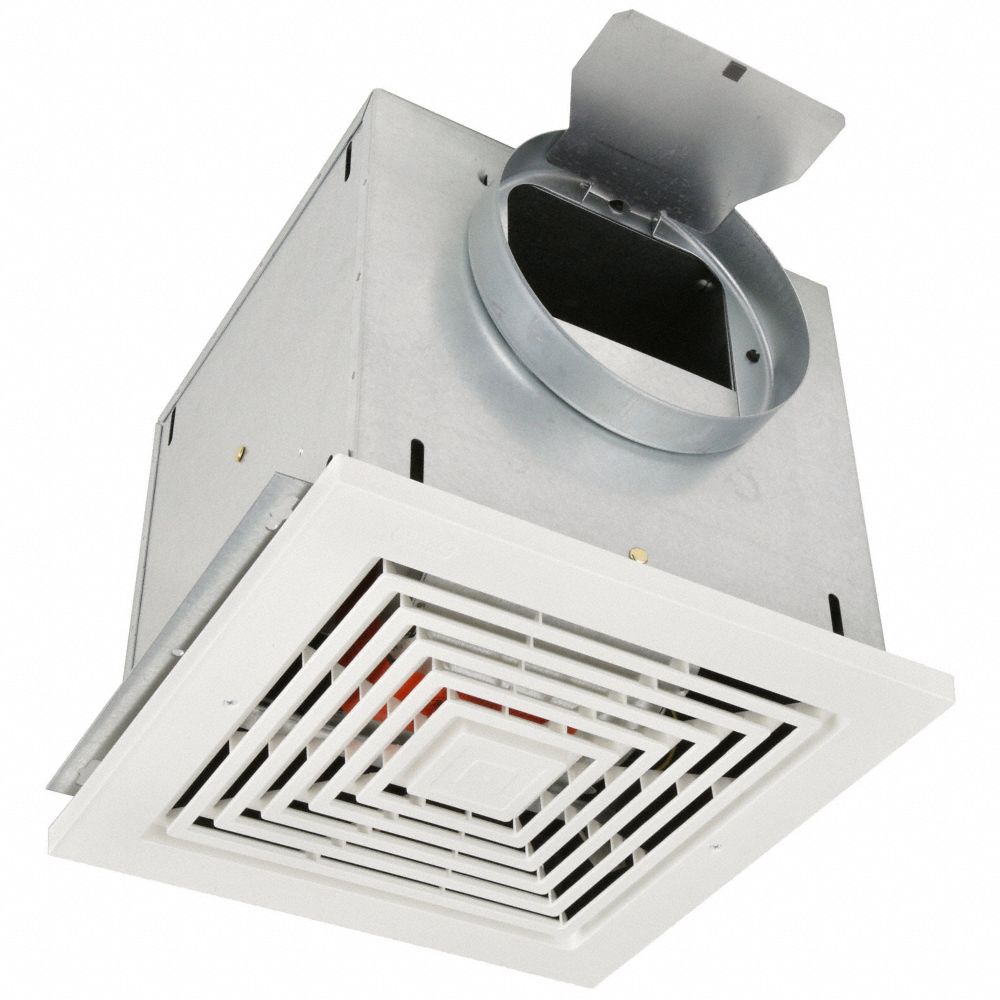

Ceiling Ventilator, Voltage 120V AC, 60 Hz, 1 Phase, Full Load Amps 2.60, Watts 212 W, Motor RPM 905, Motor Type Shaded Pole, Motor Enclosure Open, Motor Insulation Class B, Max. Inlet Temp. 104 Degrees F, Housing Height 11 3/4 in, Housing Width 12 1/4 in, Housing Length 12 1/4 in, Discharge Height 8 in, Discharge Dia. 8 in, Grille Length 14 in, Grille Width 14 in, Grille Material Polymeric, Grille Color White, Mounting Position Ceiling or Wall, Housing Material Galvanized Steel
Specifications
- Mfr #: L300
- Sones @ 0.125-In. SP @ 5 Ft.: 2.9
- CFM @ 0.125-In. SP: 308
- CFM @ 0.750-In. SP: 254
- Housing Height: 11 3/4 in
- CFM @ 0.250-In. SP: 303
- Full Load Amps: 2.60
- Speed Control: 4C331 or 6E897
- Motor Enclosure: Open
- Hz: 60
- CFM @ 0.500-In. SP: 287
- Housing Material: Steel
- Grille Width: 14 in
- Motor Insulation: Class B
- Sones @ 0.100-In. SP @ 5 Ft.: 2.9
- For Use With: General Ventilation Applications
- Watts: 212 W
- CFM @ 1.500-In. SP: -
- Max. Inlet Temp.: 104 Degrees F
- Includes: Automatic Backdraft Damper
- CFM @ 1.000-In. SP: 219
- CFM @ 0.200-In. SP: -
- Sones @ 0.250-In. SP @ 5 Ft.: 3.3

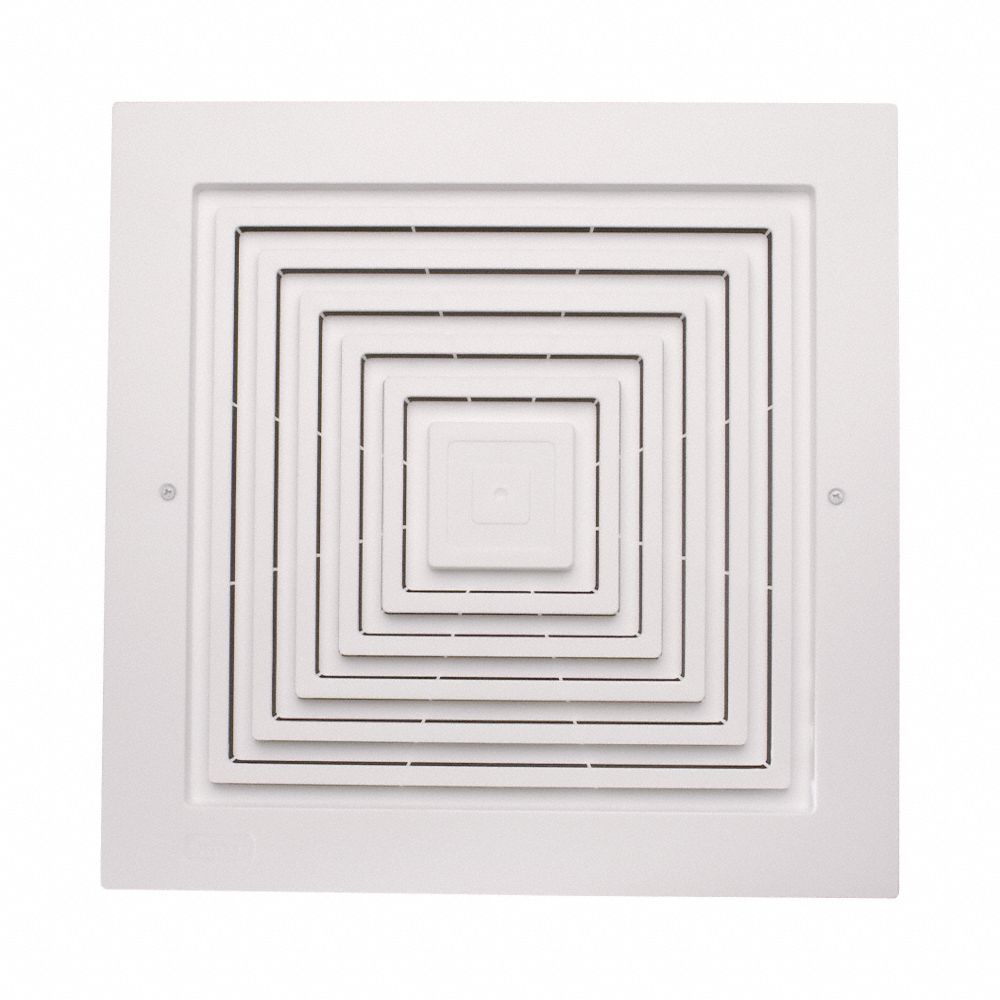

- Grille Material: Polymeric
- Housing Length: 12 1/4 in
- Standards: UL/CuL Listed
- Discharge Dia.: 8 in
- Phase: 1
- CFM @ 0.000-In. SP: 312
- CFM @ 0.375-In. SP: 296
- Mounting Position: Ceiling or Wall
- Discharge Height: 8 in
- Motor Type: Shaded Pole
- CFM @ 1.250-In. SP: -
- CFM @ 0.875-In. SP: -
- Wheel Material: Polymeric
- Grille Color: White
- Voltage: 120V AC
- Housing Width: 12 1/4 in
- CFM @ 0.625-In. SP: 273
- Grille Length: 14 in
- Item: Ceiling Ventilator
- Motor RPM: 905
- CFM @ 0.100-In. SP: 309
- Sones @ 0.000-In. SP @ 5 Ft.: 2.8
- Number of Speeds: Variable
- Blower Wheel Material: Polymeric
- Noise Level @ 0.100 in SP @ 5 ft: 2.9 sones
- Maximum Noise Level: 2.9 sones
- Profile Height Family: High
- Noise Level @ 0.250 in SP @ 5 ft: 3.4 sones
- Roomside Installation: No
- Full Load Current: 2.6 A
- Noise Level @ 0.125 in SP @ 5 ft: 3 sones
- Frequency: 60 Hz
- Lighted: Without Light
- Grille Type: Plastic
- Grille Finish: Painted Enamel
- Overall HxWxD: 11 3/4 in x 12 1/4 in x 12 1/4 in
- Wattage: 212 W
- Sensor Type: None
- Discharge Direction: Horizontal and Vertical
- Profile Width Family: Single-Wide
- Exhaust Airflow @ 0.000 in SP: 319 cfm
- Overall Depth: 12 1/4 in
- Nominal Voltage: 115V AC
- Motor Speed: 905 RPM, 940 RPM
- Includes Grill: Yes
- Nameplate Voltage: 120V AC
- Exhaust Airflow @ 0.250 in SP: 303 cfm, 306 cfm
- Noise Level @ 0.000 in SP @ 5 ft: 2.8 sones
- Maximum Airflow: 312 cfm
- Grille LxW: 14 in x 14 in
- Heater: Without Heater
- Duct Diameter: 8 in
- Duct Shape: Round
- Vent Design: Ducted
- Exhaust Airflow @ 0.100 in SP: 314 cfm
