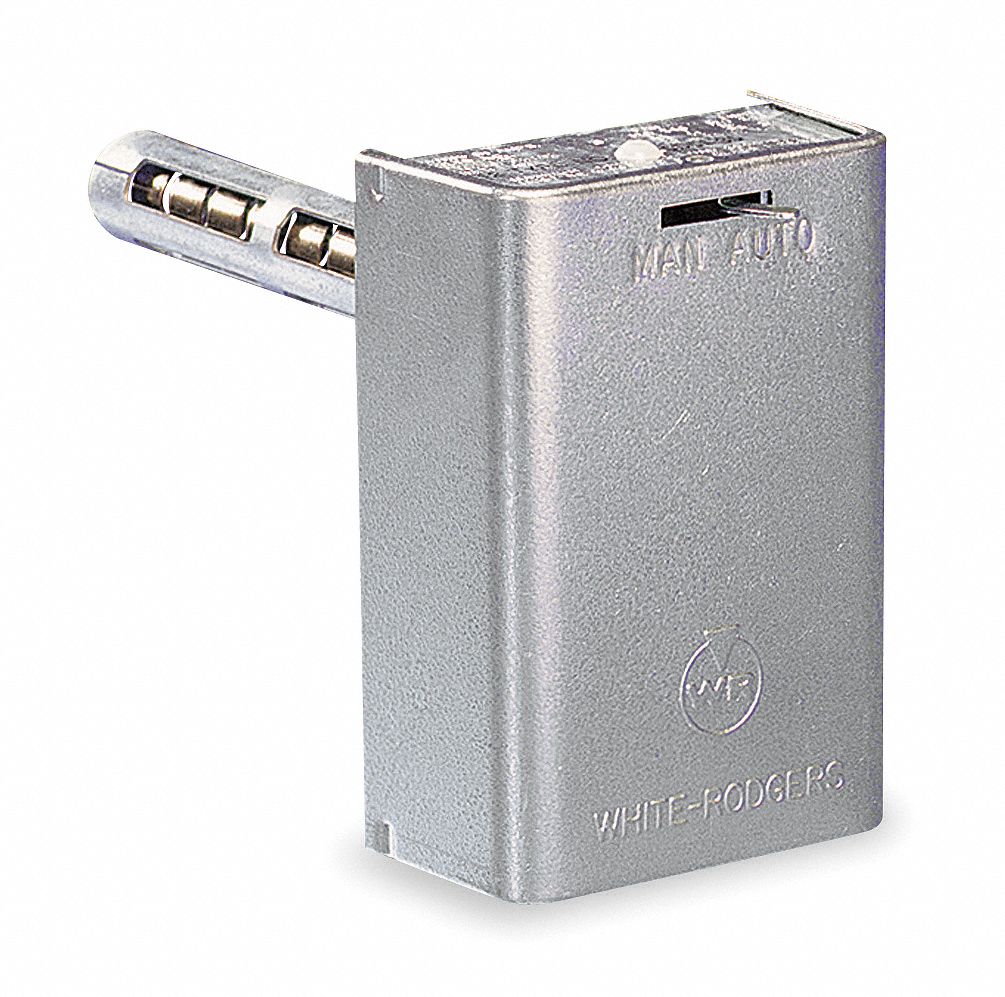

Fan and Limit Control, Adjustable Temp, Auto Reset, Switch Action Fan Close on Rise, Limit Open on Rise, SPDT, Temp. Range (F) Fan 50 to 265, Limit 100 to 300, Insertion, Element Insertion Length (In.) 5 in, Height (In.) 4 3/8 in, Width (In.) 3 in, Depth (In.) 1 5/8 in, -, -, -, -, -, -, -, -, -, Differential Fan Adj. 15 Degrees F, Limit Fixed 25 Degrees F, Fan On Temp. (F) 265 Degrees F, Fan Off Temp. (F) 50 Degrees F, -, -, -, -, -, -, -, 265 Degrees F
-
Mfr #: 5D51-35
-
Item: Fan and Limit Control
-
Temp. Range (F): Fan 50 to 265, Limit 100 to 300
-
Type: Adjustable Temp, Auto Reset
-
Switch Type: SPDT
-
Depth (In.): 1 5/8 in
-
Width (In.): 3 in
-
Height (In.): 4 3/8 in
-
Switch Closes @ (F): 265 Degrees F
-
Resistive Amps @ 120V: -
-
Resistive Amps @ 277V: -
-
Resistive Rating 240V: -
-
Pilot Duty Contacts (VA): -
-
Element Type: Insertion
-
Inductive Amps @ 120V: -
-
Fan Off Temp. (F): 50 Degrees F
-
Circuit No. 1-Inductive 120V: -
-
Switch Action: Fan Close on Rise, Limit Open on Rise
-
Circuit No. 2-Inductive 240V: -
-
Circuit #1 Switch Closes @ (F): -
-
Circuit No. 1-Inductive 240V: -
-
Inductive Amps @ 240V: -
-
Circuit #2 Switch Opens @ (F): -
-
Resistive Rating Circuit #1 @120/240V: -
-
Element Insertion Length (In.): 5 in
-
Circuit No. 2-Inductive 120V: -
-
Differential: Fan Adj. 15 Degrees F, Limit Fixed 25 Degrees F
-
Circuit #1 Switch Opens @ (F): -
-
Fan On Temp. (F): 265 Degrees F
-
Circuit #2 Switch Closes @ (F): -
-
Contact Amp Rating @ 24V: -
