Description

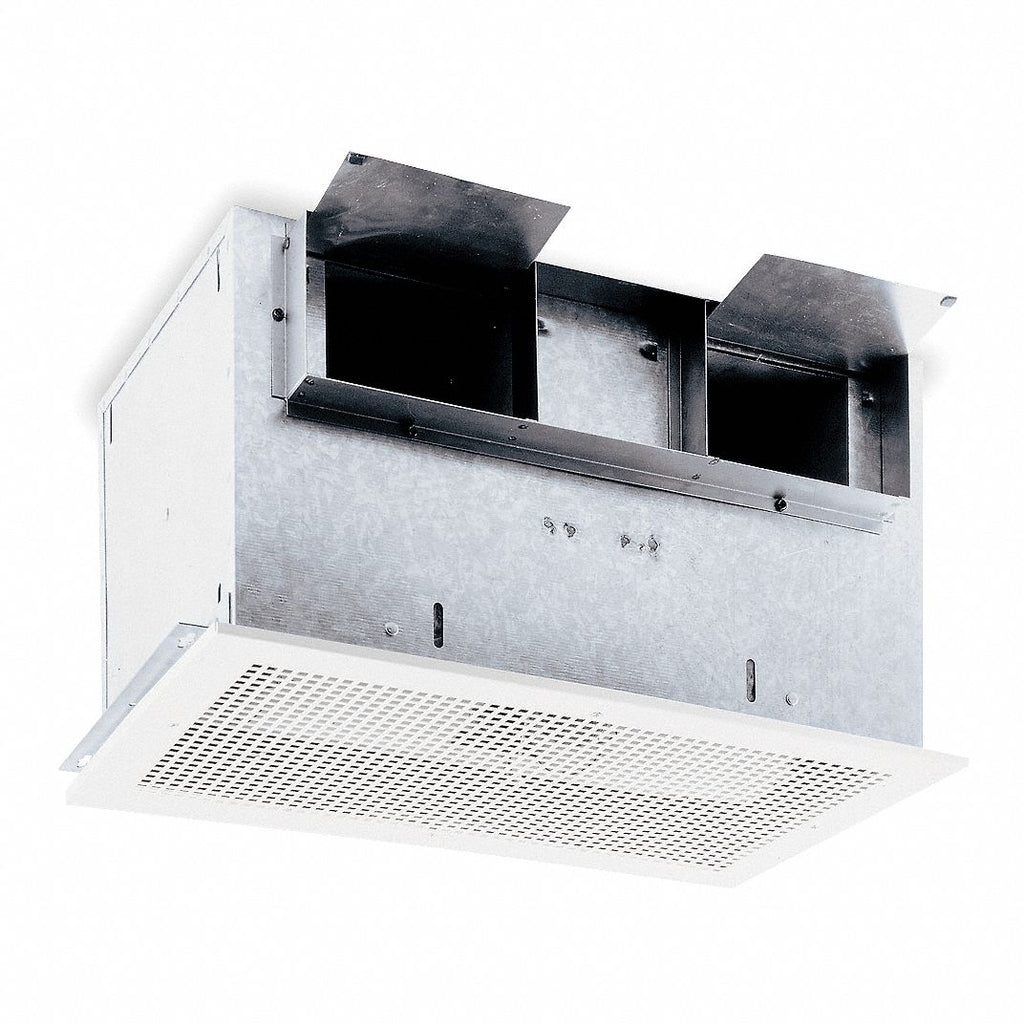

Ceiling Ventilator, Voltage 120V AC, 60 Hz, 1 Phase, Full Load Amps 1.4, Watts 146 W, Motor RPM 735, Motor Type Permanent Split Capacitor, Motor Enclosure Open, Motor Insulation Class B, Housing Height 11 3/4 in, Housing Width 12 1/4 in, Housing Length 21 1/2 in, Discharge Height 4 1/2 in, Discharge Width 18 1/2 in, Grille Length 23 1/4 in, Grille Width 14 in, Grille Material Metal, Grille Color White, Mounting Position Ceiling or Wall, Housing Material Galvanized Steel, Wheel Material Polymeric
Specifications
- Mfr #: L400
- For Use With: General Ventilation Applications
- Voltage: 120V AC
- Housing Length: 21 1/2 in
- Motor Insulation: Class B
- Phase: 1
- Discharge Width: 18 1/2 in
- Motor Enclosure: Open
- Watts: 146 W
- CFM @ 1.000-In. SP: 33
- CFM @ 0.200-In. SP: -
- Item: Ceiling Ventilator
- Housing Material: Galvanized Steel
- CFM @ 0.875-In. SP: -
- Standards: UL/CuL Listed
- Grille Width: 14 in
- Includes: Automatic Backdraft Damper
- CFM @ 0.000-In. SP: 480
- Motor Type: Permanent Split Capacitor
- Sones @ 0.250-In. SP @ 5 Ft.: 2.8
- CFM @ 0.750-In. SP: 182
- Discharge Height: 4 1/2 in
- Sones @ 0.100-In. SP @ 5 Ft.: 2.4
- Hz: 60
- CFM @ 0.250-In. SP: 388
- Housing Width: 12 1/4 in
- CFM @ 0.100-In. SP: 442
- Motor RPM: 735
- Mounting Position: Ceiling or Wall
- CFM @ 0.375-In. SP: 344
- Grille Material: Metal
- Grille Length: 23 1/4 in
- CFM @ 1.500-In. SP: -
- Wheel Material: Polymeric
- Housing Height: 11 3/4 in
- Full Load Amps: 1.4
- CFM @ 0.625-In. SP: 229
- CFM @ 0.125-In. SP: 434
- Speed Control: 4C331 or 6E897
- CFM @ 0.500-In. SP: 299
- Grille Color: White
- Sones @ 0.125-In. SP @ 5 Ft.: 2.3
- CFM @ 1.250-In. SP: -
- Sones @ 0.000-In. SP @ 5 Ft.: 2.0
