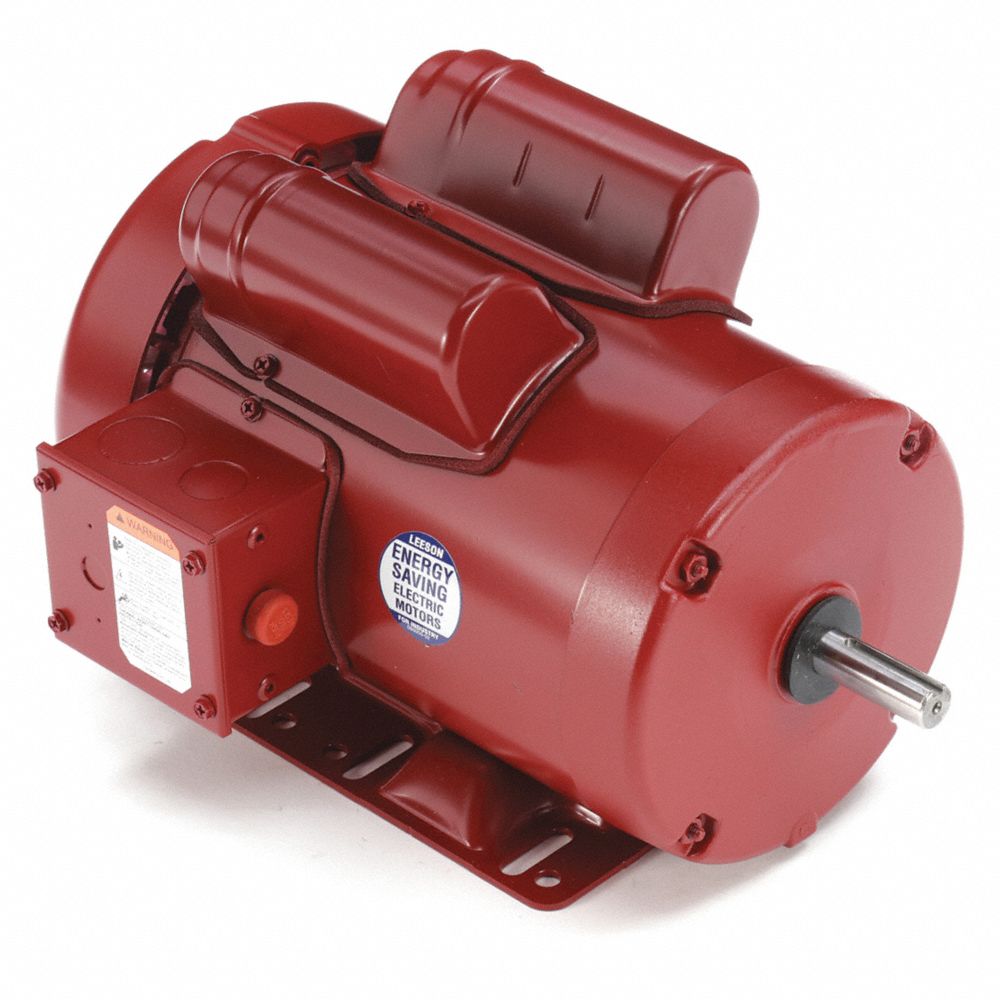

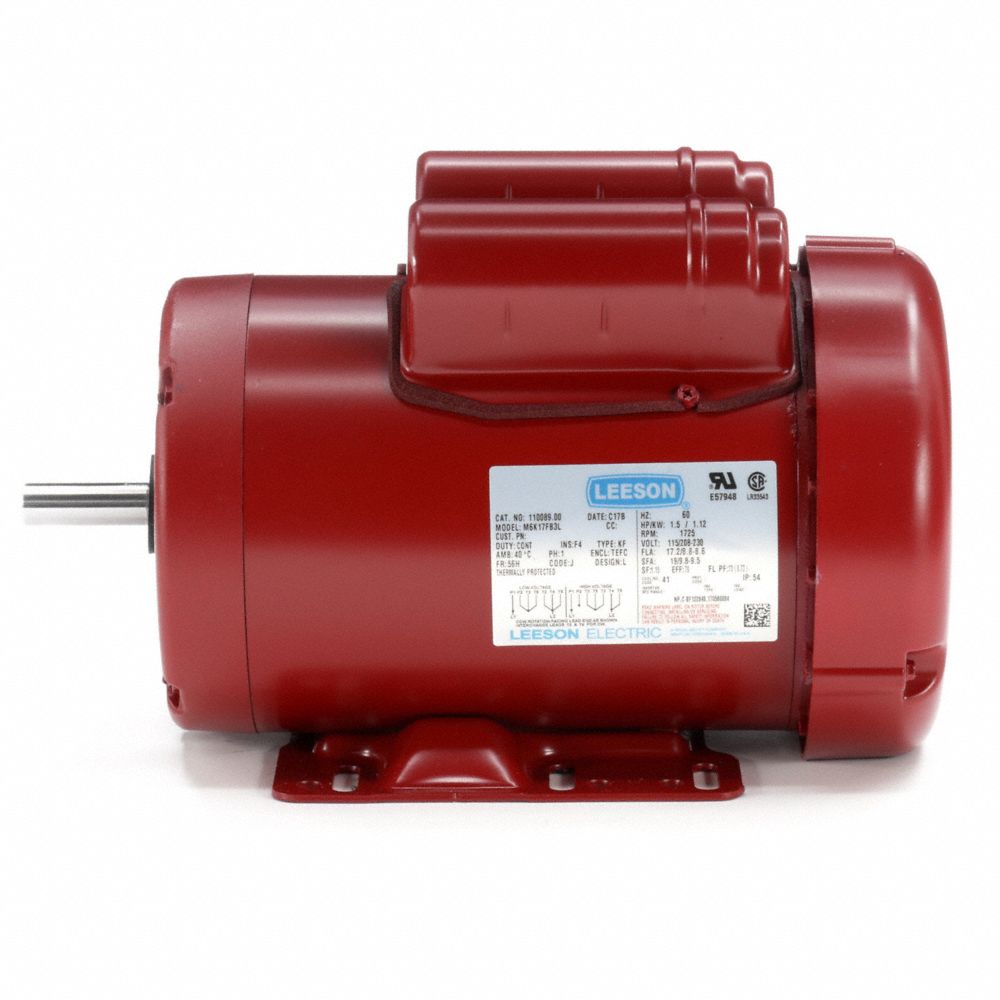

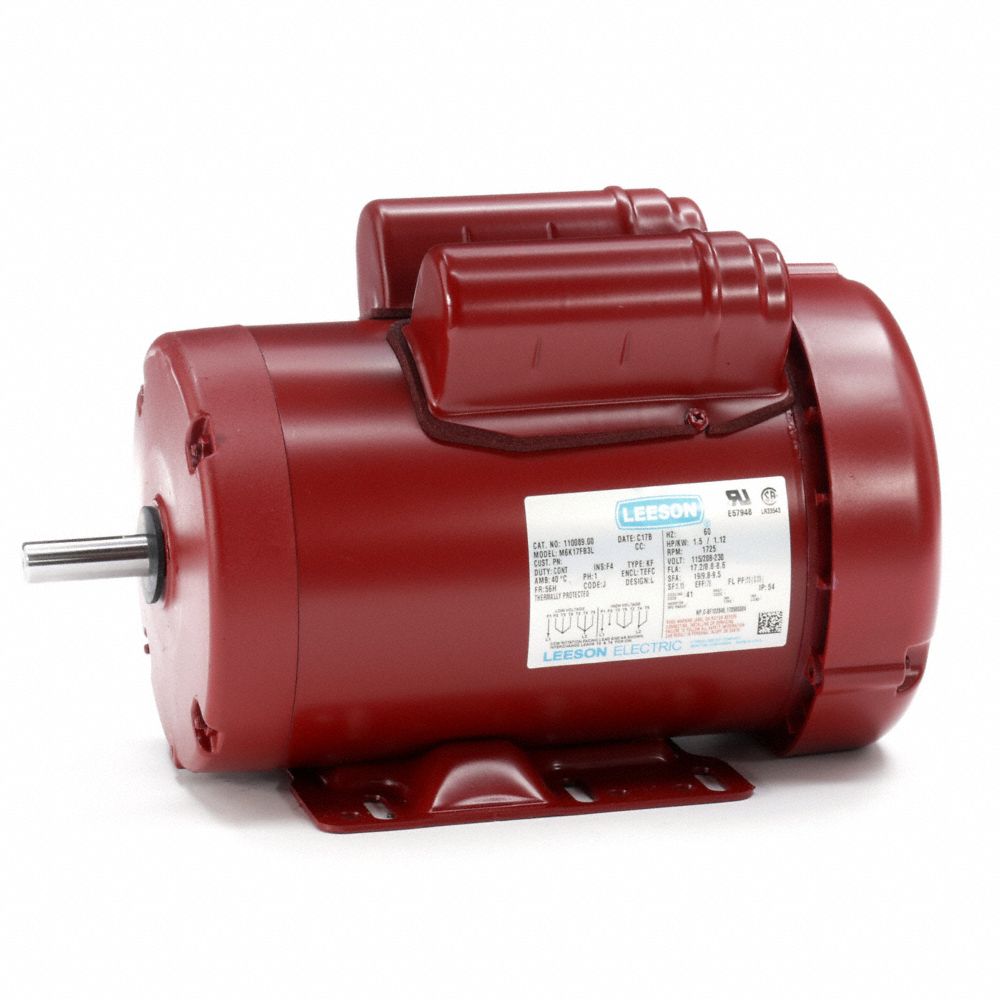

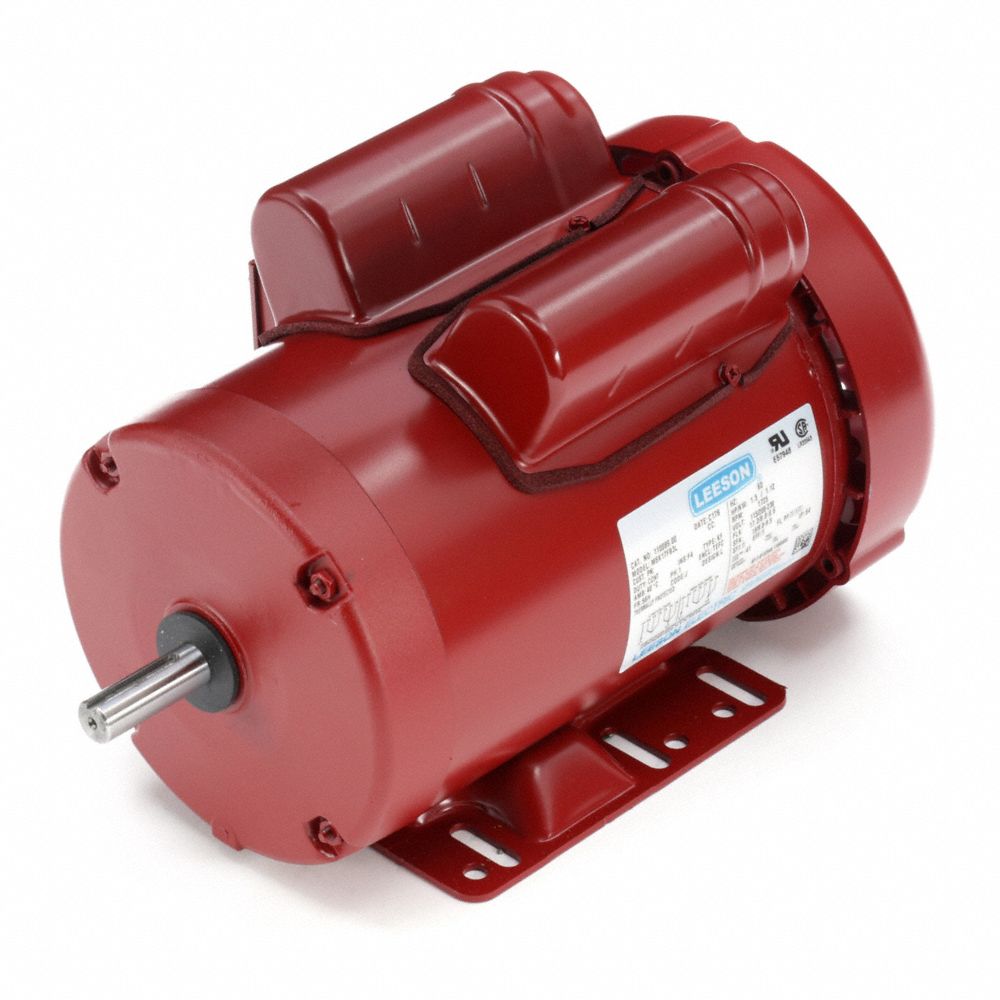

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56H Frame

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

• Mfr #: 110089.00
• Motor Sub Application: High Torque
• Item: Farm Duty Motor
• Motor Design: Capacitor-Start/Run
• Phase: Single
• HP: 1 1/2
• RPM Range: 1,701-1,800
• Voltage: 115/208-230V AC
• Frame: 56H
• Motor Service Factor: 1.15
• Motor Thermal Protection: Manual
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Nameplate RPM: 1,725
• Motor Application: Farm Duty
• Motor Frame Material: Steel
• Motor Mounting Position: Horizontal
• Motor Mounting Type: Rigid Base
• Motor Shaft Design: Keyed
• Motor Shaft Rotation: CW/CCW
• Standards: CSA (LR2025), UL (E49747)
• Length Less Shaft: 11 1/8 in
• Shaft Length: 1 7/8 in
• Overall Length: 13 in
• Full Load Amps: 17.2/8.8-8.6
• Finish: Enamel
• Motor Bearings: Ball
• Max. Ambient Temperature: 40 Degrees C
• Motor Efficiency Group: Standard Efficient
• Ins. Class: B
• Frame Material: Rolled steel
• Nominal Efficiency: 79 %
• Hz: 60
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
• Item - Farm Duty Motors: Farm Duty Motor
• Shaft Dia.: 5/8 in
• Duty: Continuous
• Capacitor Required: Yes
• Max. Ambient Temp.: 40 Degrees C
• Duty Cycle: Continuous
• Usable @ 208V: Yes
• Manufacturers Warranty Length: 1 yr
• Usable @ 200V: No
• No. of Speeds: 1
• Weight: 29 lb
