DAYTON

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56

$228.79
$228.79 $228.79
Sale Sold out
Shipping calculated at checkout.
 More payment options

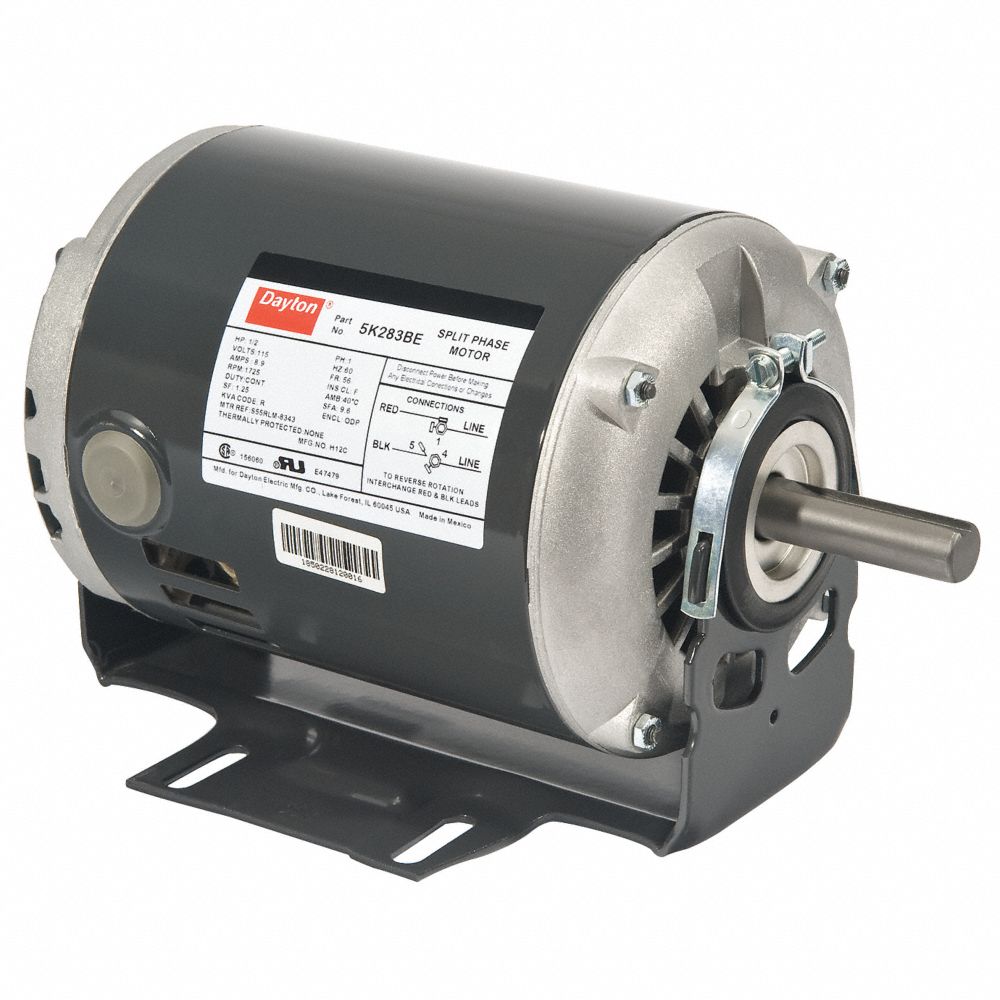

The Dayton 5K283 general purpose motor has a split-phase induction motor design. The 5K283 is an open drip proof motor and features a 56 frame size with a 1/2 HP and 1725 RPM. The motor features a keyed shaft and open drip proof construction. This Dayton Electric Motor has a 56 frame and operates at 1725 RPM. It is open drip proof and is suitable for continuous duty. It comes with a 1/2 HP split phase and has a ball bearing construction.


Specifications

  • Mfr #: 5K283
  • Motor Bearings: Ball
  • Motor Service Factor: 1.25
  • Manufacturers Warranty Length: 1 yr
  • Motor Application: General Application
  • HP: 1/2
  • Voltage: 115V AC
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Thermal Protection: None
  • Shaft Dia.: 5/8 in
  • Duty: Continuous
  • Frame Material: Rolled steel
  • Nameplate RPM: 1,725
  • Motor Design: Split-Phase
  • Item: General Purpose Motor
  • RPM Range: 1,701-1,800
  • Nominal Efficiency: 58.8 %
  • Full Load Amps: 8.9
  • Motor Frame Material: Rolled Steel
  • No. of Speeds: 1
  • Motor Mounting Type: Cradle Base
  • Ins. Class: F
  • Standards: CSA (156060), UL (E47479)
  • Overall Length: 10 5/16 in
  • Shaft Length: 1 7/8 in
  • Motor Enclosure Design: Open Dripproof
  • Length Less Shaft: 8 3/8 in
  • Hz: 60
  • Motor Shaft Rotation: CW/CCW
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Shaft Design: Keyed
  • RPM Group: 1701-1800
  • Frame: 56
  • Motor Efficiency Group: Standard Efficient
  • Duty Cycle: Continuous
