Description

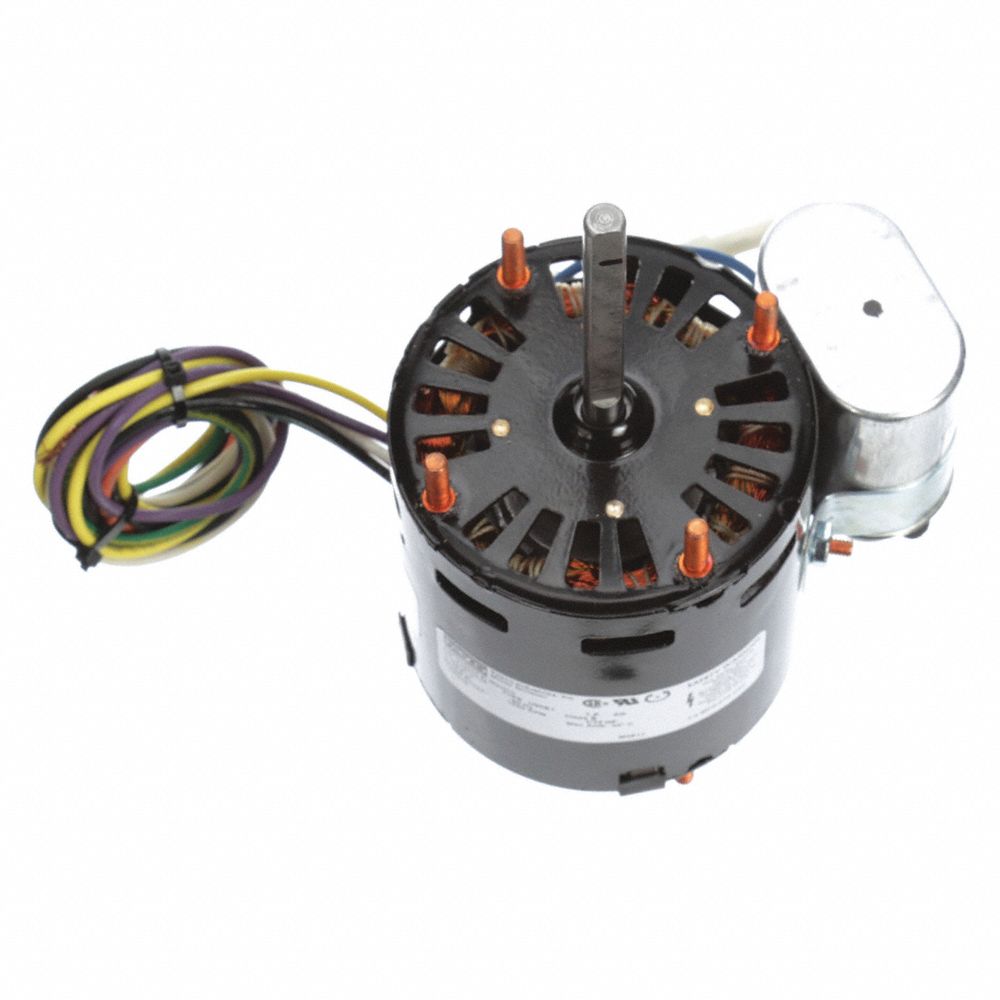

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 1.10/0.60, 3.3 in Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 20 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Extended Stud, Motor Mounting Position All Angle
Specifications:
Voltage: 115/230V AC
Nameplate RPM: 1,550 RPM
Motor Enclosure Design: Open Air-Over
Number of Speeds: 1
HP: 1/12
RPM Range: 1,501-1,600
Length Less Shaft: 4 1/16 in
Shaft Length: 3 in
Ins. Class: B
Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Design: Permanent Split Capacitor
Duty: Continuous
Shaft Dia.: 5/16 in
Mounting Stud Location: 4/Both Ends
Frame: 3.3
Standards: CSA Certified, UL Recognized
Full Load Amps: 1.10/0.60
Motor Shaft Rotation: CW/CCW
Max. Ambient Temp.: 40 Degrees C
Motor Thermal Protection: Auto
Motor Bearings: Sleeve
Includes: 7.5 MFD 370VAC Capacitor
Motor Shaft Design: Flat
Capacitor Required: Included
Motor Mounting Type: Stud
Number of Shafts: 1
No. of Speeds: 1
Phase: Single
Stud/Base Mtg. Pattern: 2-7/8 in
Motor Application: HVAC/R
Motor Service Factor: 1
Item: OEM Replacement Motor
Mounting Pattern: 2-7/8
Motor Sub Application: OEM Replacement
Application: HVAC/R
Hz: 60 Hz
Body Dia.: 3 5/16 in
Stud Size: #10-32
Motor Mounting Position: All Angle
Mounting Holes: (8) #10-32
Mounting Stud Pattern: 2 7/8 in
Motor Frame Material: Steel
Overall Length: 6 7/8 in
Lead Length: 20 in
Usable @ 200V: No
Weight: 4 lb
Bolt Circle Dia.: 2 7/8 in
Usable @ 208V: No
Conduit Box Position: F3
