FASCO

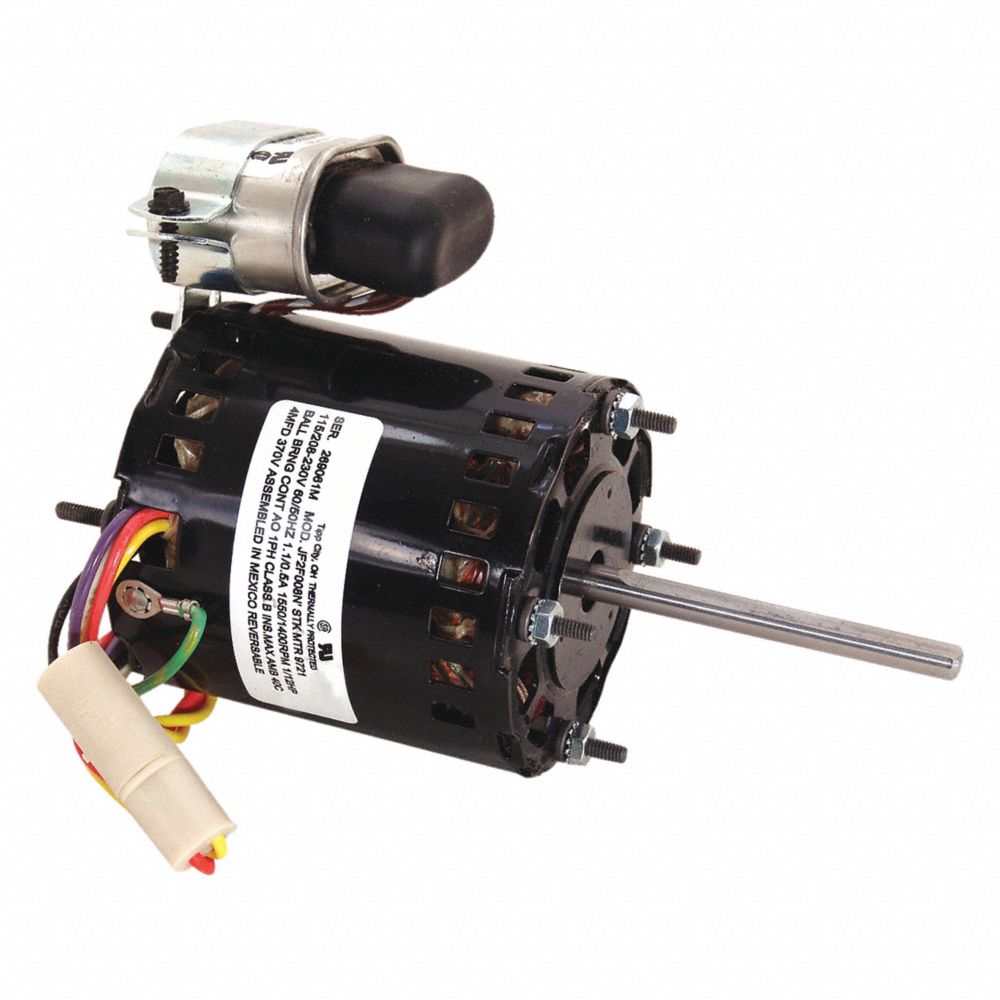

HVAC Motor, 115/208 to 230V, 3-1/8 In. L

HVAC Motor, 115/208 to 230V, 3-1/8 In. L

Regular price $105.30
Regular price $105.30 Sale price $105.30
Sale Sold out
Shipping calculated at checkout.

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 HP, Nameplate RPM 1,350, 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 0.90, 0.43,1.10 0.49, 3.3 in Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 21 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Extended Stud, Motor Mounting Position All Angle

Specifications

  • Mfr #: 9721
  • Voltage: 115/208-230V AC
  • Nameplate RPM: 1,550/1,350 RPM
  • Motor Enclosure Design: Open Air-Over
  • HP: 1/12
  • RPM Range: 1,501-1,600
  • Body Dia.: 3 5/16 in
  • Mounting Pattern: 2 x 2
  • Stud/Base Mtg. Pattern: 2 in x 2 in
  • Motor Thermal Protection: Auto
  • Frame: 3.3
  • Full Load Amps: 0.90, 0.43,1.10 0.49
  • No. of Speeds: 1
  • Phase: Single
  • Shaft Dia.: 5/16 in
  • Length Less Shaft: 3 9/16 in
  • Motor Bearings: Ball
  • Shaft Length: 3 1/4 in
  • Duty: Continuous
  • Motor Mounting Type: Stud
  • Capacitor Required: Included
  • Item: HVAC Motor
  • Motor Application: HVAC/R
  • Motor Design: Permanent Split Capacitor
  • Standards: CSA Certified, UL Recognized
  • Mounting Stud Location: 4/Both Ends
  • Application: Replaces 1/12, 1/15 and 1/20 hp PSC and Less Efficient Shaded Pole Motors In Bohn, Chandler, Climate Control and Larkin Refrigeration Equipment
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Service Factor: 1
  • Hz: 60 Hz
  • Includes: Reversing Plug, Extra Mounting Nuts
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Number of Shafts: 1
  • Motor Sub Application: Direct Drive Fan/Blower
  • Motor Shaft Rotation: CW/CCW
  • Motor Shaft Design: Keyed
  • Overall Length: 6 7/8 in
  • Usable @ 208V: Yes
  • Motor Mounting Position: All Angle
  • Stud Quantity: 4
  • Usable @ 200V: No
  • Mounting Holes: 4
  • Lead Length: 21 in
  • Bolt Circle Dia.: 2 13/16 in
  • Weight: 5 lb
  • Motor Frame Material: Steel
