TACO

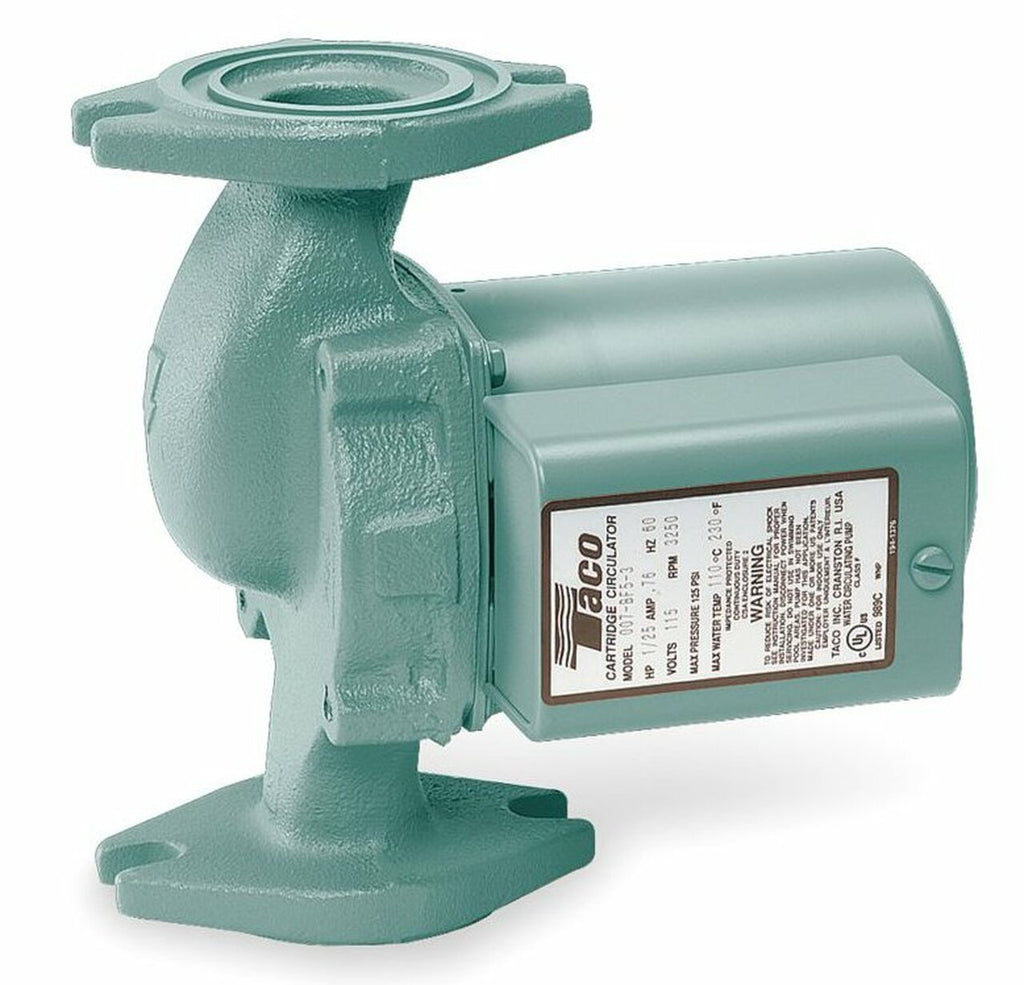

Hydronic Circulating Pump, 1/25 hp, 115V, 1 Phase, Flange Connection

Hydronic Circulating Pump, 1/25 hp, 115V, 1 Phase, Flange Connection

Regular price $258.69
Regular price $258.69 Sale price $258.69
Sale Sold out
Shipping calculated at checkout.
Hydronic Circulating Pump, Intake Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/25, Maximum Feet of Head 16 ft, Maximum Flow Rate @ 10 Feet of Head 15 gpm, Maximum Flow Rate @ 50 Feet of Head 12 gpm, Maximum Flow Rate @ 15 Feet of Head 8 gpm, Maximum Flow Rate @ 1 Foot of Head 2 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard

Specifications

  • Mfr #: 008-F6
  • Voltage: 115V
  • Item: Hydronic Circulating Pump
  • HP: 1/25 hp
  • Housing Material: Cast iron
  • Phase: 1
  • Phase - Pumps: 1
  • Inlet/Outlet Size: 3/4 in to 1-1/2 in
  • Pump Type: Permanent Split Capacitor, Impedance Protected
  • Connection Style: Flange
  • Max. GPM @ Head: 14.5 gpm @ 1 ft
  • Min. GPM @ Head: 1 gpm @ 15 ft
  • Series: 008-f6
  • Housing Material - Pumps: Cast Iron
  • Number of Speeds: 1
  • Loop Configuration: Closed
  • Features: Maintenance Free, Wet Rotor
  • Shaft Material: Ceramic
  • Amps: 0.79
  • Best Efficiency GPM @ Head: 9 gpm @ 9 ft
  • Includes: Flange Gaskets
  • Thermal Protection: Impedance
  • Manufacturers Warranty Length: 3 yr
  • Pump Mount: In Line
  • Voltage - Pumps: 115V AC
  • Max. Temp.: 230 Degrees F
  • RPM: 3,250 RPM
  • Drive Type: Direct
  • Impeller Material: Polypropylene
  • Face to Face Dimension: 6 3/8 in
  • Max. Operating Pressure: 125 psi
  • Flange/Union Included: No
  • Mechanical Seal: No
  • Shut-Off: 15 ft
  • Standards: UL-CUS
  • HVAC Circulating Pump Type: Hydronic Circulating Pump
  • Length: 6 in
  • Width: 4 3/4 in
  • Overall Height: 6.38 in
  • Overall Length: 6 in
  • Overall Width: 4.75 in
  • For Use With: Potable Systems
  • Length (Straight Wireway): 6 in
  • Phase and Brand: TACO Single Phase
  • Compatible Discharge Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
  • Maximum Flow Rate @ 5 Feet of Head: 12 gpm
  • Maximum Media Temperature: 230 Degrees F
  • Manufacturer Warranty Length: 3 yr
  • Body Gasket Material: EPDM
  • Maximum Feet of Head: 16 ft
  • Pump Housing Material: Cast Iron
  • Brand and Connection Combo Broad: Taco, Flanged
  • Series Family: 00
  • For Use With Potable Systems: Yes
  • Nameplate Voltage: 115V AC
  • Flange or Union Included: No
  • Maximum Operating Pressure: 125 psi
  • Rotor Type: Wet
  • Maximum RPM: 3,250 RPM
  • Horsepower: 1/25
  • Maximum Flow Rate @ 10 Feet of Head: 15 gpm
  • Maximum Flow Rate @ 50 Feet of Head: [DELETE]
  • Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
  • Brand and Connection Combo: TACO , Flange Connection
  • Frequency: 60 Hz
  • Maximum Flow Rate @ 15 Feet of Head: 8 gpm
  • Minimum Media Temperature: 40 Degrees F
  • Connection Type: Flange
  • Maximum Flow Rate @ 1 Feet of Head: 2 gpm
