Description

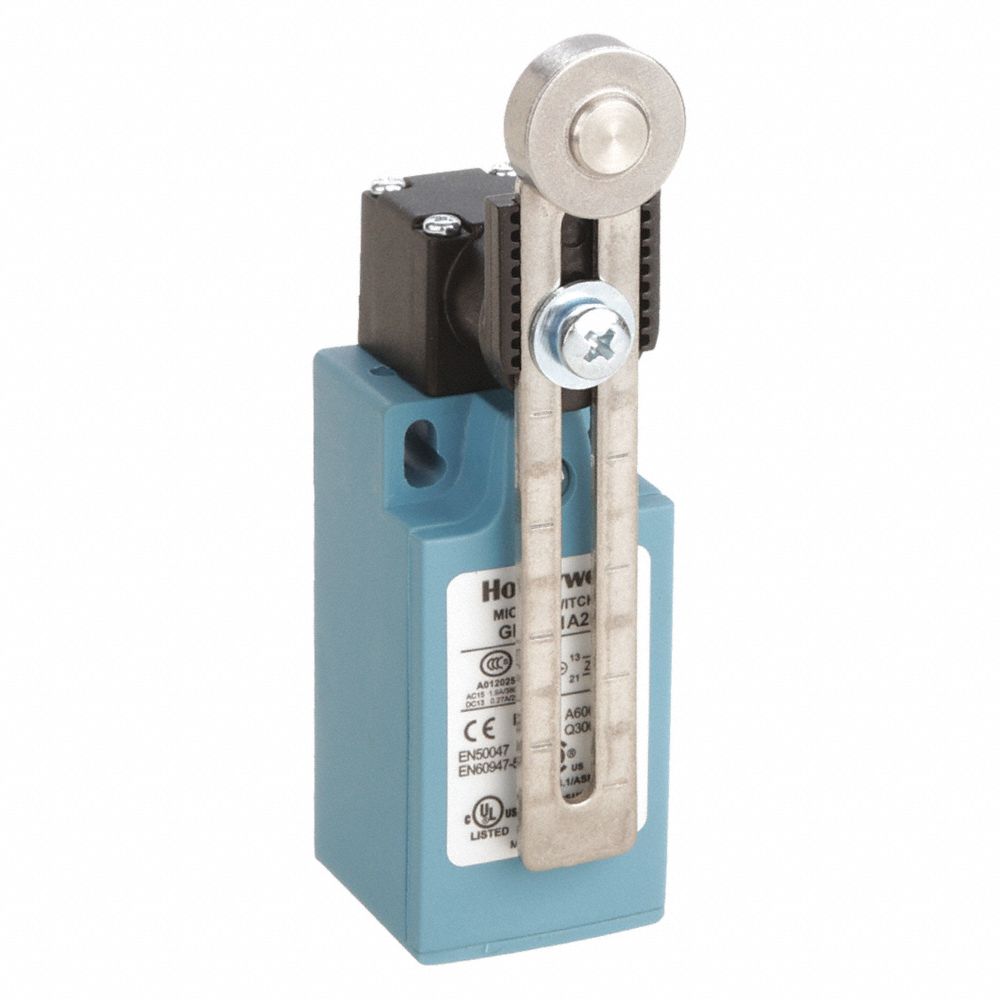

General Purpose Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.79 in to 2.56 in, Body Height - Limit Switch 2.44 in, Body Width - Limit Switch 1.2 in, Body Depth - Limit Switch 1.22 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13
Specifications
- Mfr #: GLLA01A2B
- Item: Limit Switch
- Basic Actuator Style - Limit Switch: Rotary
- Actuator Style - Limit Switch: Roller Lever, Rotary
- Contact Form- Switches: 1NC/1NO
- Actuator Location - Limit Switch: Side
- AC Contact Rating - Limit Switch: 10A @ 300V
- DC Contact Rating - Limit Switch: 10A @ 250V
- Body Style - Limit Switch: Miniature
- Mounting - Limit Switch: Surface
- Mounting Hole Pattern - Limit Switch: 2 Hole Horizontal
- NEMA Rating: 1, 12, 13
- Basic Actuator Style (Limit Switch): Rotary
- Wiring Entry: 1/2 in NPT
- Boot Sealed Actuator - Limit Switch: No
- Stem Thread - Limit Switch: No Stem
- Body Width - Limit Switch: 1.2 in
- Width: 1.20"
- Boot Sealed Actuator (Limit Switch): No
- Body Style (Limit Switch): Miniature
- Movement: CCW, CW
- Electrical Connection: Screw Terminals
- Actuator Length: 0.79" to 2.56"
- Body Depth - Limit Switch: 1.22 in
- Operating Force: 1.06 in-lb
- Actuator Location (Limit Switch): Side
- DC Contact Rating: 10A @ 250V
- Amps: 10
- Height: 1.22"
- Contact Form - Limit Switch: 1NC/1NO
- Operating Temp. Range: 14 Degrees to 176 Degrees F
- Actuator Style (Limit Switch): Rotary, Roller Lever
- Voltage Rating: 300VAC/250VDC
- Actuator Style: Rotary Lever Arm
- Limit Switch Style: General Purpose Limit Switch
- Travel: Differential Travel 18 Degrees , Maximum Pretravel 30 Degrees , Minimum Over Travel 40 Degrees
- Mounting Hole - Limit Switch: (2) 0.16 in dia
- Number of Poles: 1
- Actuator Location: Side
- Series: GLL/GLS
- Depth: 3.84"
- Contact Form: 1NC/1NO, SPDT
- IP Rating: 65
- Arm Material: Metal
- Actuator Length - Limit Switch: 0.79 in to 2.56 in
- Body Height - Limit Switch: 2.44 in
- Body Material: plastic
- Mounting Hole Spacing - Limit Switch: 0.87 in
- AC Contact Rating: 10A @ 300V
- Standards: CCC, CE, cULus
