Description

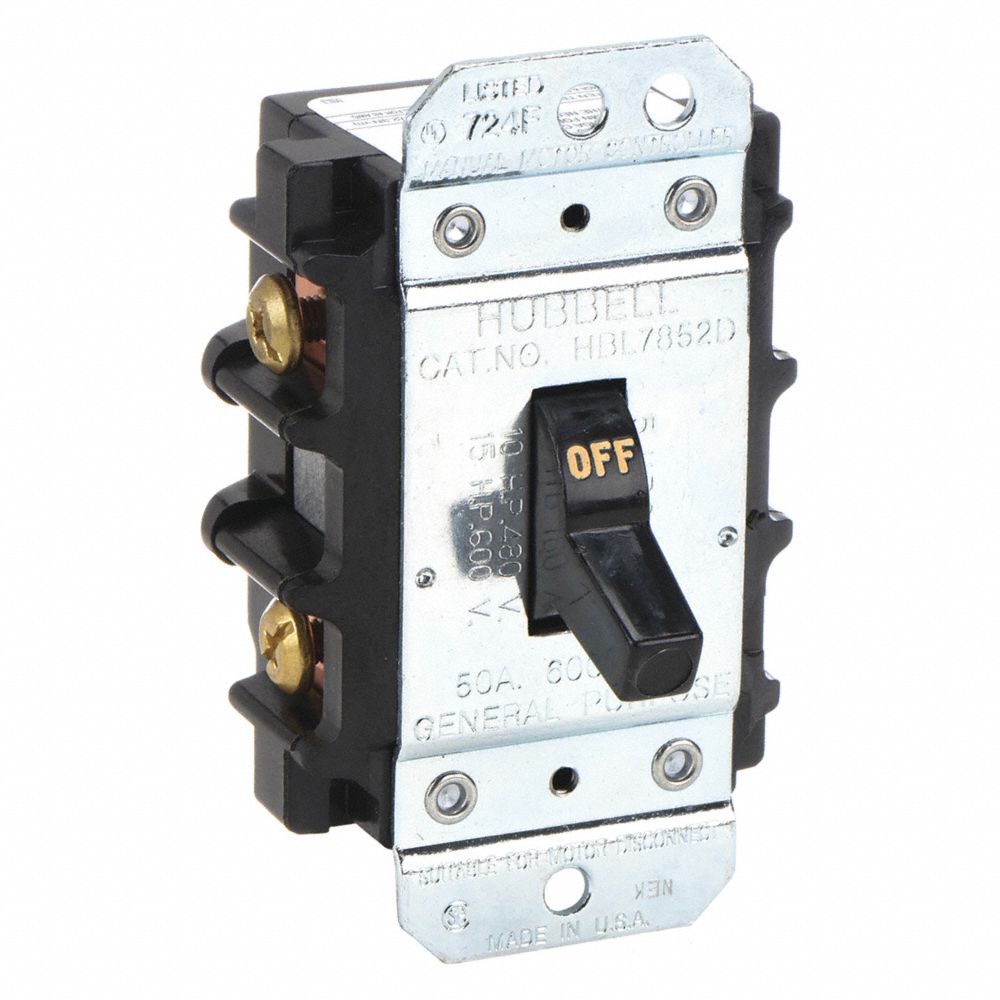

Manual Motor Switch, Toggle Operator, Enclosure NEMA Rating No Enclosure, Amps AC 50 A, Starter Type NEMA Style, Number of Poles 2, Max. Voltage 600V AC, Height 3.78 in, Width 2.25 in, Depth 2.44 in, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 230V 5 hp, Standards CSA, UL, Pilot Light No, Phase Loss Sensitivity No
Specifications
- Mfr #: HBL7852D
- Operator: Toggle
- Enclosure NEMA Rating: No Enclosure
- Depth: 2.44 in
- Height: 3.78 in
- Amps AC: 50 A
- Item: Manual Motor Switch
- Width: 2.25 in
- Starter Type: NEMA Style
- Number of Poles: 2
- Max. Voltage: 600V AC
- HP @ 1 Phase - 120V: 2 hp
- Pilot Light: No
- Standards: CSA, UL
- Description/Special Features: Back and Side Wired
- HP @ 1 Phase - 230V: 5 hp
- Phase Loss Sensitivity: No
