MILLER ELECTRIC

MIG Welder, Millermatic 141, 1, 120V AC, 30 to 140A DC, 20 %

MIG Welder, Millermatic 141, 1, 120V AC, 30 to 140A DC, 20 %

Regular price $1,439.09
Regular price $1,439.09 Sale price $1,439.09
Sale Sold out
Shipping calculated at checkout.
Mig Welder, Millermatic 141, Welding Processes Flux Core, MIG, Input Voltage 120V AC, Welded Material Mild Steel, Stainless Steel, Aluminum, Mild Steel - Material Thickness 24 ga to 3/16 in, Portability Handheld Portable, 1 Phase, Aluminum - Material Thickness 14 to 18 ga, Stainless Steel - Material Thickness 20 ga to 1/8 in, Rated Output 90A @ 18.5V DC, Duty Cycle 20 Percent, 60 Hz, 20 Input Amps, Output Range 30 to 140A DC, Wire Size 0.023 in to 0.035 in, Flux 0.030 in to 0.035 in

Specifications

  • Mfr #: 907612
  • Promotion Restriction: Not eligible for promotion
  • Item: MIG Welder
  • Series: Millermatic 141
  • Input Voltage: 120V AC
  • Welded Material: Mild Steel, Stainless Steel, Aluminum
  • Mild Steel - Material Thickness: 24 ga to 3/16 in
  • Phase: 1
  • Welding Processes: Flux Core, MIG
  • Hz: 60
  • Portability: Handheld Portable
  • Rated Output: 90A @ 18.5V DC
  • Application: Metal Fabrication, Autobody, Farm/Home, Maintenance and Repair
  • Overall Height: 12 1/2 in

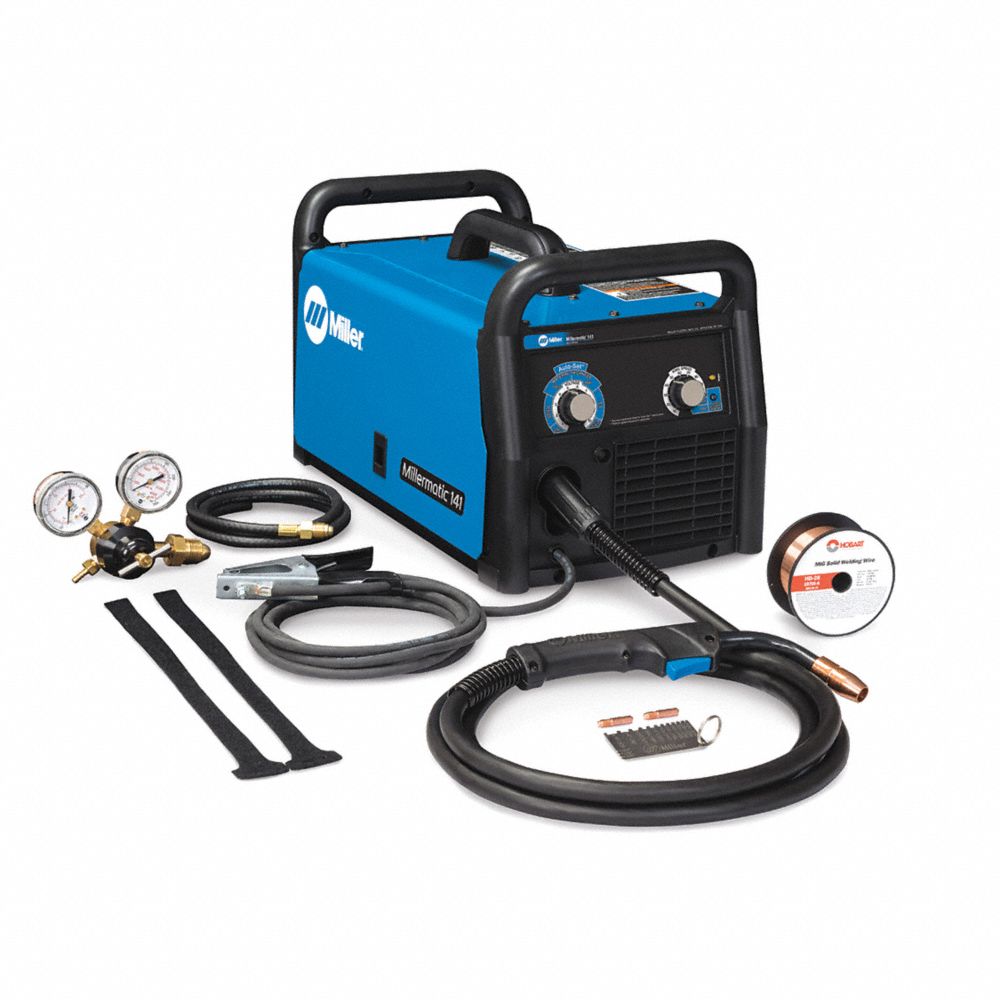

  • Includes: Millermatic 141, 6.5-ft (2 m) power cord with plug, 10-ft (3 m) M-100 MIG gun and cable assembly, 10-ft (3 m) work cable with clamp, Argon and AR/CO2 mix flow gauge regulator with gas hose, Hobart(R) spool of .030- in (0.8 mm) solid wire, Quick Select drive rolls for .024-in (0.6 mm) or .030/.035- in (0.8/0.9 mm) solid wire, and .030/.035- in (0.8/0.9 mm) flux-cored wire, Two contact tips for .030- in (0.8 mm) wire, Material thickness gauge (#229 895), Hook-and-loop cord wraps
  • Duty Cycle: 20 %
  • Features: Auto-Set, Auto Spoolgun Detect, Smooth-StartTM, Angled Cast-Aluminum Drive System, Quick SelectTM Drive Roll, Thermal Overload Protection
  • Wire Size: 0.023 in to 0.035 in, Flux 0.030 in to 0.035 in
  • Standards: CSA certified
  • Input Amps: 20
  • Output Range: 30 to 140A DC
  • Aluminum - Material Thickness: 14 to 18 ga
  • Overall Width: 20 1/2 in
  • Stainless Steel - Material Thickness: 20 ga to 1/8 in
  • Overall Depth: 11 1/4 in
  • For Material Type: Mild Steel, Stainless Steel
  • Power Cord Included: Yes
  • MIG Welding Output @ Duty Cycle: 40 A @ 16 V, 100%, 90 A @ 18.5 V, 20%
  • Weight: 51 lb
  • For Wire Type: Flux-Cored, Solid
  • For Minimum Material Thickness: 24 ga (Mild Steel)
  • Color: Blue
  • Max. Amperage Range (MIG): Less than 150 A
  • Rated Output at Duty Cycle (MIG): 90 A @ 20%, 40 A @ 100%
  • Minimum Wire Diameter: 0.024 in (Solid Steel), 0.024 in (Stainless Steel), 0.03 in (Flux-Cored), 0.6 mm (Solid Steel), 0.6 mm (Stainless Steel), 0.8 mm (Flux-Cored)
  • Kit Includes: Drive Rolls, Contact Tips, MIG Gun, Work Cable with Clamp, Flow Gauge/Regulator & Gas Hose, Solid Wire
  • For Maximum Material Thickness: 3/16 in (Mild Steel)
  • Welding Mode: CV
  • Input Frequency: 60 Hz
  • Amperage Range: 30 to 140 A
  • MIG Welding Maximum Output Current: 140 A
  • Power Cord Length: 6 1/2 ft
  • Plug Type: 5-15P
  • Maximum Wire Feed Speed: 360 in/min
  • Maximum Wire Diameter: 0.035 in (Flux-Cored), 0.03 in (Solid)
  • Welder Kit Type: MIG Package
  • Max. Wire Diameter: 0.03 in (Solid), 0.035 in (Flux-Cored)
  • Minimum Wire Feed Speed: 15 in/min
  • Input Voltage (Nominal): 120V
  • MIG Welding Minimum Output Current: 30 A
  • Polarity: DC
  • Model: 907612
  • Maximum Amperage Range (MIG): Less than 150 A
