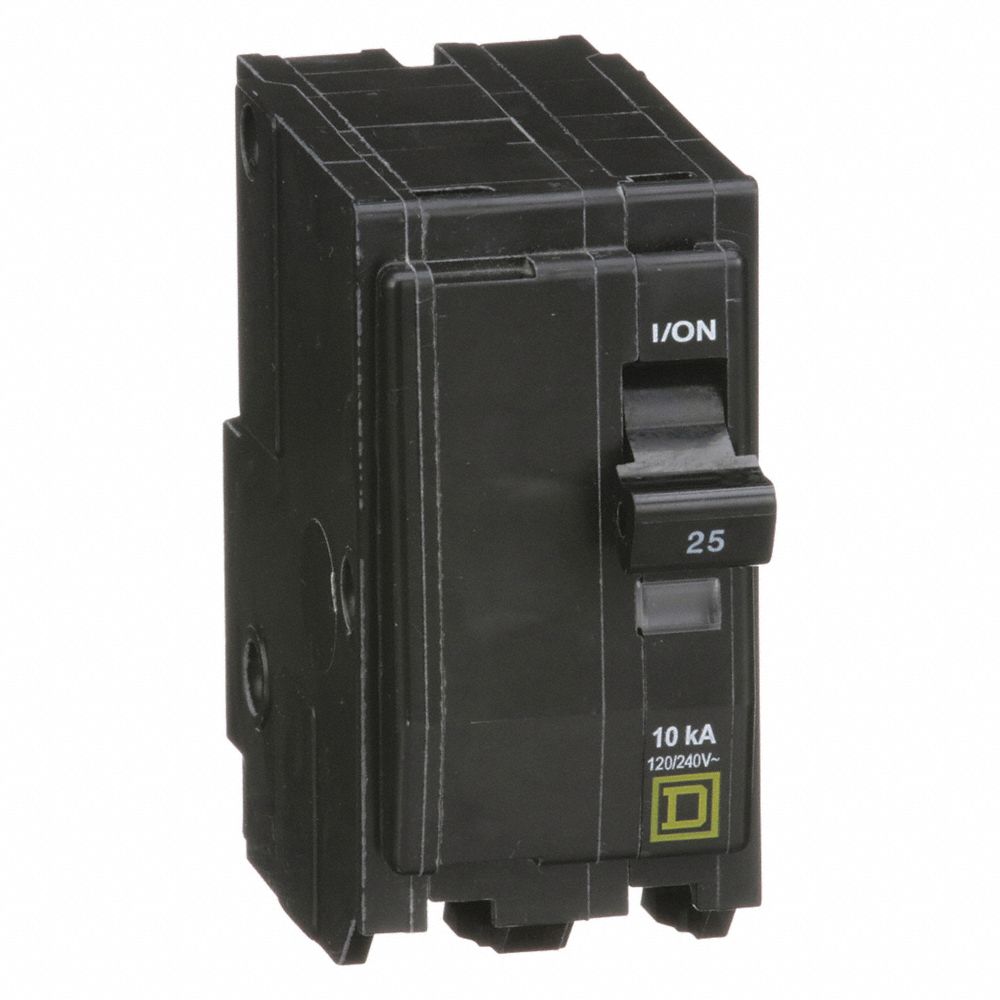

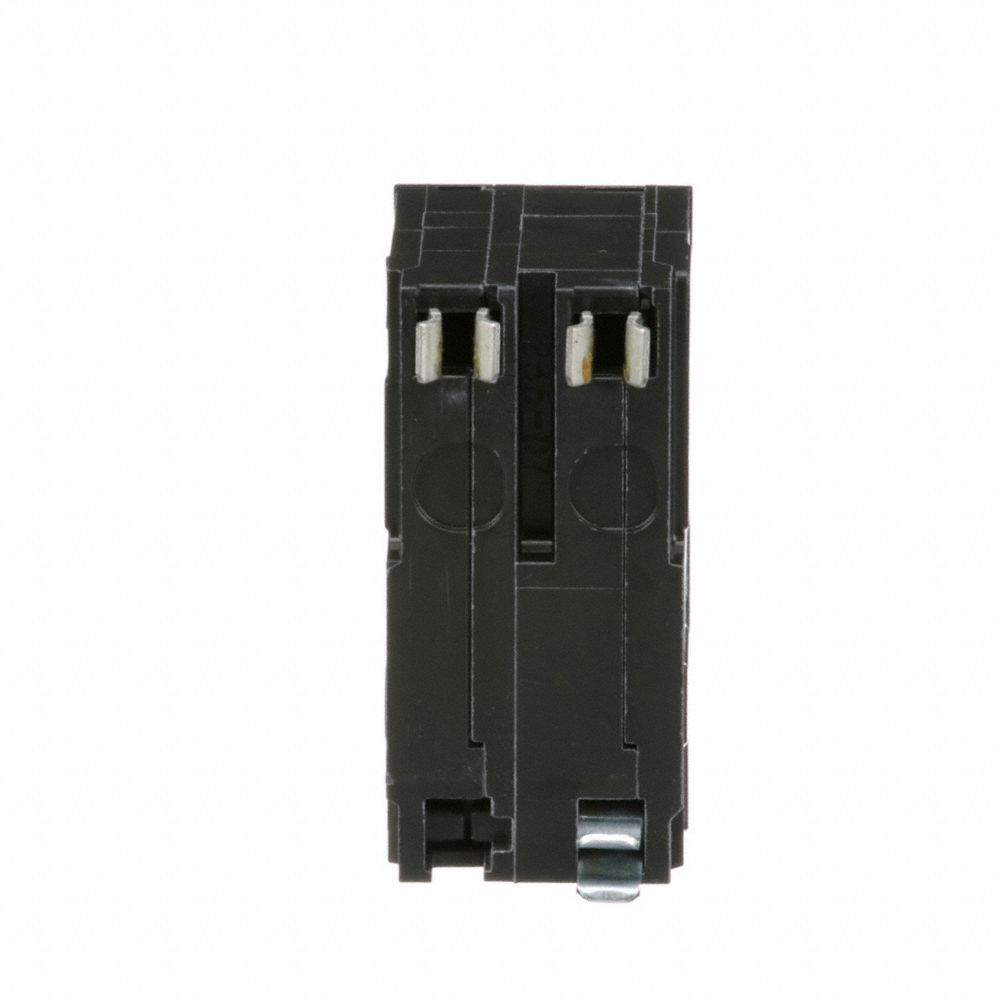

Description
Miniature Circuit Breaker, Amps 25, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase 1, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure plate, Frame Size 100A/QO, Length 3.0 in, Width 1.5 in, Depth 2.91 in
Specifications:
Item: Miniature Circuit Breaker
Amps: 25 A
AC Voltage Rating: 120/240V AC
DC Voltage Rating: 48V DC
Max. AIR Rating: 10kA at 120/240V AC
Terminal Connection: Pressure plate
Series: QO
Number of Poles: 2
Circuit Breaker Actuator: Paddle
Frame Size: 100A/QO
Circuit Breaker Mounting Style: Plug In
Circuit Breaker Type: Standard
Standards: CSA Certified, HACR, UL Listed
Max. Wire Size: 8 AWG
Width: 1.5 in
Min. Wire Size: 14 AWG
For Use With: QO Load Centers and NQ Panelboards
Length: 3.0 in
Depth: 2.91 in
Phase: Single
Max. Operating Temp.: 104 Degrees F
Compatible Panelboard/Load Center Series: QO
Min. Operating Temp.: 104 Degrees F
Length (Straight Wireway): 3.0 in
Specifications:
Item: Miniature Circuit Breaker
Amps: 25 A
AC Voltage Rating: 120/240V AC
DC Voltage Rating: 48V DC
Max. AIR Rating: 10kA at 120/240V AC
Terminal Connection: Pressure plate
Series: QO
Number of Poles: 2
Circuit Breaker Actuator: Paddle
Frame Size: 100A/QO
Circuit Breaker Mounting Style: Plug In
Circuit Breaker Type: Standard
Standards: CSA Certified, HACR, UL Listed
Max. Wire Size: 8 AWG
Width: 1.5 in
Min. Wire Size: 14 AWG
For Use With: QO Load Centers and NQ Panelboards
Length: 3.0 in
Depth: 2.91 in
Phase: Single
Max. Operating Temp.: 104 Degrees F
Compatible Panelboard/Load Center Series: QO
Min. Operating Temp.: 104 Degrees F
Length (Straight Wireway): 3.0 in
