SQUARE D

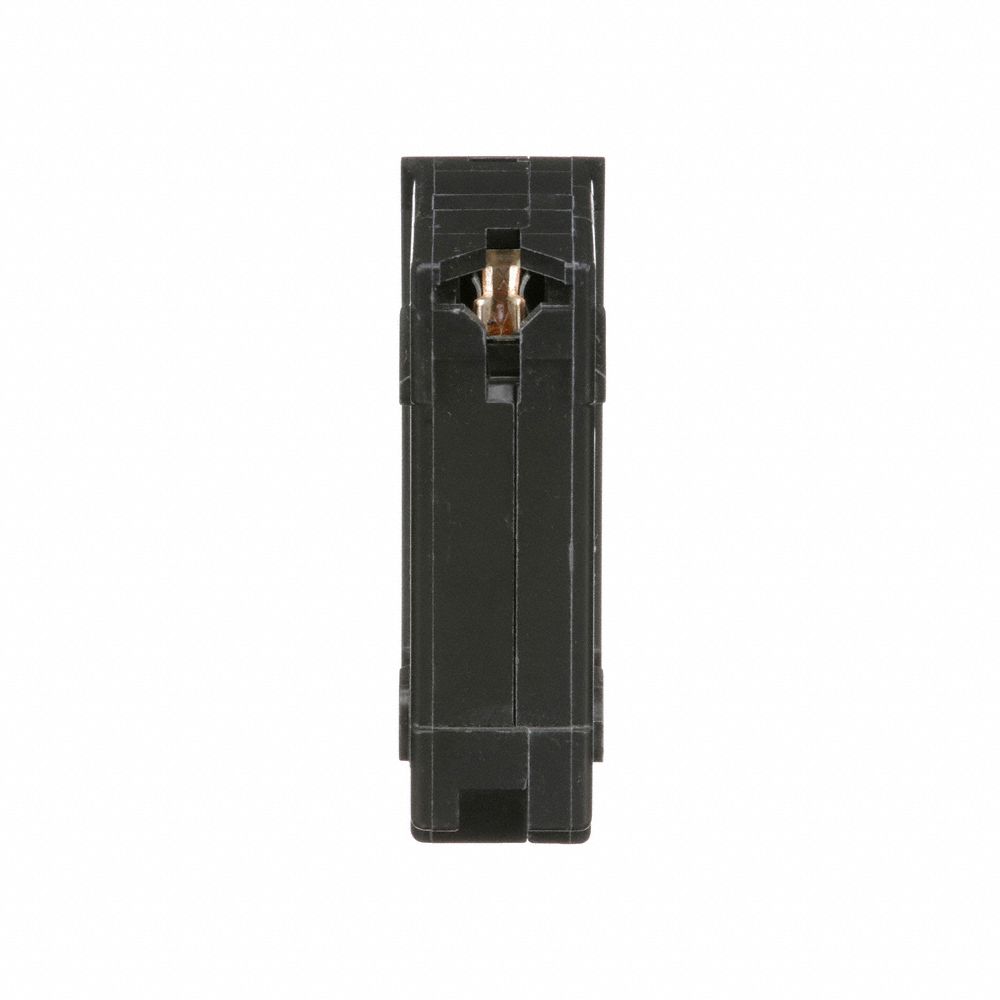

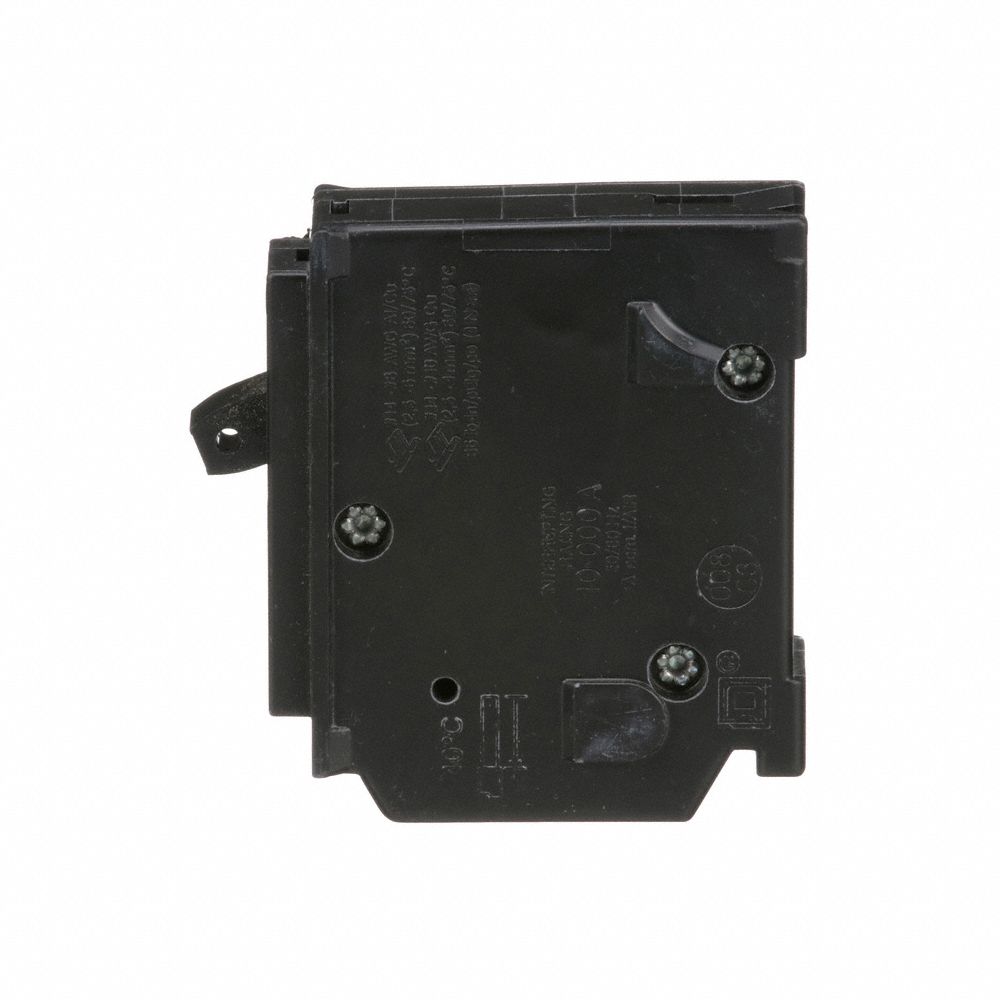

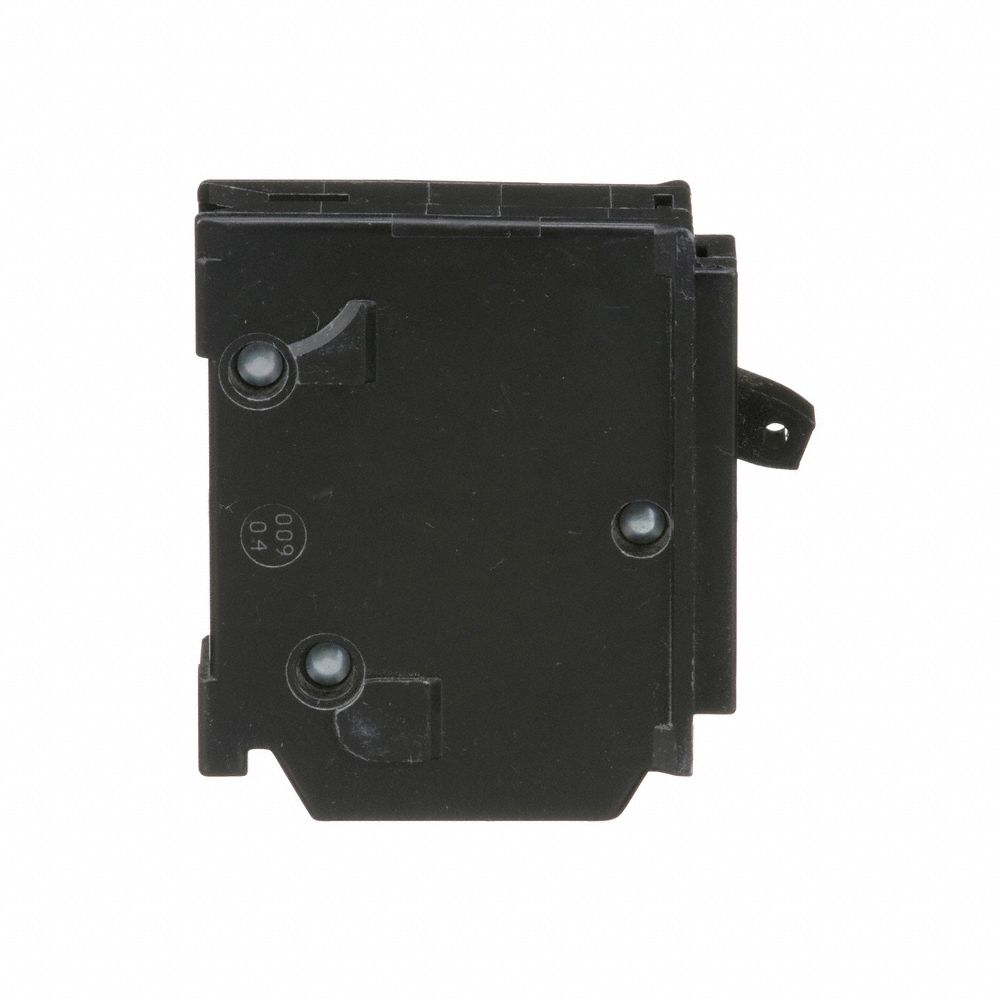

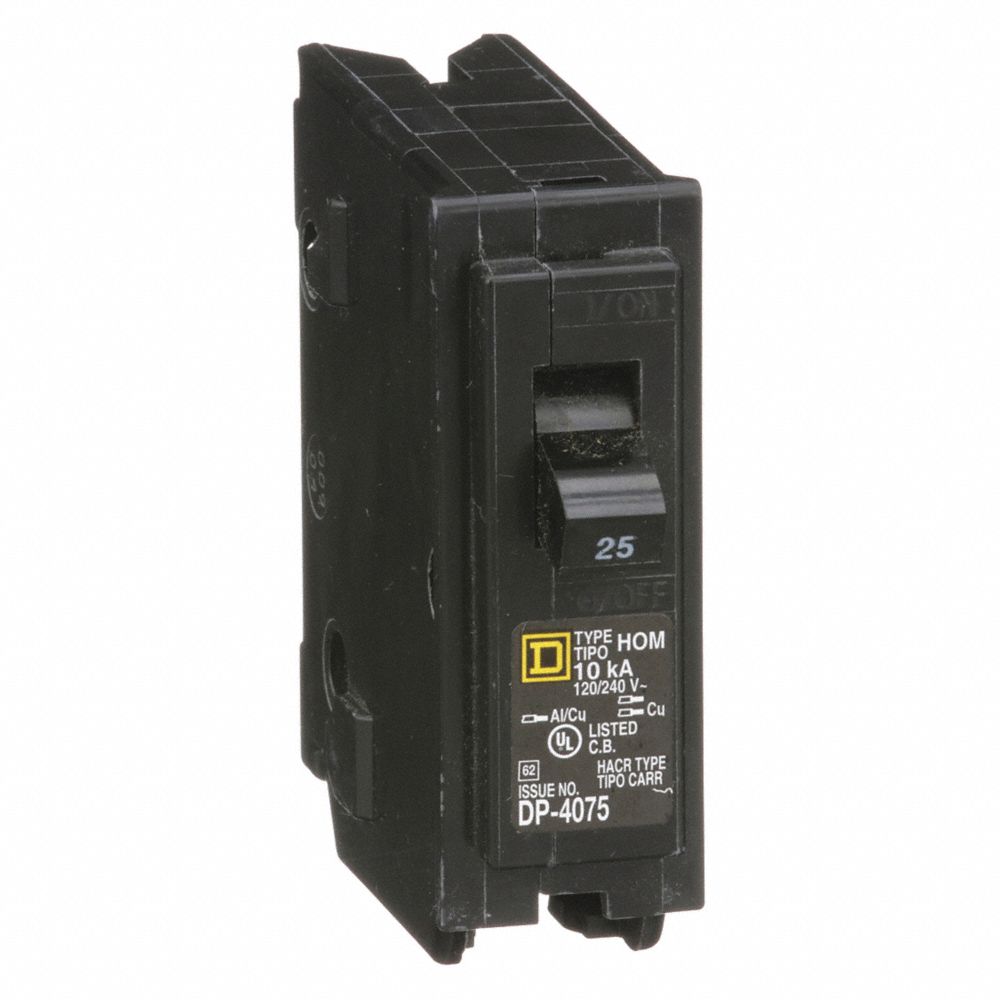

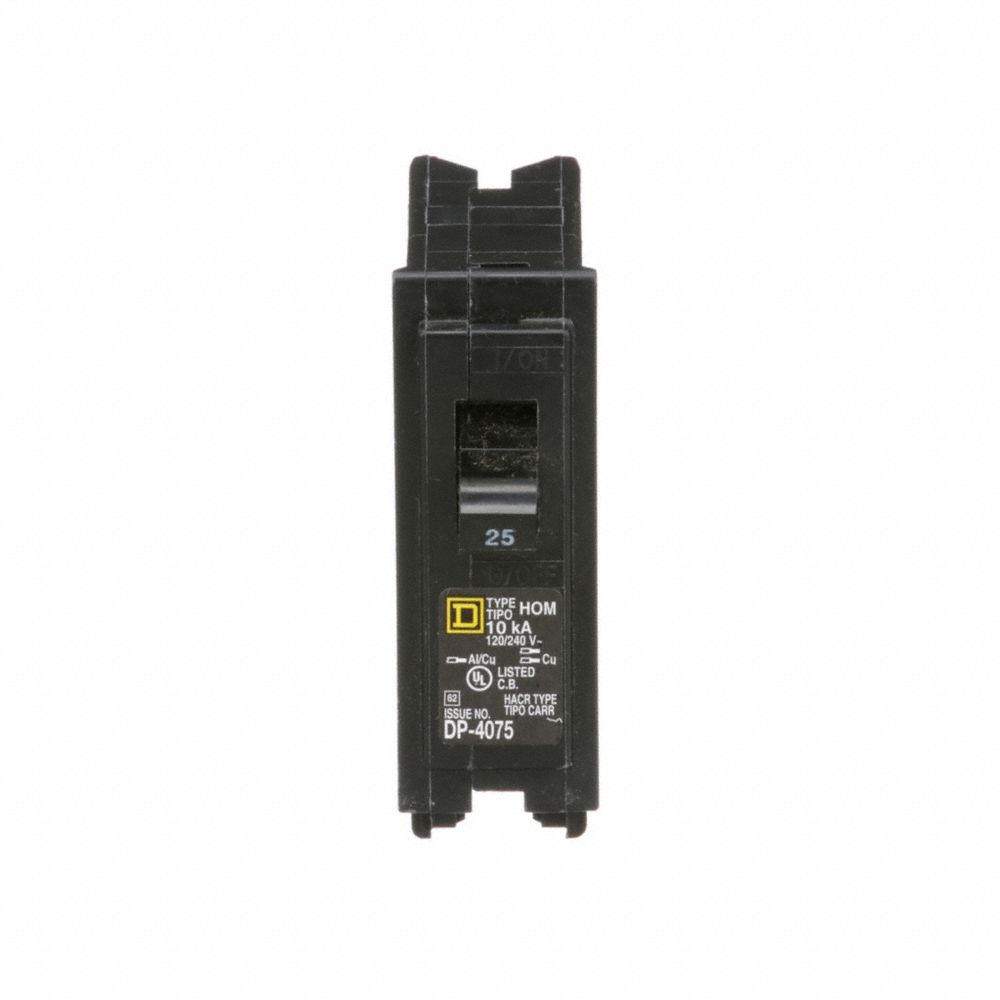

Miniature Circuit Breaker, 25 A, 120V AC, 1 Pole, Plug In Mounting Style, HOM Series

Miniature Circuit Breaker, 25 A, 120V AC, 1 Pole, Plug In Mounting Style, HOM Series

$21.05
$21.05 $21.05
Sale Sold out
Shipping calculated at checkout.
(0)
 More payment options

Miniature Circuit Breaker, Amps 25, AC Voltage Rating 120V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase 1, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1.0 in, Depth 2.98 in, Min. Operating Temp. 104 Degrees F

Specifications

  • Mfr #: HOM125
  • Item: Miniature Circuit Breaker
  • Amps: 25 A
  • AC Voltage Rating: 120V AC
  • DC Voltage Rating: Not Rated
  • Max. AIR Rating: 10kA at 120V AC
  • Terminal Connection: Screw Clamp
  • Series: HOM
  • Number of Poles: 1
  • Circuit Breaker Actuator: Paddle
  • Frame Size: 100A/HOM
  • Circuit Breaker Mounting Style: Plug In
  • Circuit Breaker Type: Standard
  • Standards: CSA Certified, HACR, Switching Duty rated, UL Listed
  • Width: 1 in
  • For Use With: Homeline Load Center
  • Length: 3.13 in
  • Min. Wire Size: 14 AWG
  • Depth: 2.98 in
  • Max. Wire Size: 8 AWG
  • Phase: Single
  • Min. Operating Temp.: 104 Degrees F
  • Max. Operating Temp.: 104 Degrees F
  • Compatible Panelboard/Load Center Series: HOM
  • Length (Straight Wireway): 3.13 in
View full details
