Square D

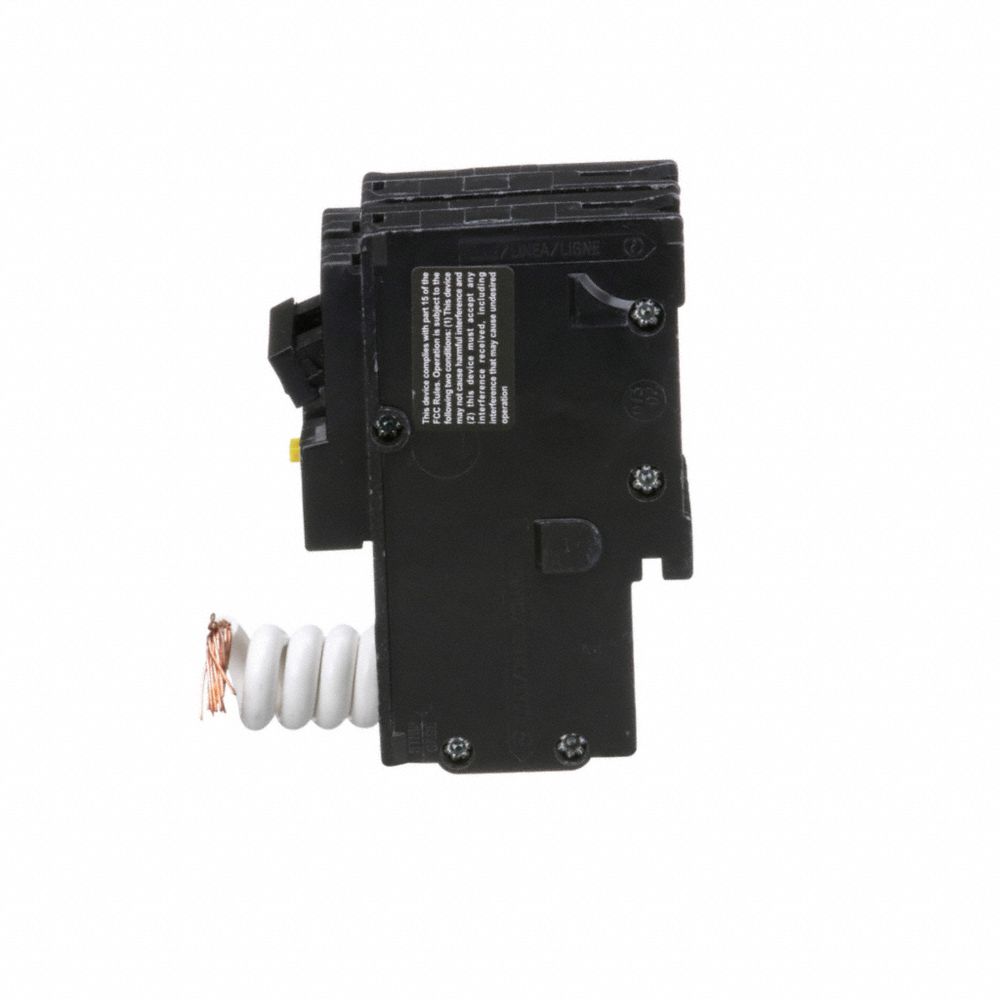

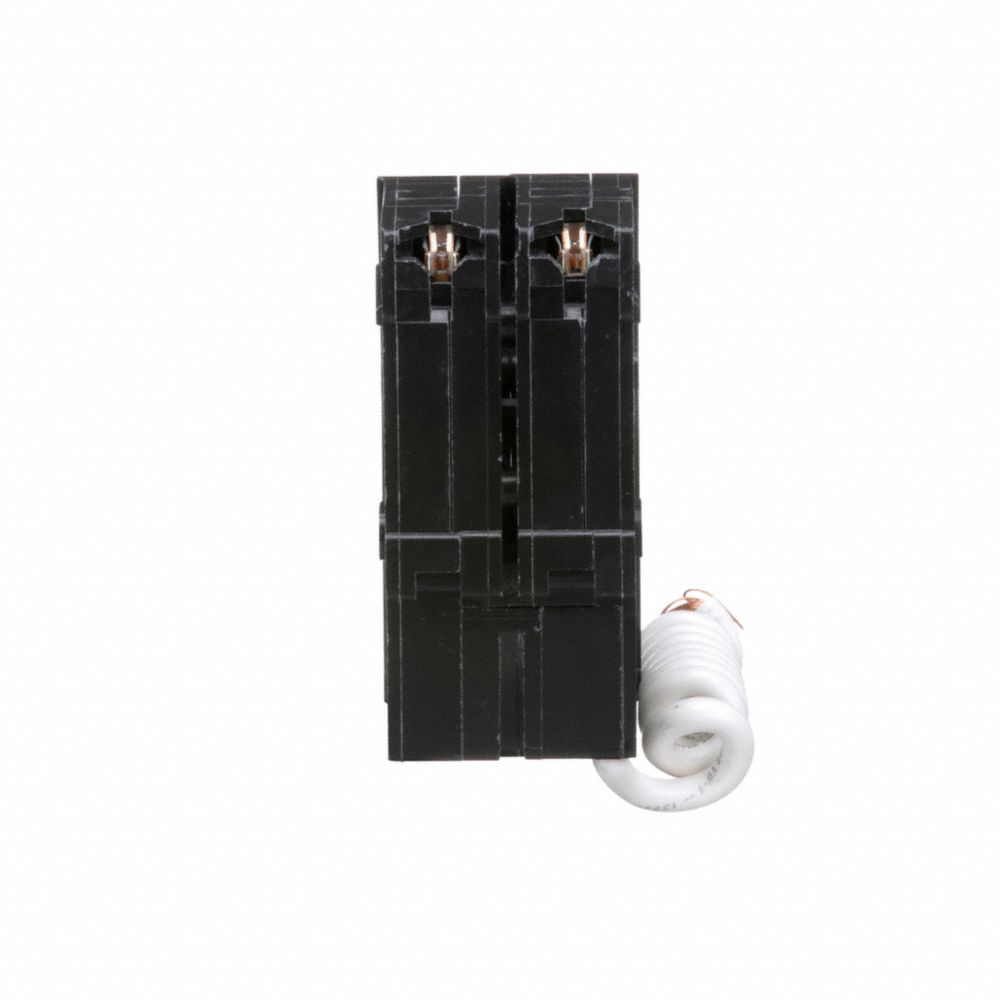

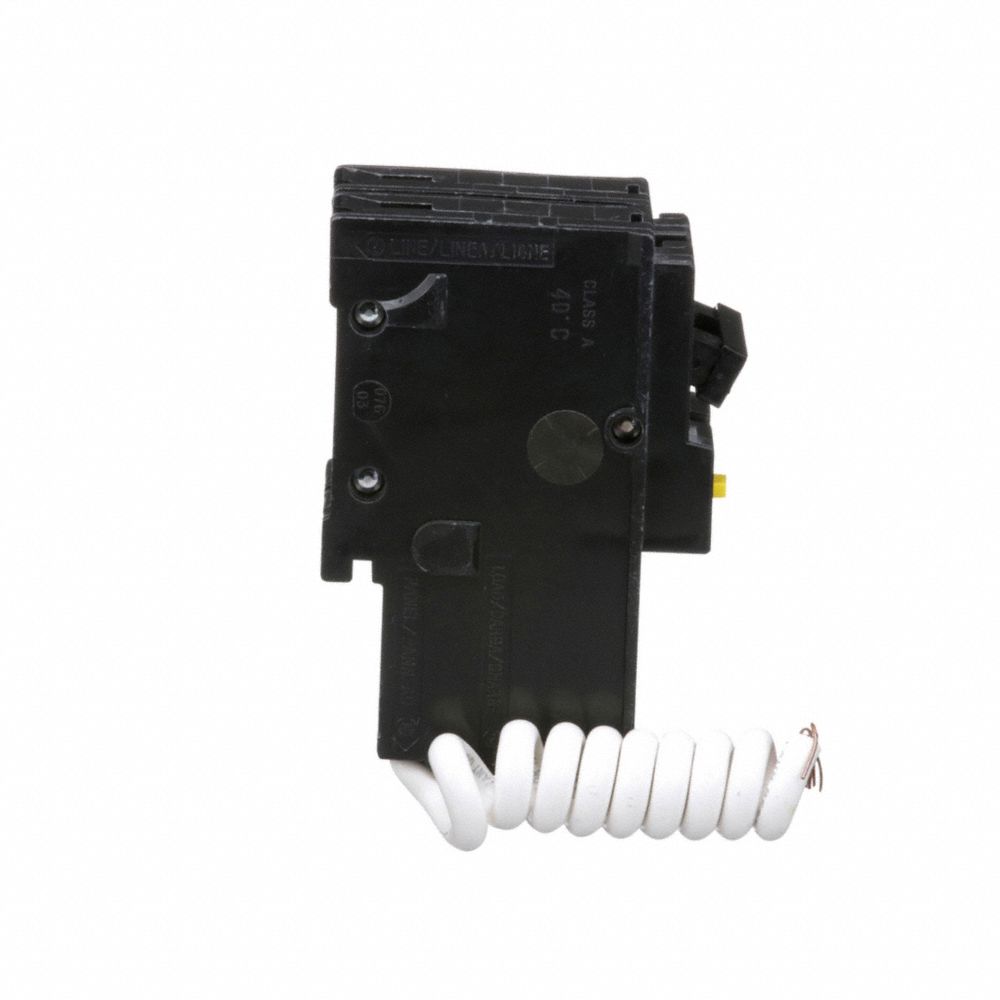

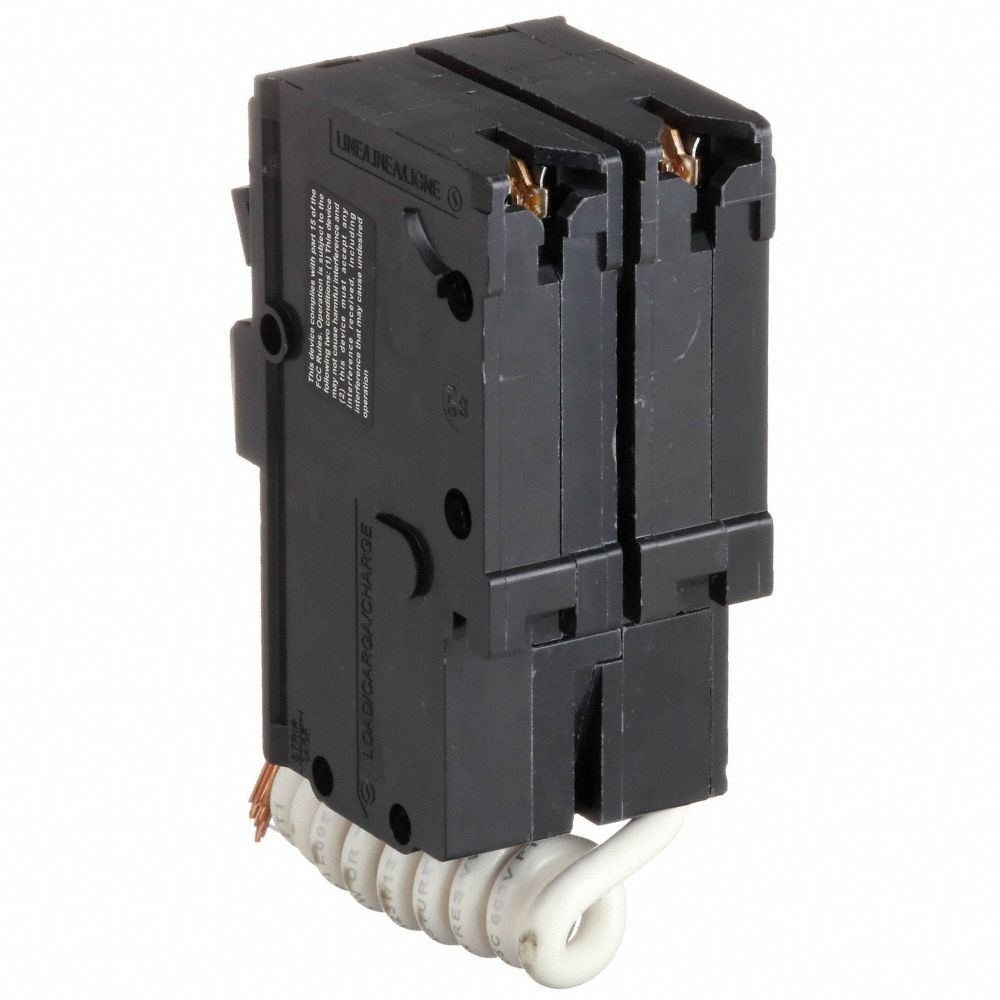

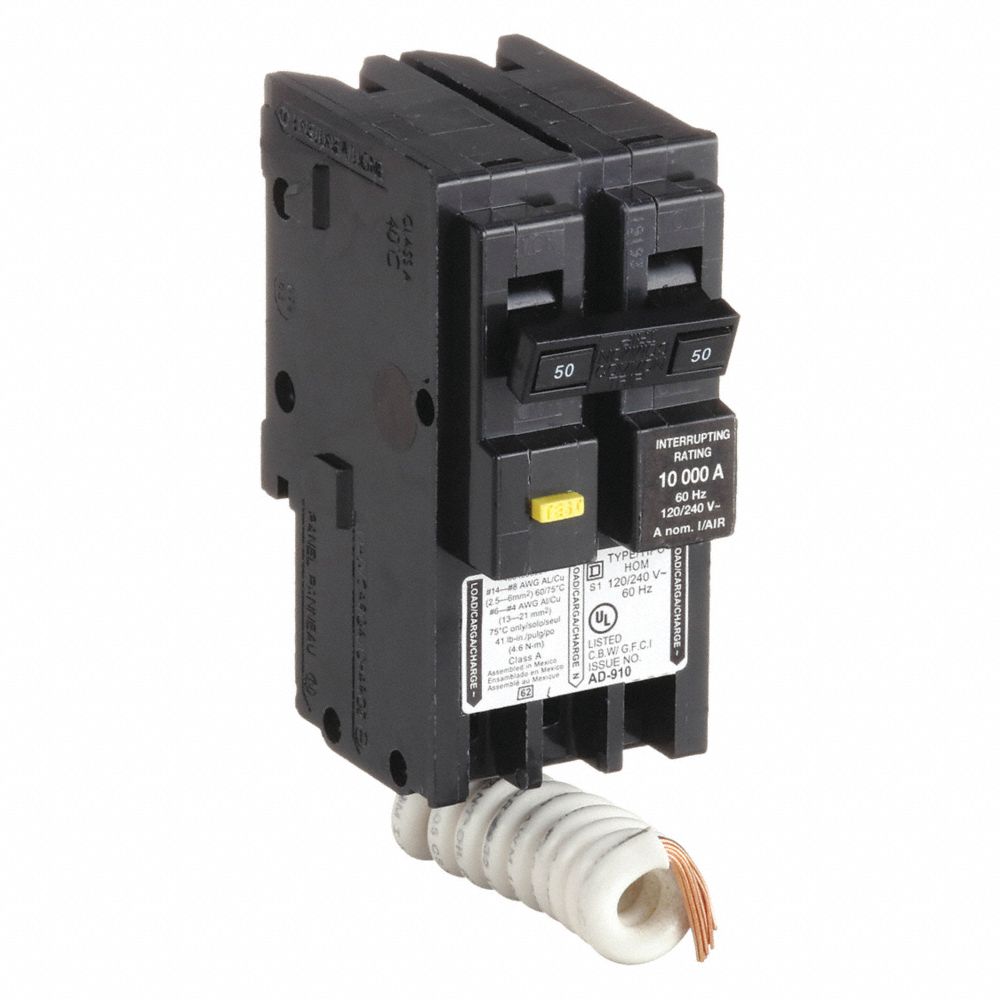

Miniature Circuit Breaker, 50 A, 120/240V AC, 2 Pole, Plug In Mounting Style, HOM Series

Miniature Circuit Breaker, 50 A, 120/240V AC, 2 Pole, Plug In Mounting Style, HOM Series

$217.09
$217.09 $217.09
Sale Sold out
Shipping calculated at checkout.
(0)
 More payment options
Miniature Circuit Breaker, Amps 50, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA), Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase 1, Series HOM, Max. AIR Rating 10kA at 120/240V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 2.0 in, Depth 2.98 in

Specifications

  • Mfr #: HOM250GFI
  • Item: Miniature Circuit Breaker
  • Amps: 50 A
  • AC Voltage Rating: 120/240V AC
  • DC Voltage Rating: Not Rated
  • Max. AIR Rating: 10kA at 120/240V AC
  • Terminal Connection: Screw Clamp
  • Series: HOM
  • Number of Poles: 2
  • Circuit Breaker Actuator: Paddle
  • Frame Size: 100A/HOM
  • Circuit Breaker Mounting Style: Plug In
  • Circuit Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
  • Standards: CSA Certified, HACR, UL Listed
  • Width: 2 in
  • Depth: 2.98 in
  • Max. Wire Size: 4 AWG (Al), 6 AWG (Cu)
  • Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
  • Length: 3.13 in
  • For Use With: Homeline Load Center
  • Phase: Single
  • Compatible Panelboard/Load Center Series: HOM
  • Min. Operating Temp.: 104 Degrees F
  • Max. Operating Temp.: 104 Degrees F
  • Length (Straight Wireway): 3.13 in
  • Product Type: Miniature Circuit Breaker
