Description

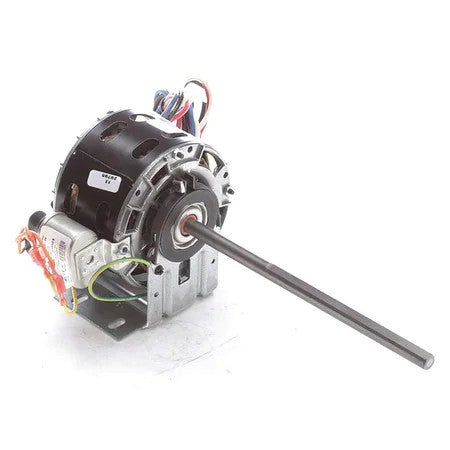

Direct Drive Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 to 1/120 HP, Nameplate RPM 1,100, No. of Speeds 3, Voltage 115V AC, Full Load Amps 0.60, 42 Frame, OEM Replacement Brand Trane, Replacement For K48HXBHZ955, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over
Specifications:
Frame: 42
HP: 1/20, 1/75, 1/120 HP
Item: Motor
Motor Application: OEM Replacement
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Resilient Base
Motor Shaft Rotation: Reversible
Motor Sub Application: Direct Drive Fan/Blower
Motor Thermal Protection: Automatic
Nameplate RPM: 1100 rpm
No. of Speeds: 3
Number of Shafts: 1
OEM Replacement Brand: Trane
Phase: 1
RPM Range: 1001-1100
Shaft Dia.: 1/2"
Shaft Length: 9-7/8"
Voltage: 115V
Motor Bearings: Sleeve
Replacement For: K48HXBHZ955
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Length Less Shaft: 3 11/16 in
Duty: Continuous Air Over
Full Load Amps: 0.6A
Body Dia.: 5"
Capacitor Required: Included
Manufacturers Warranty Length: 1 yr.
Overall Length: 13-9/16"
Standards: UL Recognized, CSA Certified
Motor Shaft Design: Flat
Hz: 60 Hz
Motor Service Factor: 1.00
Application: Fans and Blowers
Voltage Compatibility: 115V AC, 120V AC
Weight: 8 lb
Mounting Stud Length: Not Applicable
Usable @ 200V: No
Usable @ 208V: No
Extended Thru-Bolts: No
Motor Frame Material: Steel
Duty Cycle: Continuous
Specifications:
Frame: 42
HP: 1/20, 1/75, 1/120 HP
Item: Motor
Motor Application: OEM Replacement
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Resilient Base
Motor Shaft Rotation: Reversible
Motor Sub Application: Direct Drive Fan/Blower
Motor Thermal Protection: Automatic
Nameplate RPM: 1100 rpm
No. of Speeds: 3
Number of Shafts: 1
OEM Replacement Brand: Trane
Phase: 1
RPM Range: 1001-1100
Shaft Dia.: 1/2"
Shaft Length: 9-7/8"
Voltage: 115V
Motor Bearings: Sleeve
Replacement For: K48HXBHZ955
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Length Less Shaft: 3 11/16 in
Duty: Continuous Air Over
Full Load Amps: 0.6A
Body Dia.: 5"
Capacitor Required: Included
Manufacturers Warranty Length: 1 yr.
Overall Length: 13-9/16"
Standards: UL Recognized, CSA Certified
Motor Shaft Design: Flat
Hz: 60 Hz
Motor Service Factor: 1.00
Application: Fans and Blowers
Voltage Compatibility: 115V AC, 120V AC
Weight: 8 lb
Mounting Stud Length: Not Applicable
Usable @ 200V: No
Usable @ 208V: No
Extended Thru-Bolts: No
Motor Frame Material: Steel
Duty Cycle: Continuous
