SQUARE D

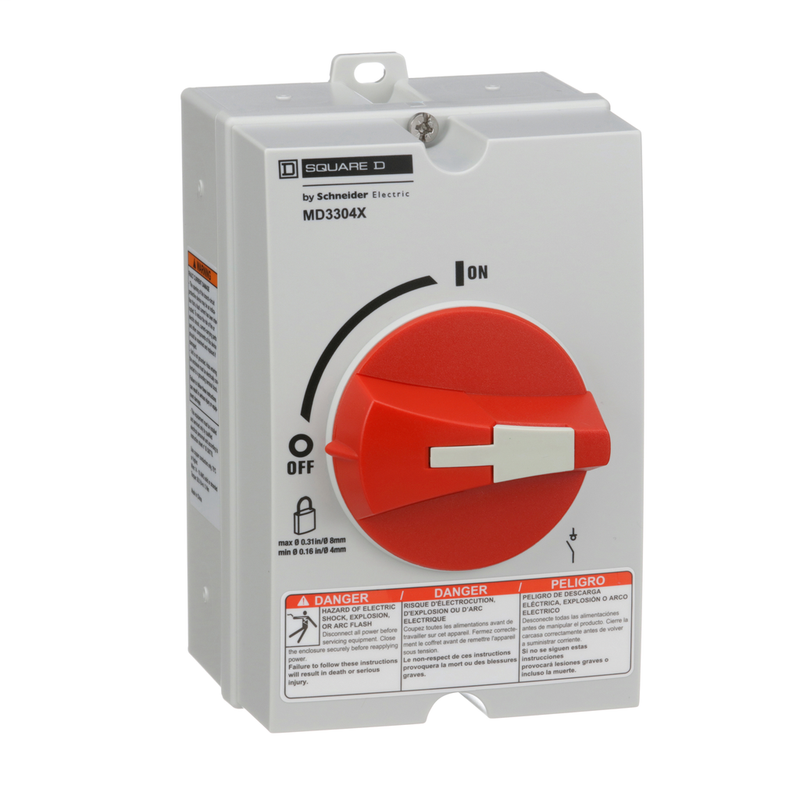

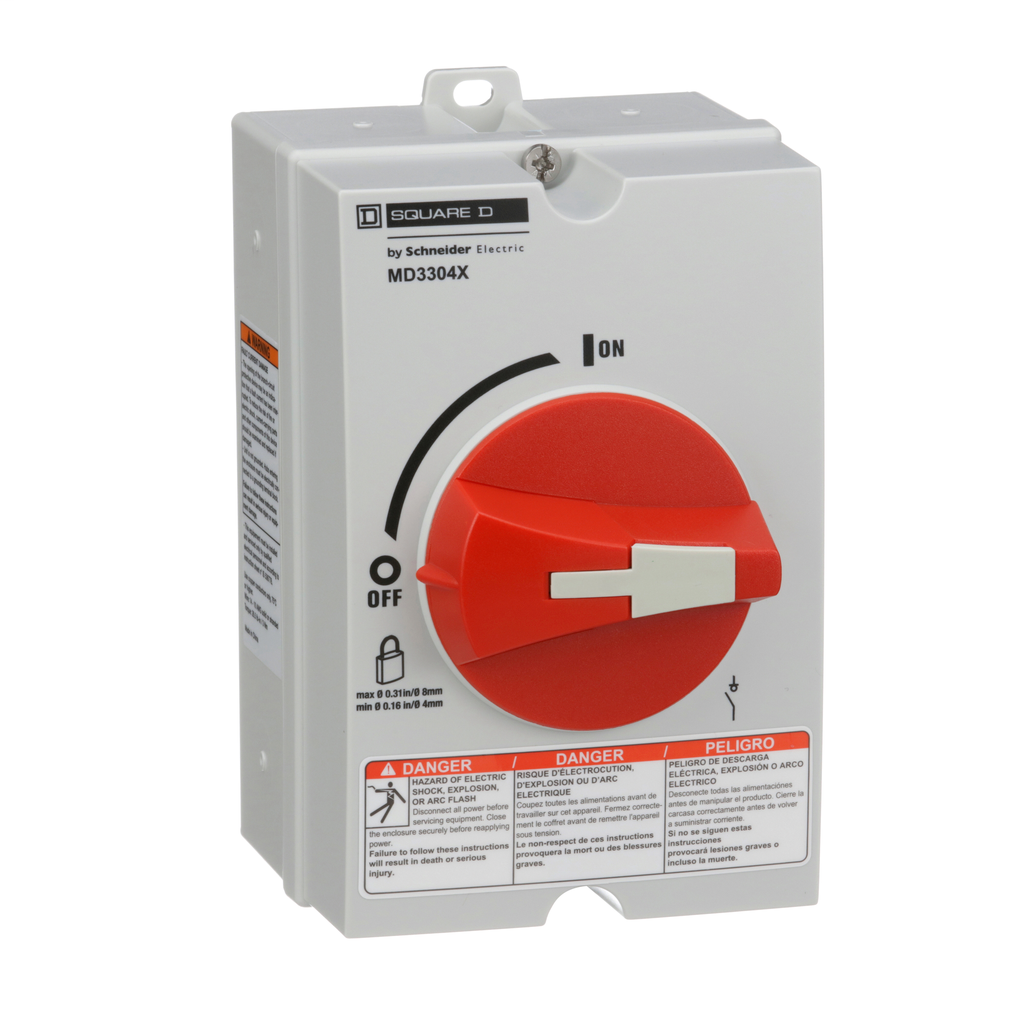

Nonfusible Enclosed Single Throw Disconnect Switch, 30 A, 3 pole

Nonfusible Enclosed Single Throw Disconnect Switch, 30 A, 3 pole

Regular price $140.39
Regular price $140.39 Sale price $140.39
Sale Sold out
Shipping calculated at checkout.
Enclosed Disconnect Switch, Nonfusible, General Duty, 30 A Amps, Voltage 220 to 240V AC, 440 to 480V AC, 600V AC, 3 Phase, 20 hp @ 440 to 480V AC, 25 hp @ 600V AC, 7.5 hp @ 220 to 240V AC HP, 1, 12, 3R, 4, 4X NEMA Enclosure Type, 66 IP Rating, Material Non-Metallic, Number of Wires 4, Number of Poles 3, Contact Form 3PST, Height 6 in, Width 3.9 in, Depth 4.4 in, Standards UL Listed

Specifications

  • Mfr #: MD3304X
  • Item: Enclosed Single Throw Disconnect Switch
  • Protection Method: Nonfusible
  • Duty: General
  • Amps: 30 A
  • Voltage: 220 to 240V AC, 440 to 480V AC, 600V AC
  • Phase: 3
  • HP: 20 hp @ 440 to 480V AC, 25 hp @ 600V AC, 7.5 hp @ 220 to 240V AC
  • NEMA Enclosure Type: 1, 12, 3R, 4, 4X
  • IP Rating: 66
  • Number of Wires: 4
  • Material: Non-Metallic
  • Number of Poles: 3
  • Contact Form: 3PST
  • Neutral Assembly Included: Yes
  • Fuse Kit (Class R): Non-Fusible
  • Height: 6 in
  • Fusible / Nonfusible: Nonfusible
  • Depth: 4.4 in
  • Width: 3.9 in
  • Includes: Red Handle
  • Standards: UL listed
  • Product Type: Enclosed Disconnect Switch
