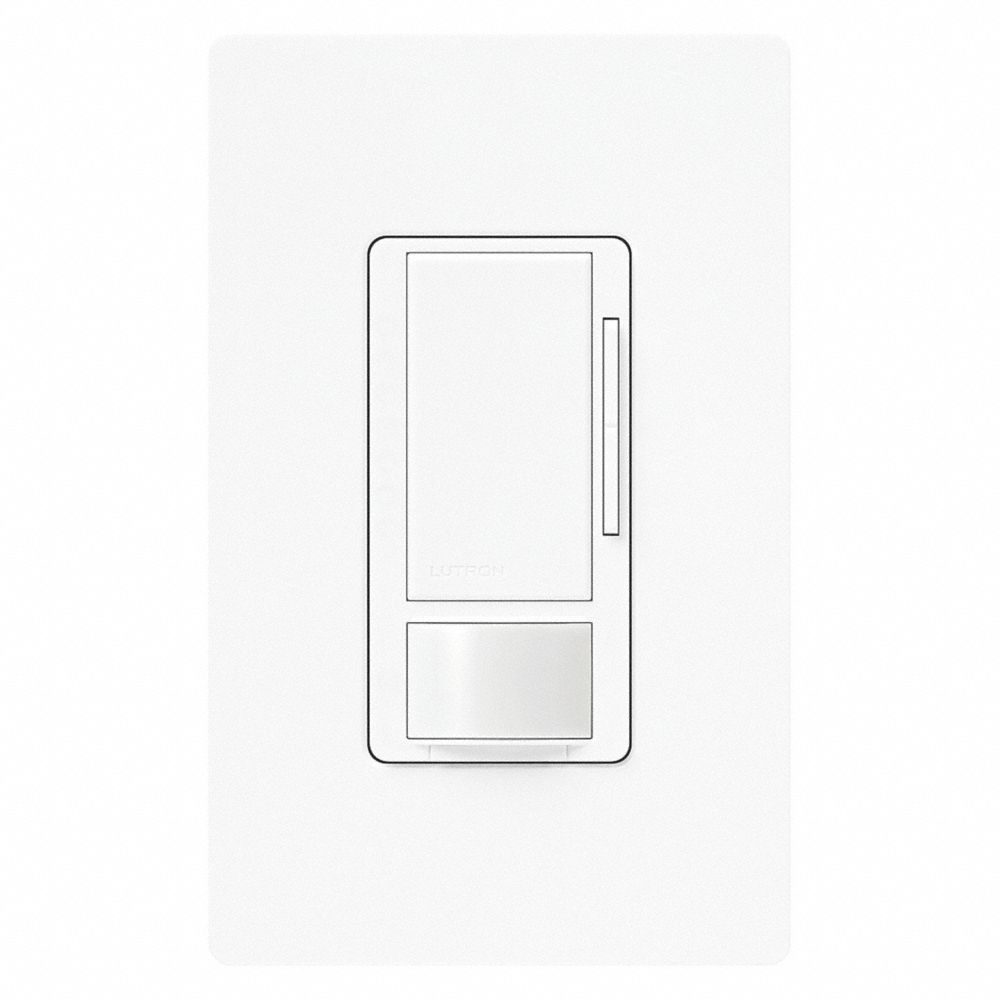

Occ/Vac Dimmer Snsr, Wall, White

Dimming Occupancy/Vacancy Sensor, Item - Motion Sensing and Dimming Dimming Vacancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 900 sq ft, Operating Voltage - Motion Sensing and Dimming 120 to 277V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 1 min, 15 min, 30 min, 5 min

• Mfr #: MS-Z101-WH
• Item - Motion Sensing and Dimming: Dimming Vacancy Sensor
• Use With - Motion Sensing and Dimming: 0 to 10V DC Dimming Ballasts
• Lighting Technology: Fluorescent, LED
• Communication Method - Motion Sensing and Dimming: Hard Wired
• Number of Gangs: 1
• Operating Voltage - Motion Sensing and Dimming: 120 to 277V AC
• Max. Capacity @ 120VAC: 4.4A (Fan Motor), 8A (Fluorescent, LED)
• Max. Capacity @ 277VAC: 8A (Fluorescent, LED)
• Color - Motion Sensing and Dimming: White
• Time Delay Adjustment Method - Motion Sensor: Adjustable
• Time Delay - Motion Sensor: 1 min, 15 min, 30 min, 5 min
• Coverage: 900 sq. ft.
• Sensing Technology: Passive Infrared
• Installation Location - Motion Sensor: Wall Switch Box
• Voltage: 120 to 277VAC
• Timer Range: 1, 5, 15, 30 min.
• For Use With: 8A Electronic Fluorescent Ballast or LED Drivers
• Standards: Title 20/24 Certified, UL Listed
• Suggested Mounting Height - Motion Sensor: 4 ft
• Color: White
• Time Delay: Adjustable
• Item: Occupancy/Vacancy Sensor
• Viewing Angle: 180 Degrees
• Sensor Type: Passive Infrared
• Description/Special Features: XCT Technology for Major, Minor, Fine and Very Fine Motion Detection, Smart Ambient Light Detection (ALD), Single Pole and 3-Way Switch Capability, Decora Style, 0-10V Dimmer
• Installation Type: Wall
• Coverage at Suggested Mounting Height: 900 sq ft
• Coverage Angle - Motion Sensor: 180 Degrees
