CENTURY

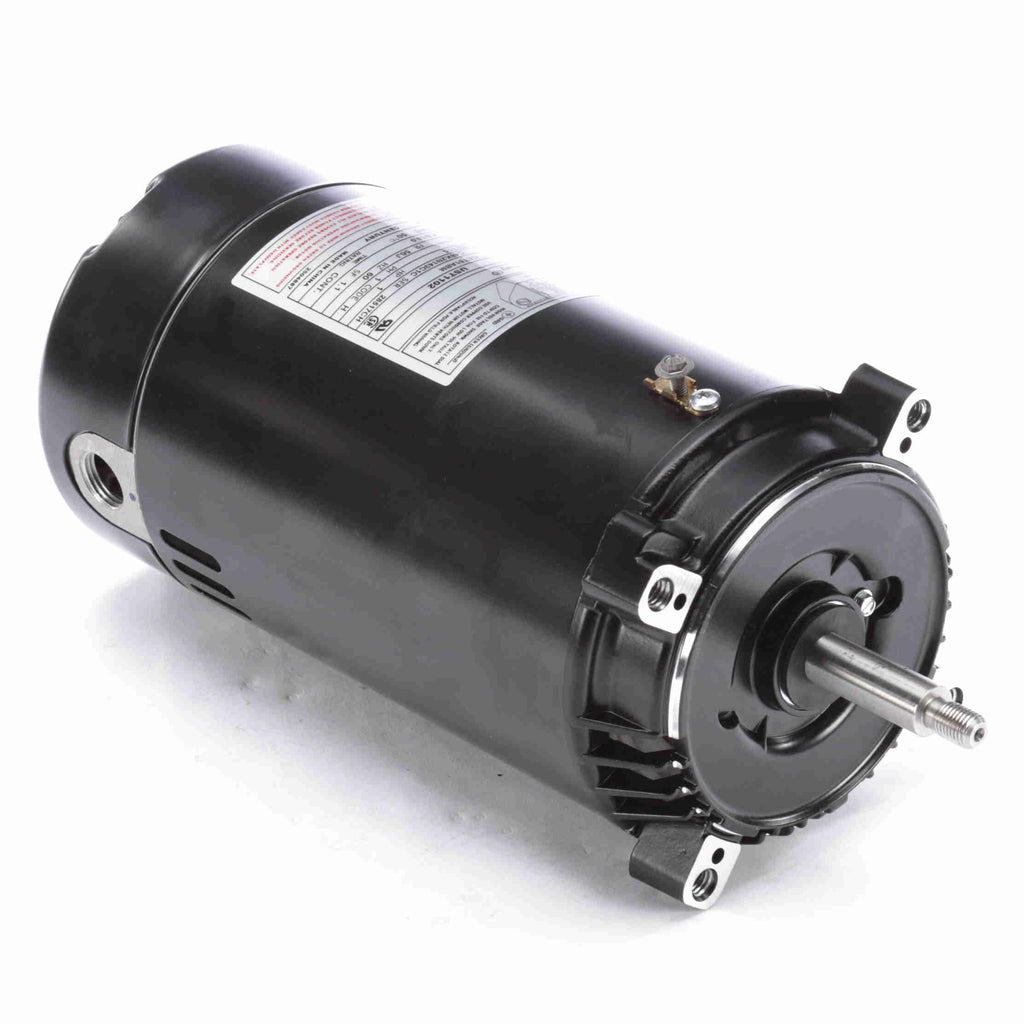

Pool Pump Motor, Capacitor-Start, 1 HP, 56J Frame, 3,450 Nameplate RPM

Pool Pump Motor, Capacitor-Start, 1 HP, 56J Frame, 3,450 Nameplate RPM

Regular price $289.89
Regular price $289.89 Sale price $289.89
Sale Sold out
Shipping calculated at checkout.
Pool Pump Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 15.0/7.5, 56J Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position Horizontal


Specifications

  • Mfr #: UST1102
  • Item: Pool Pump Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1
  • Motor Service Factor: 1.1
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56J
  • Motor Shaft Rotation: CCWSE
  • Voltage: 115/230V AC
  • Phase: Single
  • Motor Mounting Type: Face
  • Full Load Amps: 15.0/7.5
  • Standards: CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
  • Shaft: Threaded 7/16"-20 UNF-2A RH 11/16 in From End
  • Ambient Temperature: 50 Degrees C
  • Motor Thermal Protection: Auto
  • Motor Efficiency Group: Standard Efficient
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Motor Application: Pump
  • Shaft Dia.: 5/8 in
  • Motor Bearings: Ball
  • Shaft Material: Stainless Steel
  • Motor Flange Material: Aluminum
  • Ins. Class: B
  • Motor Sub Application: Pool and Spa Pump
  • Hz: 60
  • Shaft Length: 2 9/16 in
  • Finish: Black
  • Max. Ambient Temp.: 50 Degrees C
  • Usable @ 200V: No
  • Duty Cycle: Continuous
  • Bolt Circle Dia.: 5 7/8 in
  • Overall Length: 13 1/2 in
  • Motor Mounting Position: Horizontal
  • Motor Shaft Design: Threaded
  • Usable @ 208V: No
  • Weight: 22 lb
  • No. of Speeds: 1
  • Length Less Shaft: 11 in
  • Height: 9 1/2 in
  • Motor Frame Material: Steel
