CENTURY

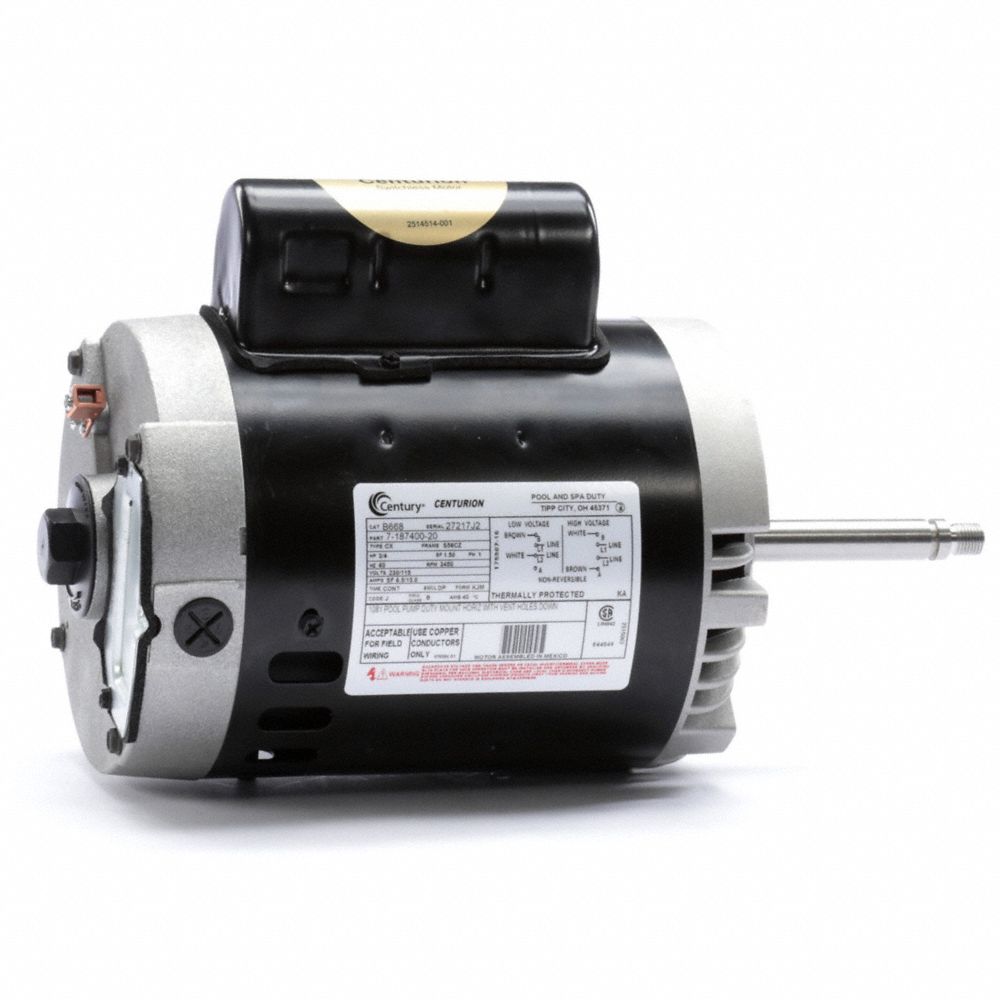

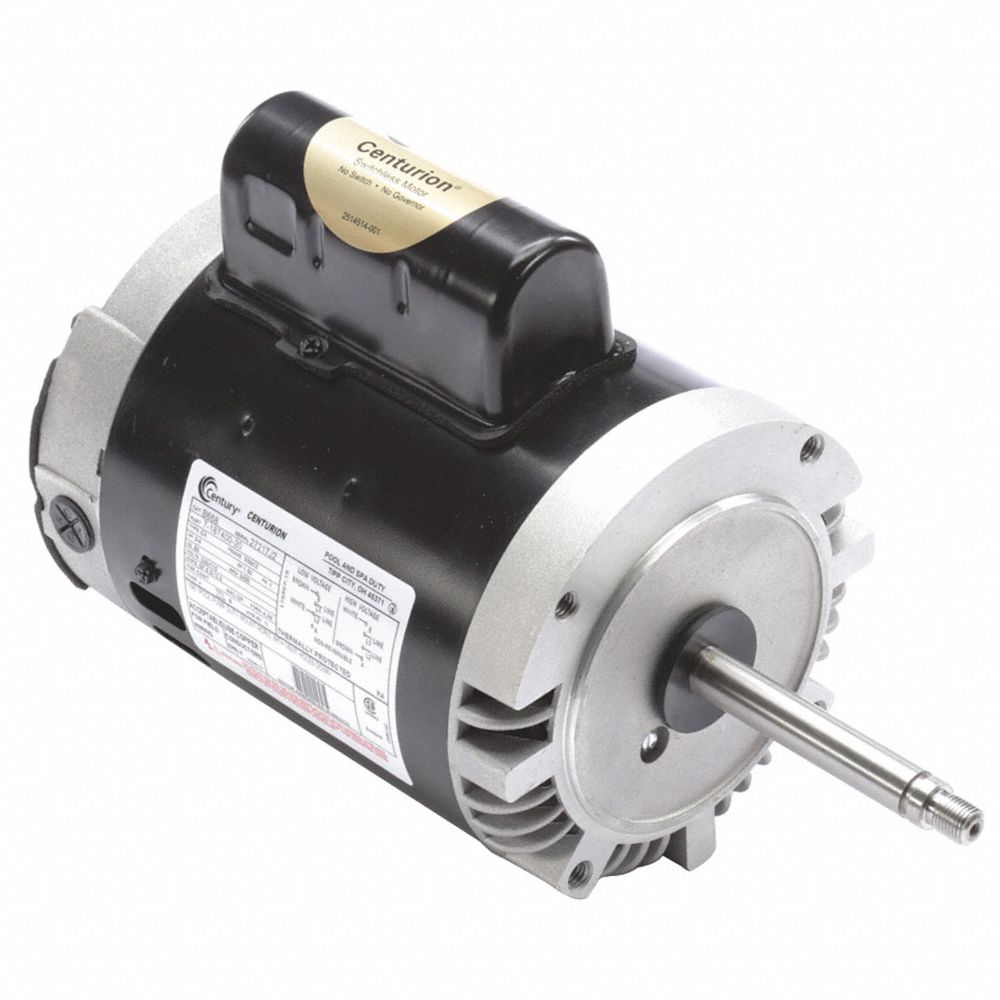

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56CZ Frame, 3,450 Nameplate RPM

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56CZ Frame, 3,450 Nameplate RPM

$374.39
$374.39 $374.39
Sale Sold out
Shipping calculated at checkout.
Pool Pump Motor, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Phase Single, Standards CSA (LR642), UL (E14663)

Specifications

  • Mfr #: B668
  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • RPM Range: 3,001-3,600
  • Motor Service Factor: 1.5
  • Nameplate RPM: 3,450
  • Frame: 56CZ
  • Motor Shaft Rotation: CCWSE
  • Voltage: 115/230V AC
  • Phase: Single
  • Motor Mounting Type: Face
  • Full Load Amps: 13.0/6.5
  • Motor Application: Pump
  • Shaft Length: 4 7/16 in
  • Ins. Class: B
  • Motor Efficiency Group: Standard Efficient
  • Shaft Dia.: 5/8 in
  • Finish: Black
  • Motor Bearings: Ball
  • Motor Flange Material: Aluminum
  • Ambient Temperature: 40 Degrees C
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Hz: 60
  • Motor Sub Application: Pool and Spa Pump
  • Motor Thermal Protection: Auto
  • Standards: CSA (LR642), UL (E14663)
  • Shaft: Threaded 1/2-20 UNF-2A RH
  • Shaft Material: 303 Stainless Steel
  • Max. Ambient Temp.: 40 Degrees C
  • Duty Cycle: Continuous
  • Length Less Shaft: 9 7/16 in
  • Max. SF Amps: 13.0
  • Usable @ 208V: No
  • Motor Shaft Design: Threaded
  • No. of Speeds: 1
  • Motor Frame Material: Steel
  • Height: 11 in
  • Bolt Circle Dia.: 5 13/16 in
  • Weight: 24 lb
  • Motor Mounting Position: Horizontal
  • Usable @ 200V: No
  • Overall Length: 13 7/8 in
  • Conduit Box Position: F3
  • Application: Pool/Spa Motor
