Description
Condensate, Reservoir Size - Pumps Small, Voltage - Pumps 115V AC, 1/30 hp HP - Pumps, 93 W Watts, Reservoir Capacity - Pumps 1/3 gal, 3/8 in Barb Discharge Size - Pumps, Max. Head - Pumps 21 ft, Max. Temp - Pumps 140 Degrees F, 1.5 A Amps, Height 6 51/64 in, Length 10 5/16 in, Width 5 7/64 in, Float Material Polypropylene, Cord Length 6 ft, Shaft Material Stainless Steel, Standards cCSAus
Specifications
- Mfr #: 554542
- Condensate Pumps - Type: Condensate

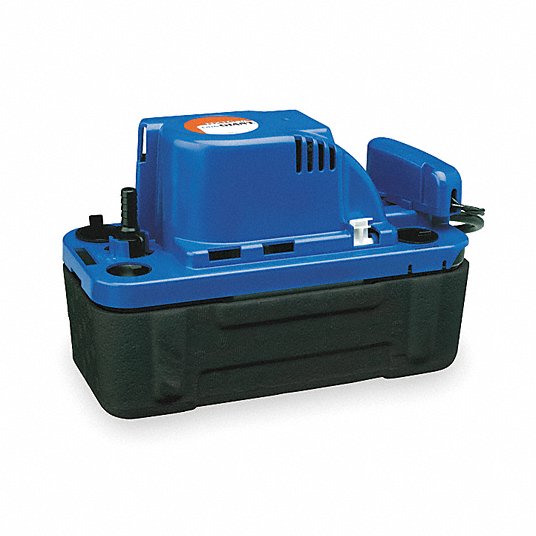

- Item: Condensate Removal Pump
- Voltage: 115
- Reservoir Size - Pumps: Small
- HP - Pumps: 1/30 hp
- Voltage - Pumps: 115V AC
- Reservoir Capacity - Pumps: 1/3 gal
- Discharge Size - Pumps: 3/8 in Barb
- Max. Temp - Pumps: 140 Degrees F
- Pump Type: Vertical
- Cord Length: 6 ft
- Height: 6 51/64 in
- GPH of Water @ 12 Ft. of Head: 54
- Max. Temp.: 140 Degrees F
- Reservoir Capacity: 1/3 gal.
- Watts: 93 W
- Shaft Material: Stainless Steel
- Float Material: Polypropylene
- GPH of Water @ 30 Ft. of Head: -
- Discharge: 3/8" Barb
- HP: 1/30
- Length: 10 5/16 in
- Width: 5 7/64 in
- Max. Head - Pumps: 21 ft
- GPH of Water @ 1 Ft. of Head: 84
- Shut-Off: 21 ft.
- Standards: cCSAus
- GPH of Water @ 9 Ft. of Head: 64
- GPH of Water @ 20 Ft. of Head: 10
- Amps: 1.5 A
- GPH of Water @ 15 Ft. of Head: 42
- GPH of Water @ 5 Ft. of Head: 75
- Includes: 6 ft Power Cord, Safety Switch Assembly, Tank Anti-Sweat Sleeve with Bracket, Thermal Overload Protector, Turn Check Valve
- GPH of Water @ 40 Ft. of Head: -
- Length (Straight Wireway): 10 5/16 in
- Max. Head Range: 20 ft to 29 ft
- Maximum Flow Rate @ 15 Feet of Head: 0.7 gpm
- Overall Width: 5.1 in
- For Use With Potable Systems: No
- Nameplate Voltage: 115V AC
- Frequency: 60 Hz
- Maximum Media Temperature: 140 Degrees F
- Shut Off Level: 1.2 in
- Intake Connection: 1 1/8 in Open
- Series: VCMX-20
- Discharge Connection Style: Barbed
- Discharge Connection: 3/8 in Barbed
- Manufacturer Warranty Length: 3 yr
- Horsepower: 1/30 hp
- Maximum Ambient Temperature: 140 Degrees F
- Maximum Flow Rate @ 1 Feet of Head: 1.4 gpm
- Maximum Flow Rate @ 50 Feet of Head: [DELETE]
- Overall Length: 10.3 in
- Maximum Operating Pressure: 9.1 psi
- Intake Connection Style: Open
- Pump Activation Type: Float Switch
- Plenum Rated: No
- Phase: Single
- Compatible Discharge Pipe Size: 3/8 in
- Tank Capacity: 1/2 gal
- Body Gasket Material: Stainless Steel
- Compatible Intake Pipe Size: 1 1/8 in
- Maximum Flow Rate @ 10 Feet of Head: 1 gpm
- Series Family: VCMX
- Electrical Connection Type: Cord with Plug
- Compatible Media Type: Water
- Turn On Level: 1.6 in
- Pump Housing Material: ABS Plastic
- Overall Height: 6.8 in
- Maximum Flow Rate @ 20 Feet of Head: 0.2 gpm
- Number of Intakes: 3
- Maximum Feet of Head: 21 ft
- Maximum Flow Rate @ 5 Feet of Head: 1.3 gpm
