DAYTON

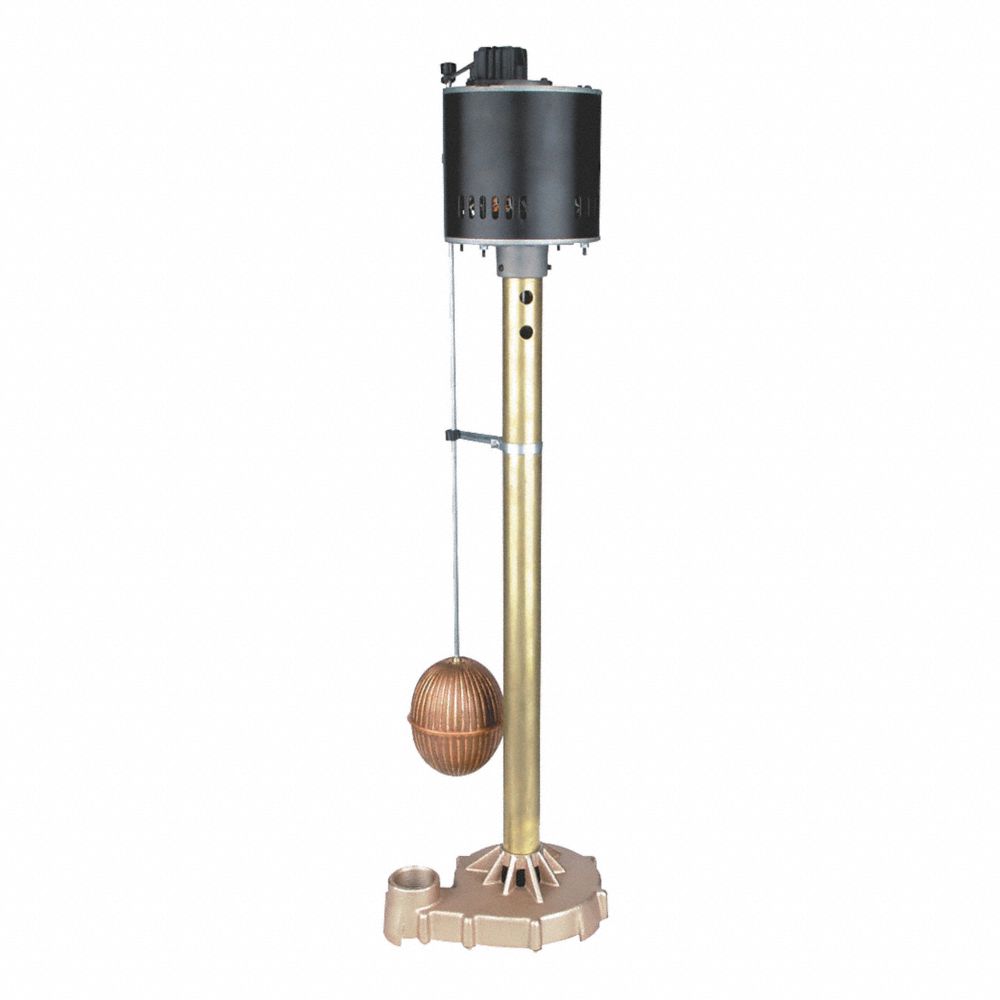

Pump, Sump, 0.50 HP

Pump, Sump, 0.50 HP

Regular price $617.49
Regular price $617.49 Sale price $617.49
Sale Sold out
Shipping calculated at checkout.

Sump Pump, HP 1/2 hp, Rated Voltage 120V AC, Hz 60, Phase - Pumps 1, Amps 5.0 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 5 in, On Point 13 in-15 in, Body Material Cast Bronze, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 60.0 gpm, Flow Rate @ 10 Ft. of Head 48.0 gpm, Flow Rate @ 15 Ft. of Head 33.0 gpm, Flow Rate @ 20 Ft. of Head 10.0 gpm, Max. Diameter Solids 3/8 in, Min. Sump Pit Dia. 18 in, Body Dia. 12 in, Overall Height 30 1/2 in

Specifications

  • Mfr #: 4KU63
  • HP: 1/2 hp
  • Switch Actuation: Vertical Float
  • Switch Electrical Connection: Integral
  • Body Material: Cast Bronze
  • Cord Length: 10 ft
  • Impeller Material: Stainless Steel
  • Phase - Pumps: 1
  • Flow Rate @ 10 Ft. of Head: 48.0 gpm
  • Base to Motor Height: 25"
  • Motor Type: PSC
  • Switch Type: Vertical
  • Impeller Material - Pumps: Stainless Steel
  • Max. Liquid Temp.: 140 Degrees F
  • Outlet: 1-1/4
  • Height: 30-1/2"
  • Discharge NPT: 1-1/4" F
  • Input Phase AC: 1
  • Cord Size: 18/3
  • Amps: 5.0 A
  • Cord Length - Pumps: 10 ft.
  • Item - Sump Pumps: Non-Submersible Sump Pump
  • GPM of Water @ 10 Ft. of Head: 48
  • Column Material: Brass
  • GPM of Water @ 15 Ft. of Head: 33
  • Base Material: Stainless Steel
  • GPM of Water @ 5 Ft. of Head: 60
  • Off Point: 5 in
  • Amps - Pumps: 5.00
  • Float Material: Copper
  • Phase: single
  • Bearing Type: Dual Ball
  • Max. Dia. Solids: 3/8"
  • Pump HP: 1/2
  • Insulation Class: B
  • Voltage: 115
  • Cord Type: SJT
  • Hz: 60
  • Duty: Intermittent
  • Min. Sump Pit Dia.: 18 in
  • Pump Body Material: Cast Bronze
  • Item: Sump Pump
  • Diameter: 12"
  • Voltage - Pumps: 120VAC
  • GPM of Water @ 20 Ft. of Head: 10
  • Base to Motor Height (In.): 25
  • Thermal Protection: Automatic
  • Max. Diameter Solids: 3/8 in
  • On Point: 13 in-15 in
  • For Use With: Water Only
  • Max. Head: 22 ft
  • Motor RPM: 1750
  • Max. Head - Pumps: 22 ft.
  • Switch Type - Pumps: Vertical
  • Agency Compliance: cCSAus
  • Housing Material: Cast Bronze
  • Body Dia.: 12 in
  • Overall Height: 30 1/2 in
  • RPM: 1,750 RPM
  • Discharge Dia.: 1 1/4 in
  • Flow Rate @ 20 Ft. of Head: 10.0 gpm
  • Alarm Included: No
  • Rated Voltage: 120V AC
  • Discharge Gender: Female
  • Flow Rate @ 15 Ft. of Head: 33.0 gpm
  • Discharge Standard: NPT
  • NEC Cord Designation: SJT
  • Discharge: 1-1/4 in FNPT
  • Duty Cycle: Intermittent
  • Flow Rate @ 5 Ft. of Head: 60.0 gpm
  • Basket Dia.: 25 in
  • Basin Dia.: 25 in
