DAYTON

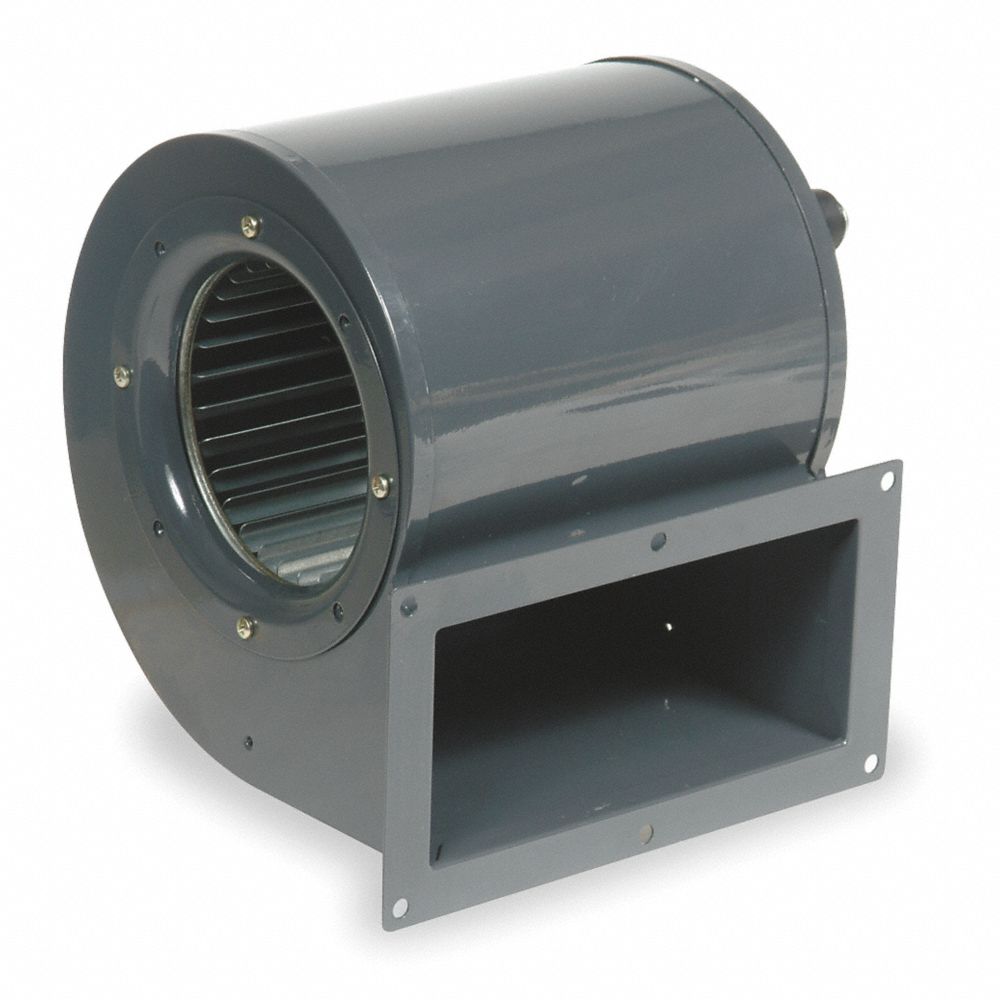

Rectangular OEM Blower, 1600 RPM, 1 Phase, Direct, Rolled Steel

Rectangular OEM Blower, 1600 RPM, 1 Phase, Direct, Rolled Steel

Regular price $154.69
Regular price $154.69 Sale price $154.69
Sale Sold out
Shipping calculated at checkout.

Keep your industrial equipment running smoothly with this OEM Blower. This blower is a direct drive, 1 phase blower that is efficient and easy to use. It has a forward curved wheel. It has a rolled steel housing with lasting durability, a ball bearing and rectangular blower outlet. This blower is designed to be mounted in any position, and offers a simple, efficient design that provides the performance you need.

Specifications

  • Mfr #: 1TDR9
  • CFM @ 0.100-In. SP: 425
  • Drive Type: Direct
  • Full Load Amps: 1.28
  • Housing Material: Rolled Steel
  • Includes: Discharge Mounting Flange
  • Inlet Dia.: 4 9/16 in
  • Overall Height: 9 3/8 in
  • Overall Width: 9 3/16 in
  • Phase: 1
  • Blower Item: OEM Specialty Blower
  • Blower Outlet Shape: Rectangular
  • With Flange: Yes
  • Blower Wheel Diameter: 5 1/8 in
  • Blower Motor Type: Permanent Split Capacitor
  • Blower Voltage: 115V AC
  • Blower Thermal Protection: Auto
  • Blower Conduit Box: No
  • CFM @ 0.000-In. SP: 463
  • Outlet Width: 7 13/16 in

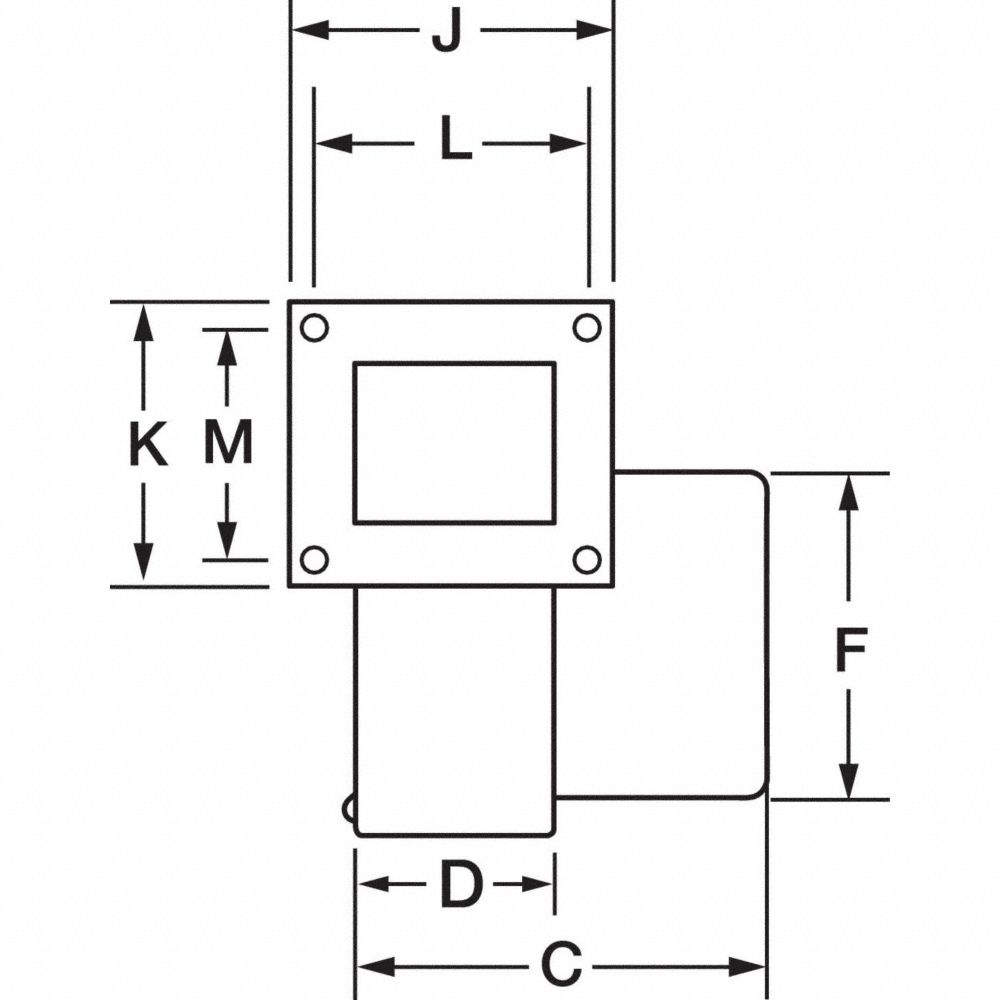

  • Dimension D: 8 3/16 in
  • Max. Ambient Temp.: 104 Degrees F
  • Dimension E: 9 3/8 in
  • CFM @ 1.200-In. SP: -
  • CFM @ 2.000-In. SP: -
  • CFM @ 0.500-In. SP: 161
  • CFM @ 0.800-In. SP: -
  • Wheel Type: Forward Curve
  • CFM @ 0.200-In. SP: 388
  • Mounting Position: All Position
  • CFM @ 0.300-In. SP: 338
  • CFM @ 0.700-In. SP: -
  • Housing Color: Gray
  • Motor Enclosure: Open
  • CFM @ 1.000-In. SP: -
  • Replaces: 4C448

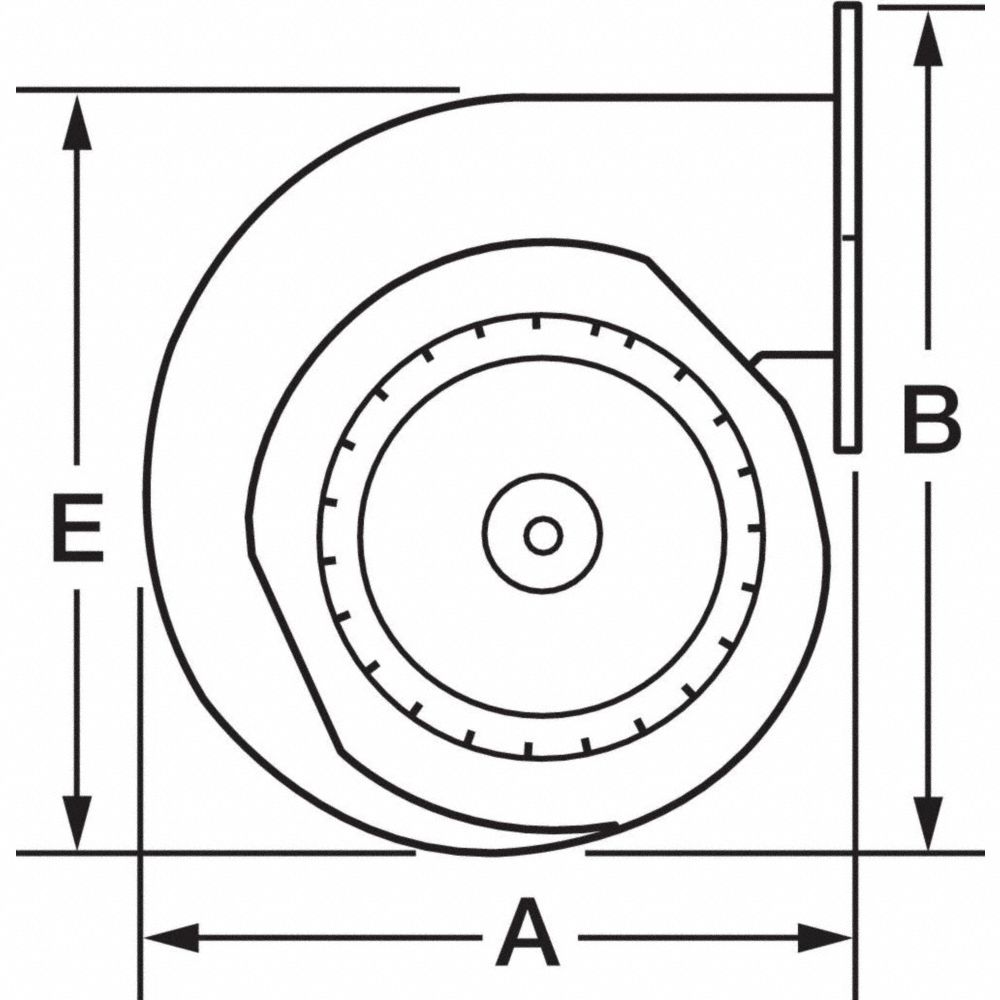

  • Dimension A: 8 9/16 in
  • Outlet Height: 3 1/2 in
  • Housing Finish: Enamel
  • Motor Insulation: Class B
  • Dimension J: 9 7/16 in
  • CFM @ 0.600-In. SP: 50
  • Dimension B: 10 1/2 in
  • RPM: 1600
  • Agency Compliance: CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
  • Item: OEM Blower
  • Lead Length: 13 in
  • Overall Depth: 8 9/16 in
  • Bearing Type: Ball
  • Dimension F: 3 5/16 in
  • CFM @ 0.900-In. SP: -
  • Dimension C: 9 3/16 in
  • CFM @ 0.400-In. SP: 250
  • Hz: 50/60
  • Dimension K: 5 in
  • Max. Inlet Temp.: 104 Degrees F
  • Dimension M: 4 3/8 in
  • Dimension L: 8 13/16 in
  • Blower Wheel Width: 7 in
  • CFM @ 1.600-In. SP: -
