DAYTON

Round OEM Blower, 3016 RPM, 1 Phase, Direct, Rolled Steel

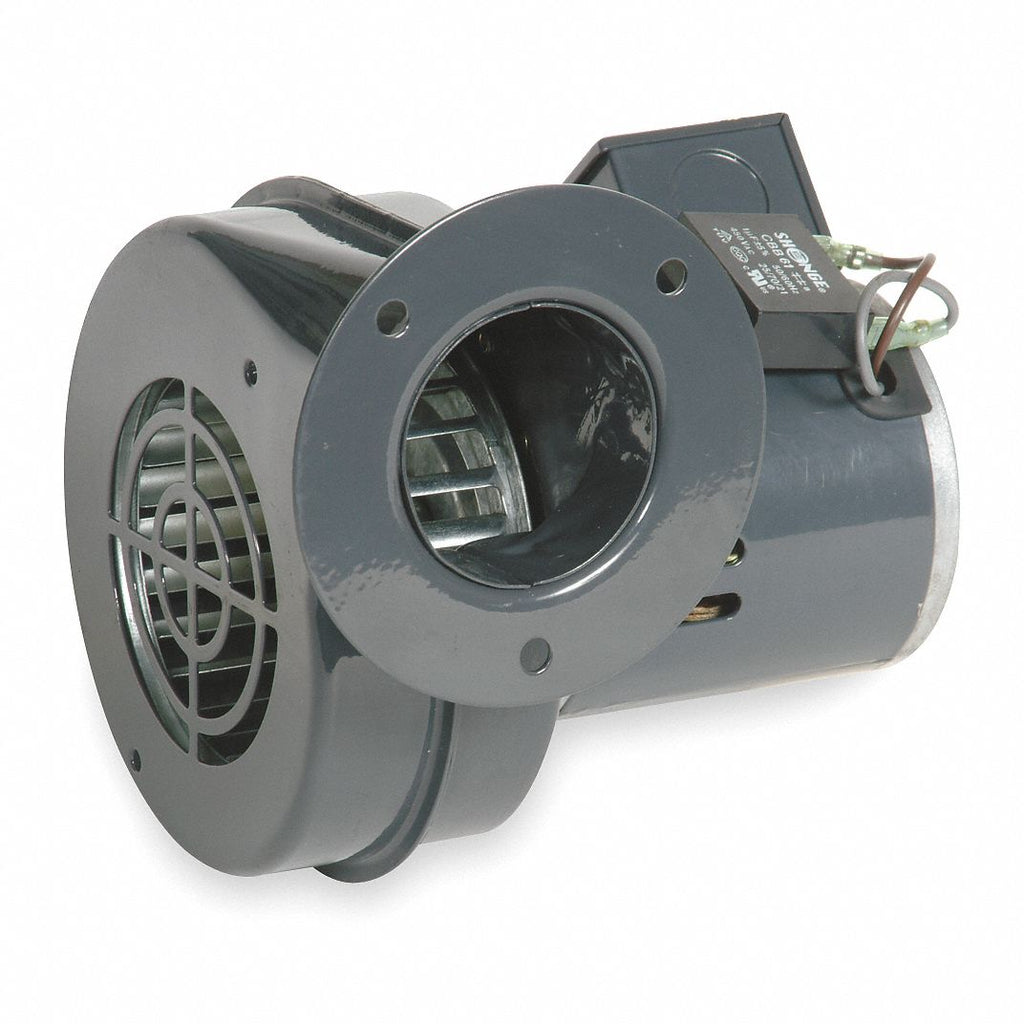

Round OEM Blower, 3016 RPM, 1 Phase, Direct, Rolled Steel

Regular price $90.73
Regular price $90.73 Sale price $90.73
Sale Sold out
Shipping calculated at checkout.

OEM Blower, Blower Outlet Shape Round, Yes, Blower Wheel Diameter 3 15/16 in, Blower Wheel Width 1 7/8 in, Blower Voltage 115V AC, Blower Motor Type Permanent Split Capacitor, Blower Thermal Protection Auto, Blower Conduit Box Yes, CFM @ 0.000-In. SP 75, 50/60 Hz, 1 Phase, Full Load Amps 0.45, RPM 3016, Max. Inlet Temp. 104 Degrees F, Inlet Dia. 3 1/8 in, Overall Height 5 3/4 in, Overall Width 6 1/4 in, Overall Depth 6 7/16 in, Includes Discharge Mounting Flange


Specifications

  • Mfr #: 1TDP3
  • CFM @ 0.100-In. SP: 71
  • Drive Type: Direct
  • Full Load Amps: 0.45
  • Housing Material: Rolled Steel
  • Includes: Discharge Mounting Flange
  • Inlet Dia.: 3 1/8 in
  • Overall Height: 5 3/4 in
  • Overall Width: 6 1/4 in
  • Phase: 1
  • Blower Item: OEM Specialty Blower
  • Blower Outlet Shape: Round
  • With Flange: Yes
  • Blower Wheel Diameter: 3 15/16 in
  • Blower Motor Type: Permanent Split Capacitor
  • Blower Voltage: 115V AC
  • Blower Thermal Protection: Auto
  • Blower Conduit Box: Yes
  • Replaces: 4C443
  • CFM @ 0.900-In. SP: -
  • CFM @ 0.600-In. SP: -
  • Housing Color: Gray
  • Dimension E: 5 3/4 in
  • Mounting Position: All Position
  • CFM @ 0.700-In. SP: -
  • CFM @ 0.300-In. SP: 66
  • Dimension B: 6 1/2 in
  • Outlet Dia.: 2 1/8 in
  • CFM @ 2.000-In. SP: -
  • CFM @ 0.500-In. SP: 56
  • Dimension D: 2 1/4 in
  • CFM @ 0.800-In. SP: -
  • Agency Compliance: CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
  • Housing Finish: Enamel
  • Bearing Type: Ball
  • Motor Insulation: Class B
  • Hz: 50/60
  • Item: OEM Blower
  • Dimension J: 4 1/16 in
  • CFM @ 1.000-In. SP: -
  • CFM @ 0.000-In. SP: 75
  • CFM @ 0.400-In. SP: 61
  • Max. Ambient Temp.: 104 Degrees F
  • CFM @ 1.200-In. SP: -
  • Dimension A: 6 7/16 in
  • Lead Length: 13 in
  • Max. Inlet Temp.: 104 Degrees F
  • Dimension L: 2 3/8 in
  • CFM @ 1.600-In. SP: -
  • RPM: 3016
  • Dimension C: 6 1/4 in
  • Wheel Type: Forward Curve
  • Motor Enclosure: Open
  • Blower Wheel Width: 1 7/8 in
  • Dimension M: 2 13/16 in
  • Overall Depth: 6 7/16 in
  • CFM @ 0.200-In. SP: 68
  • Dimension F: 2 1/2 in
