DAYTON

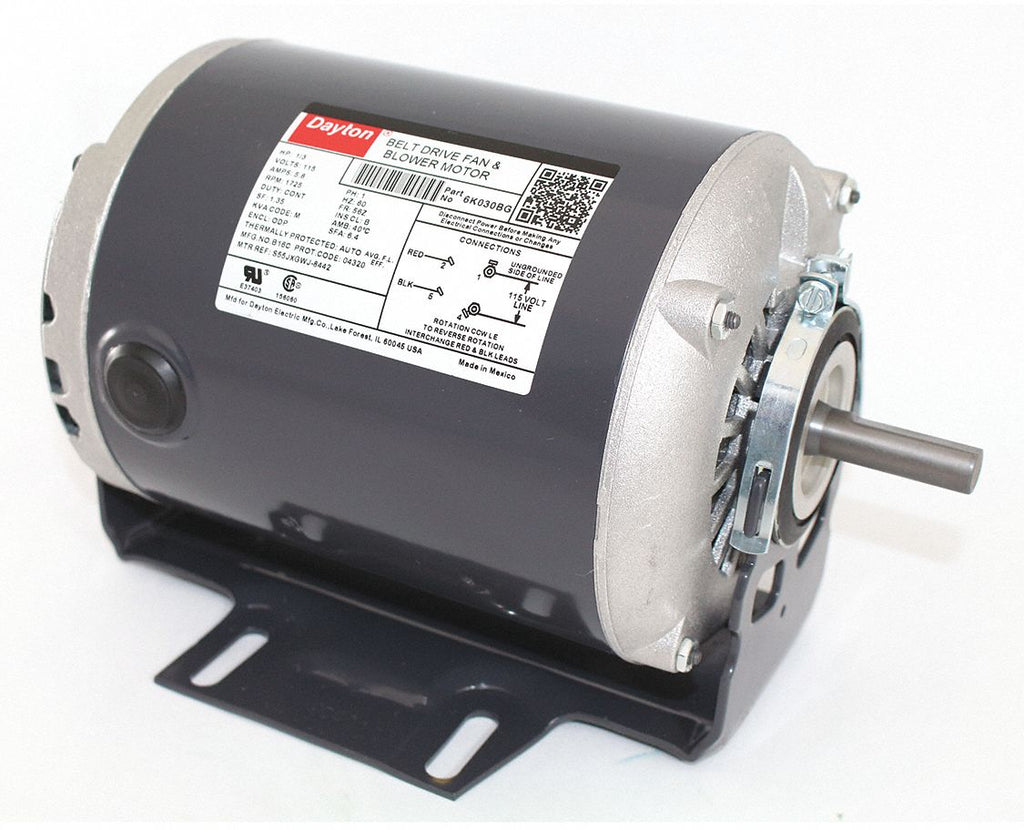

Split-Phase Belt Drive Motor, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM

Split-Phase Belt Drive Motor, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725 Nameplate RPM

$217.09
$217.09 $217.09
Sale Sold out
Shipping calculated at checkout.
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.8 Full Load Amps, 56Z Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in, Shaft Length 1 1/2 in


Specifications

  • Mfr #: 6K030
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 56Z
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.35
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Frame Material: Rolled Steel
  • Frame Material: Steel
  • Shaft Length: 1 1/2 in
  • Motor Bearings: Ball
  • Hz: 60
  • Motor Mounting Position: All Angle
  • Overall Length: 9 15/16 in
  • Max. Ambient Temp.: 40 Degrees C
  • Resilient Ring Dia.: 2 1/2 in
  • Nominal Efficiency: 65 %
  • Motor Shaft Design: Flat
  • Full Load Amps: 5.8
  • Includes: 1/2 in to 5/8 in Bushing
  • Footnotes: 50
  • Duty: Continuous
  • Ins. Class: B
  • Length Less Shaft: 8 7/16 in
  • Motor Shaft Rotation: CW/CCW
  • Body Dia.: 5 5/8 in
  • Standards: UL Component Recognition (E37403) and CSA Certification (258501)
  • Ring to Ring Center: 7 5/8 in
  • Duty Cycle: Continuous
