Description

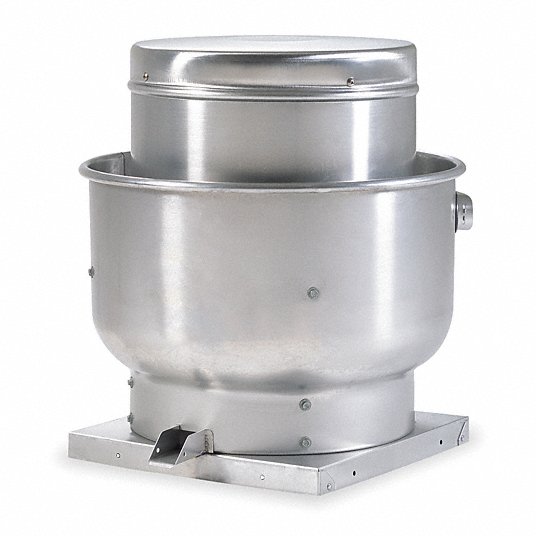

Upblast Ventilator, Drive Type - Roof Ventilators Direct Drive, Drive Package With Motor Included Yes, Base Size - Roof Ventilators 19 in x 19 in, Duty Rating - Roof Ventilators Standard, Voltage - Roof Ventilators 115V AC, Motor HP - Roof Ventilators 1/60 hp, Mounting Location - Roof Ventilators Roof, Number of Speeds 3, Wheel Dia. 8 1/4 in, CFM @ 0.000-In. SP 133/165/197, Sones @ 0.125-In. SP @ 5 Ft. 1.7/2.5/3.9, Assembled, 1 Phase, Base Height 1 3/4 in
Specifications
- Mfr #: 5DVN6
- Item - Roof Ventilators: Upblast Ventilator
- Drive Package With Motor Included: Yes
- Duty Rating - Roof Ventilators: Standard
- Drive Type - Roof Ventilators: Direct Drive
- Mounting Location - Roof Ventilators: Roof
- Number of Speeds: 3
- Voltage - Roof Ventilators: 115V AC
- Motor HP - Roof Ventilators: 1/60 hp
- Base Size - Roof Ventilators: 19 in x 19 in
- CFM @ 0.000-In. SP: 133/165/197
- CFM @ 0.625-In. SP: -/-/-
- Base Square Size - Roof Ventilators: 19" x 19"
- Base Length: 19"
- Recommended Damper Stock No.: -
- Shaft Dia. Wheel End: 5/16 in
- Phase: 1
- Speed Controllable: Yes
- CFM @ 0.875-In. SP: -/-/-
- Recommended Damper Size (In.): -
- Mounting Location: Roof
- Wheel Dia.: 8 1/4 in
- Wheel Material: Plastic
- Base Width: 19"

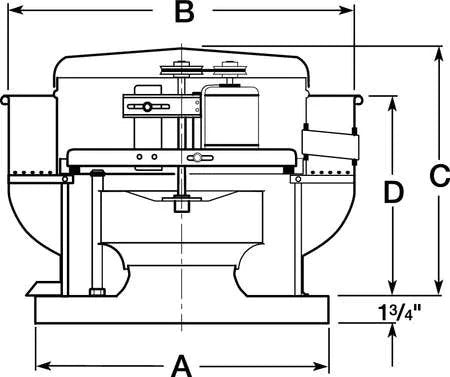

- Dimension B: 18 3/8 in
- Recommended 8 In. Fixed Curb Item No.: 4HX38

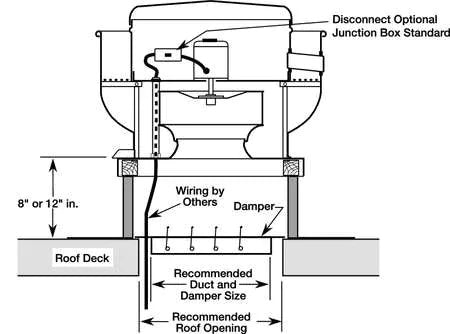

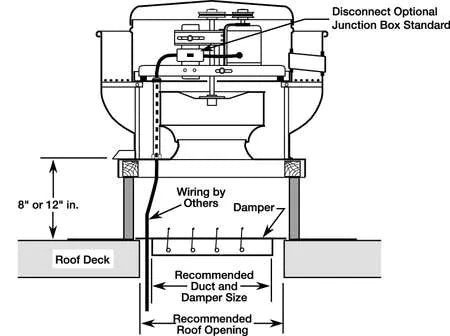

- Requires: Roof Curb for New Installation
- Sones @ 0.125-In. SP @ 5 Ft.: 1.7/2.5/3.9
- Recommended 12 In. Fixed Curb Item No.: 2RB75
- Dimension C: 13 1/2 in
- CFM @ 1.250-In. SP: -/-/-
- Dimension A: 17 1/4 in
- Base Height: 1 3/4 in
- RPM: 1050/1300/1550
- Adj. UL 762 Kitchen Roof Curb Stock No.: -
- Motor HP: 1/60
- CFM @ 2.000-In. SP: -
- Max. Operating Amps: 0.68/0.77/1.00
- Drive Type: Direct-Drive
- CFM @ 2.500-In. SP: -
- CFM @ 0.750-In. SP: -/-/-
- Drive Package Included: Yes
- Adj. 6 3/8"H Roof Curb Stock No.: 4c453
- Motor Voltage: 115
- Overall Dia.: 18 3/8 in
- CFM @ 2.250-In. SP: -
- Max. Inlet Temp.: 130 Degrees
- CFM @ 2.75-In. SP: -
- Standards: AMCA Sound and Air, CSA Certified Motor, UL/cUL 705
- CFM @ 0.375-In. SP: -/-/-
- Housing Material: Spun Aluminum
- Fixed UL 762 Kitchen Roof Curb Stock No.: -
- CFM @ 1.000-In. SP: -/-/-
- CFM @ 1.75-In. SP: -
- Sones @ 0.500-In. SP @ 5 Ft.: -/-/-
- CFM @ 1.500-In. SP: -/-/-
- CFM @ 0.500-In. SP: -/-/-
- Dimension D: 11 3/8 in
- CFM @ 0.125-In. SP: 81/126/164
- Assembled/Unassembled: Assembled
- Includes: NEMA 1 Junction Box
- Sones @ 0.250-In. SP @ 5 Ft.: -/2.5/4.0
- Overall Height: 13 1/2 in
- Adj. 12 3/8"H Roof Curb Stock No.: 2ZV82
- Hz: 60
- Speed Control: 48C172
- CFM @ 0.250-In. SP: -/70/128
- Item: Upblast Ventilator
- Max. BHP: 0.01/0.01/0.02
