Description

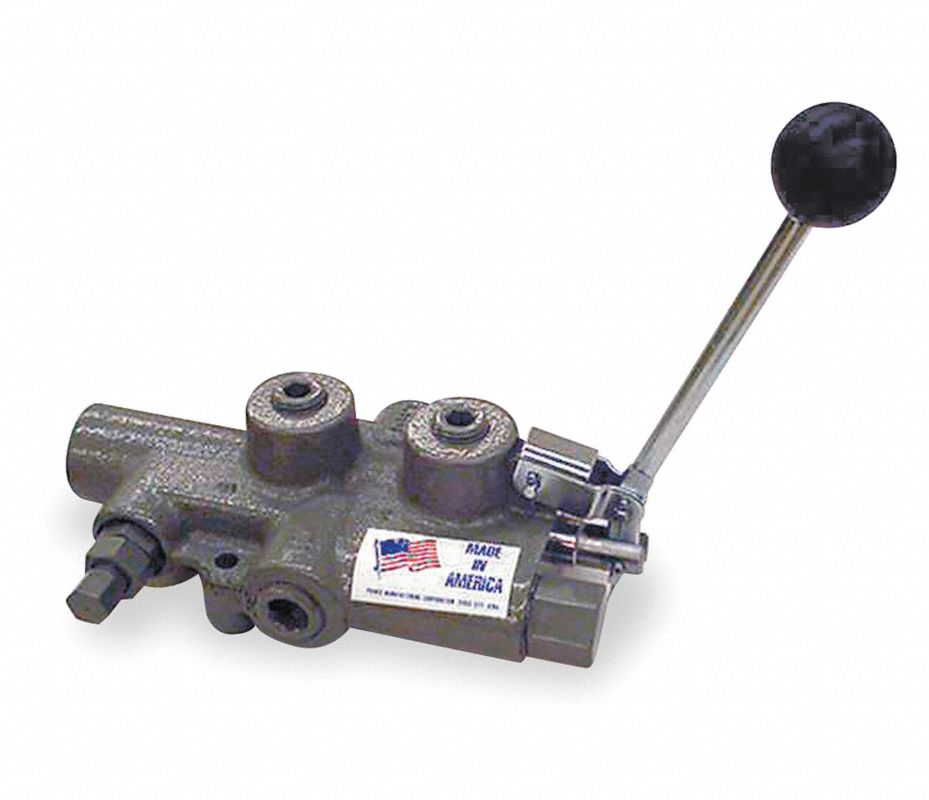

Hydraulic Directional Valve, 1 Number of Spools - Hydraulic Valves, Valve Ways and Positions 4-Way/4-Position, Spool Action Spring Center to Neutral, 4th Position Detent, Max. Flow - Hydraulic Valves 25.0 gpm, Inlet Port Size - Hydraulic Valves 3/4 in NPT, Outlet Port Size - Hydraulic Valves 3/4 in NPT, Max. Pressure - Hydraulic Valves 2,750 psi, Tandem Center, Work Port Size - Hydraulic Valves 1/2 in NPT, Relief Valve Range (PSI) 1000 to 2750
Specifications
- Mfr #: LS3000-1
- Valve Type - Hydraulic Valves: Hydraulic Directional Control Valve
- Number of Spools - Hydraulic Valves: 1
- Valve Ways and Positions: 4-Way/4-Position
- Spool Action: Spring Center to Neutral, 4th Position Detent
- Max. Flow - Hydraulic Valves: 25.0 gpm
- Inlet Port Size - Hydraulic Valves: 3/4 in NPT
- Outlet Port Size - Hydraulic Valves: 3/4 in NPT
- Max. Pressure - Hydraulic Valves: 2,750 psi
- Width (In.): 5 in
- Length (In.): 12 1/2 in
- Spools: 1
- Height (In.): 2 15/16 in
- Relief Valve Range (PSI): 1000 to 2750
- Inlet/Outlet NPT (In.): 3/4
- Type: Monoblock
- Center: Tandem
- NPT Port (In.): 1/2
- Ways: 4
- Max. Pressure (PSI): 2750
- Work Port Size - Hydraulic Valves: 1/2 in NPT
- Factory Preset Relief Valve Setting (PSI): 2250 psi @ 3 GPM
- Item: Hydraulic Directional Valve
- For Use With: Log Splitters
- Adjustable PSI Range: 1000 to 2750
- Flow Capacity (GPM): 25
